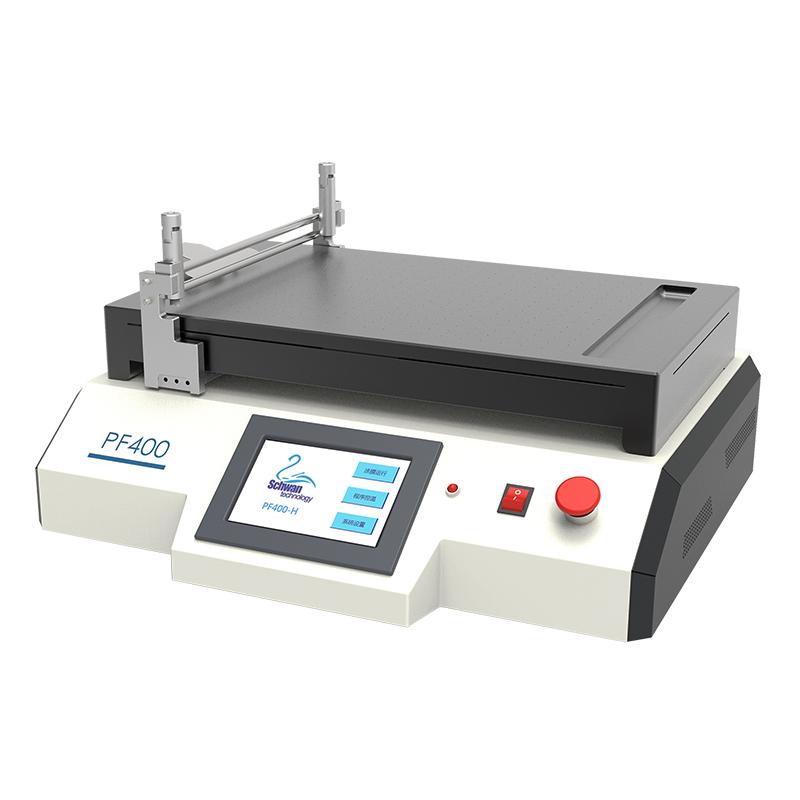

LEBO PF400-H Film Applicator Vacuum adsorption + heating

PF400-H

Film Applicator

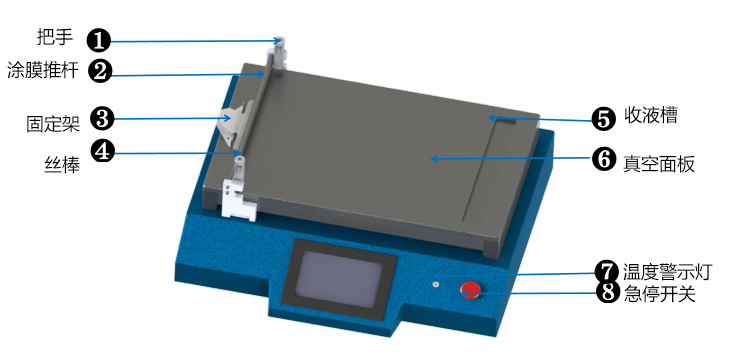

Vacuum adsorption + heating two-in-one, Drawdown Vacuum Plate size 540x345mm, high-precision PID temperature control, heating up to 200 ℃, uniformity of 1%, hard anodic oxidation aluminum panel, with waste glue collection tank, heavy base device to reduce vibration.

The PF400-H heated coater is used to prepare a uniform coating film, as the factor influencing the coating film is the shear raterate and weight added to the construction tool. The device uses a precisely controlled wire rod or applicator to selectMove back and forth at a fixed speed. Since the test strip is flatly adsorbed on the flat plate and the shear rate and application of the film are appliedThe force applied to the tool remains constant, which greatly improves the reproducibility of the coating film. At the same time, the aluminum alloy mirror is grindedGrinding flat panels can ensure that the panels are flat.

Features

• Hard anodized aluminum panels for more solid and abrasion resistance

• With waste glue collection tank, it is convenient to collect excess residual glue

• Standard permeable vacuum platform with vacuum adsorption function on the surface

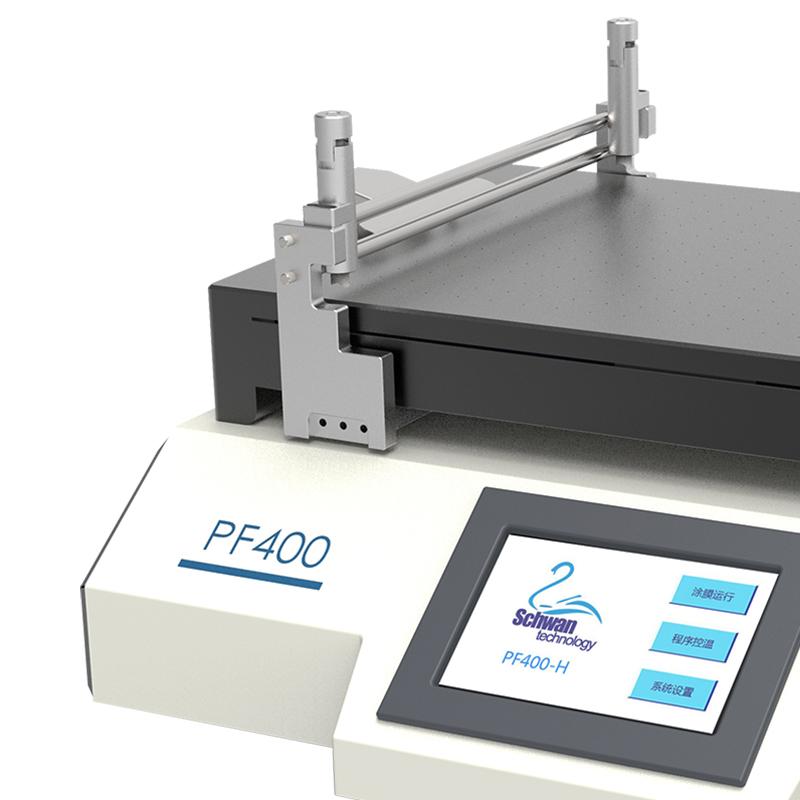

• 2-in-1 clamp, used separately with adjustable scraper or wire bar

• The coating film size can be A3, A4 or user-defined size, which can be flexibly selected

• The gluing speed and return speed can be set arbitrarily to meet the diversity of the process

• Using high-precision PID temperature control, the panel temperature is controllable and adjustable, and the temperature control accuracy is high

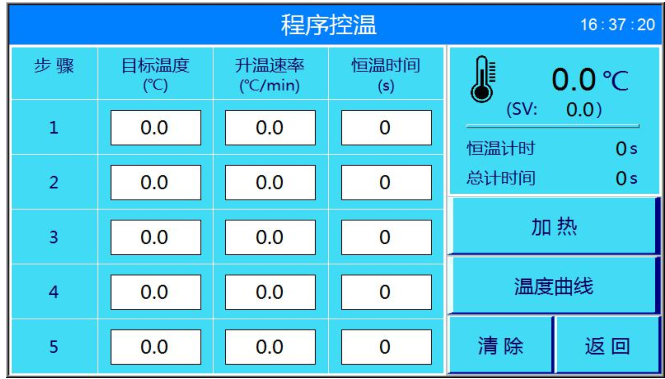

• Linear temperature control heating can be carried out, the heating rate can be set, and the temperature control step is 5 steps

• The maximum heating temperature is up to 200°C, with good thermal insulation design and high temperature uniformity

• The panels and fixtures are designed as heavy-based devices to reduce vibration and prepare high-quality samples

• Silent bearings and high-torque motors ensure a smooth and reliable coating process

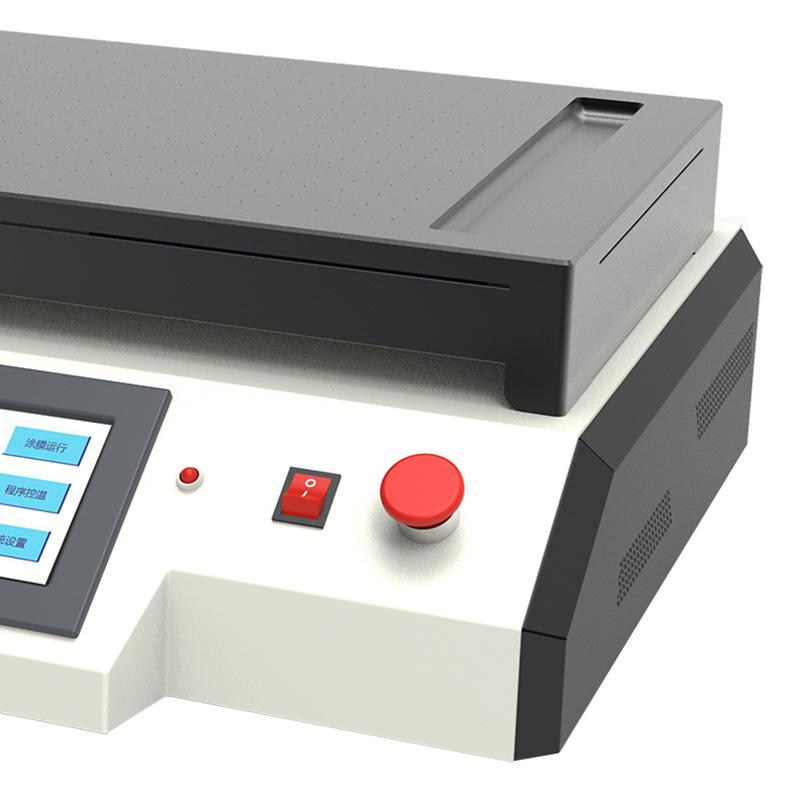

• Seven-inch full-color touchscreen operation with high temperature indication and emergency stop switch

• It can be used with a range of Film Applicators and wire rods on the market

An external Vacuum Pump is required for vacuum adsorption. The PF400 is supplied with a 1-metre transparent vacuumTube. Connect one end of the vacuum tube to the vacuum tube connection on the back of the PF400 and the other end to your vacuumPump inlet. When using the PF400 Film Applicator, turn on the Vacuum Pump and check if the vacuum is normal.

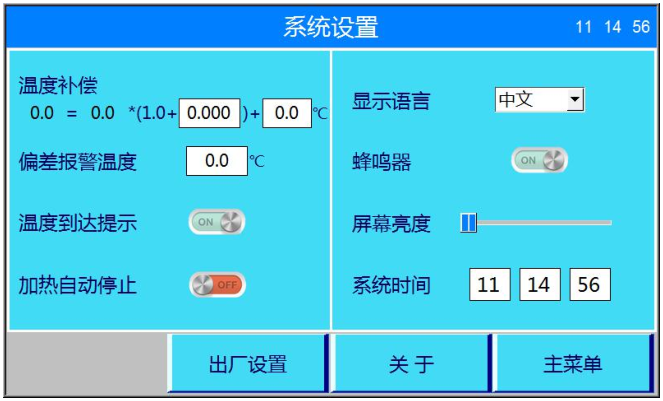

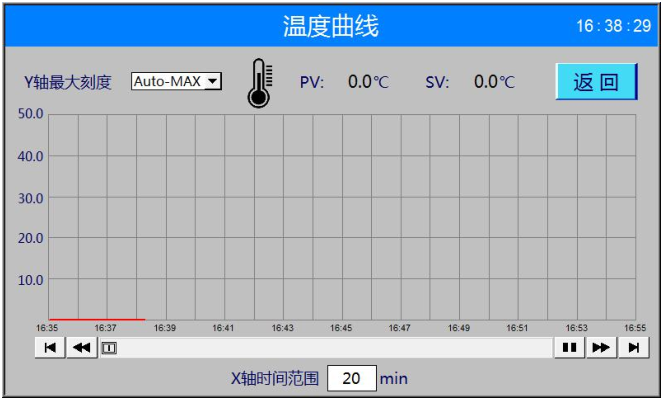

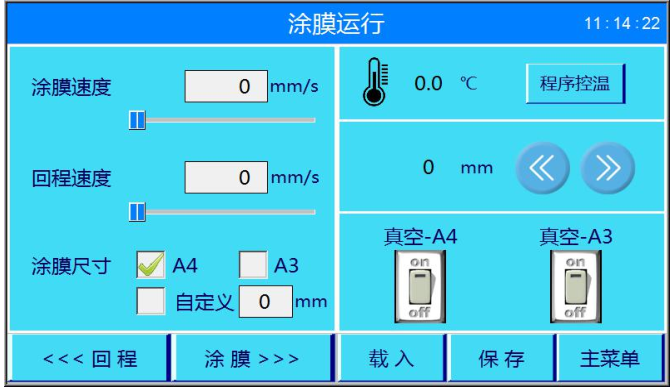

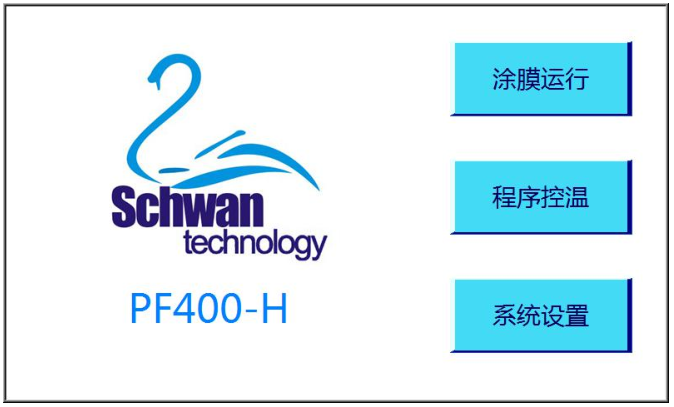

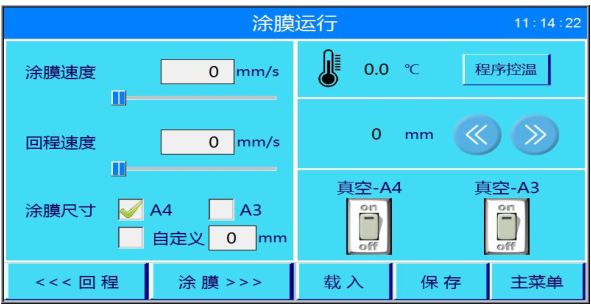

Description of the main interface

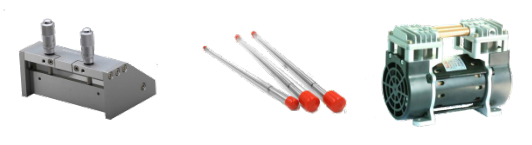

Attachment selection

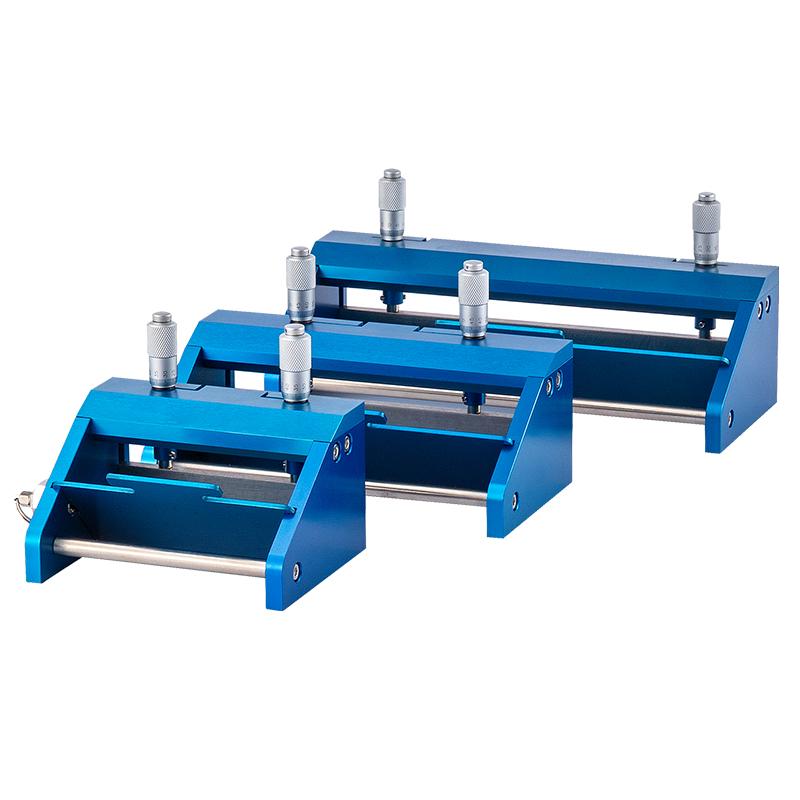

There are four specifications of adjustable Film Applicator to choose from, wet film range 0-3500μm, film width specification 55mm, 100mm, 150mm, 200mm four options. Other specifications need to be customized.

The length of the wire bar applicator is 400mm, and the wet film thickness is available in a variety of specifications (range from 6 to 200 μm).

A VPC200 Vacuum Pump is supplied as standard.

Optional

Packing list：PF400-H device X1, touch screen pen X1, film applicator X1, power cord X1, product manual X1, certificate X1, warranty card X1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
