DAKOTA ZX-3 Ultrasonic Thickness Gauge

DAKOTA ZX-3 Ultrasonic Thickness Gauge Measurement range 1.0~152mm (steel), Probe Frequency 5MHz, continuous use time up to 45 hours, ZX-3 Ultrasonic Thickness Gauge Pulse, Repeability Frequency 200Hz, display refresh rate 10Hz.
Model：
Contact
Details SPEC CAT OI
Similar products

DAKOTA ZX-3 Ultrasonic Thickness GaugeSPEC

DAKOTA ZX-3 Ultrasonic Thickness GaugeDetails

DAKOTA ZX-3 Ultrasonic Thickness GaugePacking list

SKU
NB029545
Measurement range
1.0~152Mm (steel)
Probe Frequency
5MHz
Probe model
PT-102-2000 Standard Probe
Probe diameter
Φ6.3mm
Probe line length
1.2m
Display resolution
0.01mm/0.001IN
Display
Large screen multi-function low temperature LCD display
backlight function
Off/normally open/automatic three Operating Modes, luminance has low/medium/high three, gear adjustable
scanning method
100 point measurements per second to capture the thinnest values during scanning
unit system
mm/inch
Speed of sound
305~18542m/s
zero
Manual or automatic zeroing
Gain range
40~52dB (step spacing 3dB)
Pulse, repeability Frequency
200Hz
Display refresh rate
10Hz
keyboard
9-Key waterproof, oil-resistant keyboard
Environmental temperature
-30℃~75℃
Host size
63.5*131.3*31.5mm
Weight
312G (including battery)
Applicable standard
NIST & MIL-STD-4562A
Protection level
IP65
Environmental temperature
-30~75℃
Power Supply
2 AA batteries, continuous use time up to 45 hours (the use time of different battery types will vary). When the battery power is low, the display will display a low battery sign. Automatic shutdown function (automatic shutdown after 5 minutes of no operation).
ZX-3
Ultrasonic Thickness Gauge

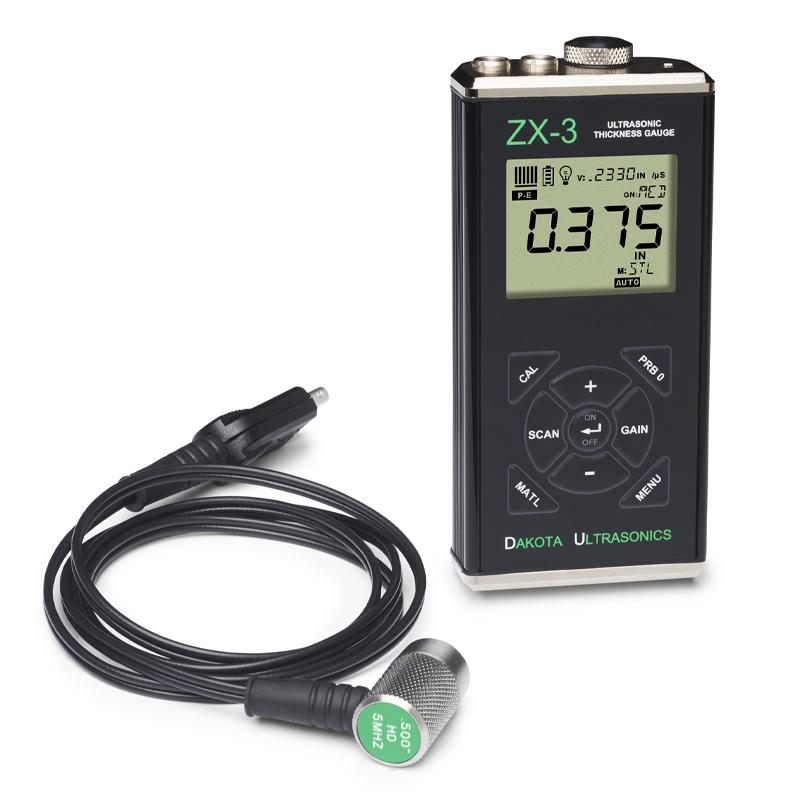

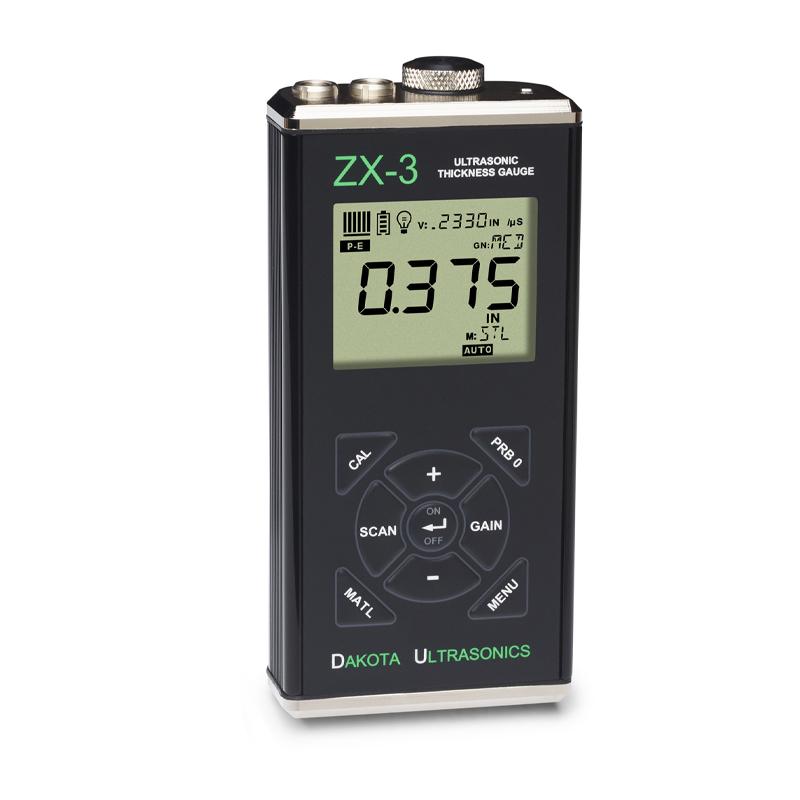

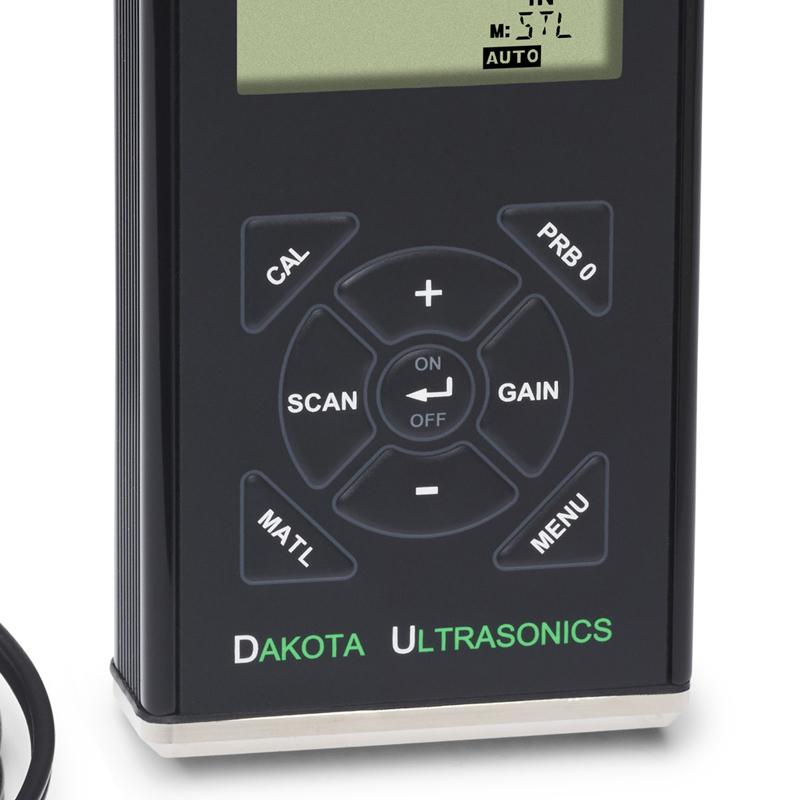

DAKOTA ZX-3 Ultrasonic Thickness Gauge Picture

The ZX Series Thickness Gauges provide a performance solution that can withstand the harshest industrial conditions. The features included in the ZX Series provide high-quality tools that meet or exceed the requirements of your application

Features

  • Technical support: 120MHz FPGA timing.

  • 150 volt square wave pulse generator.

  • Pulse-echo measurements.

  • Adjustable gain (40-52dB) in 3dB steps (vlow, low, med, high, vhi).

  • You can choose between manual or automatic zeroing.

  • Dual-element sensor (1-10MHz option)

  • Low-temperature custom LCD display (-22 F/-30C)

  • USB-C connection (ZX-5 series).

  • CDC compatible serial via USB.Optional serial RS232 or Bluetooth module (ZX-5).

  • Data storage: 32 megabit flash memory (ZX-5 DL).

  • IP65 degree of protection.

Probes are optional

    Model  frequency Element diameterDiameter of the wear surface Measuring range illustrate
   PT-102-2000   5.0MHz   6.35mm   9.53mm   1.0～152mm  Standard probes
   PT-101-2000   5.0MHz   4.76mm   6.35mm   1.0～50mm  Small diameter probes
   PT-104-0000   1.0MHz   12.7mm   15.88mm   3.8~50.8mm(Medium Cast Iron)  Cast iron probe
   PT-102-3300   7.5MHz   6.35mm   9.53mm   0.63～152mm  Ultra-thin probe
   PT-104-2000   5.0MHz   12.7mm   15.88mm   1.27～508mm  Extra-thick probe
   PT-042-2000   5.0MHz   6.35mm   9.53mm   1.0～152mm  Standard high-temperature probe up to 340°C
   PT-044-2000   5.0MHz   12.7mm   15.88mm   1.27～508mm  Ultra-thick high-temperature probe up to 340°C
   PT-212-2001   5.0MHz   6.35mm   9.53mm   1.0～152mm  Ultra-high temperature probe up to 480°C
   PT-214-2001   5.0MHz   12.7mm   15.88mm   1.27～508mm  Ultra-thick ultra-high temperature probe up to 480°C


FAQ
QHow thick can this ZX-3 Ultrasonic Thickness Gauge be measured?
A The ZX-3 Ultrasonic Thickness Gauge can detect a minimum thickness of 1mm.
