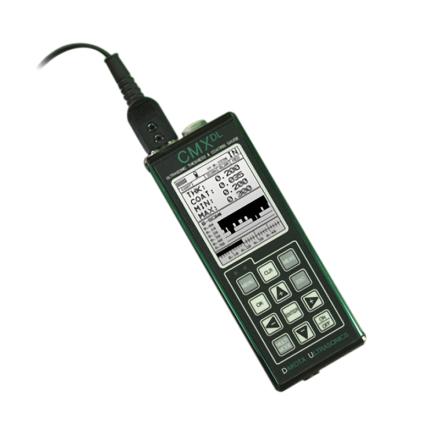

Specifications
| Measurement range | 1.0~152mm |
| Probe Frequency | 5MHz dual crystal probe |
| Probe style | Split probe |
| Probe diameter | Φ6.35mm |
| Probe line length | 4 foot cable |
| Display resolution | +/- .001 inches (0.01 mm) |
| unit system | Imperial and metric systems |
| Calibration method | Single-point and two-point calibrating options for materials and coatings, or select the basic material type |
| Measurement mode | Coatings Off: Pulse Echo PE, coatings: Pulse Echo coating PECT, temperature compensation: Pulse Echo PETP, Pass-through drawing: Echo-Echo (EE), Penetration verification: Echo-Echo verification E-EV, coatings only: coatings CT |
| Measurement speed | 0.0122 to 7300 in./ms (309.88 to 18542 m/s) |
| Storage Capacity | 4 Gb Internal SD Card |
| Display | 1/8 in. VGA gray scale display (240x160 pixels). Viewing area 62x45.7 mm (2.4 x 1.8 in). EL backlight (On/Off/Auto) |
| Operating language | English |
| Interface | Direct USB-C 1.1 PC connection |
| Environmental temperature | -14 ° to 140 ° F (-10 ° to 60 ℃) |
| Power Supply | Three 1.5V alkaline or 1.2V NiCad AA batteries |
| Operating Time | NI-MH and alkaline batteries: gray scale 35 hours, color 12 hours. Nicad: gray scale 10 hours, color 5 hours. |
| Host size | 63.5*165*31.5mm |
| Weight | 13.5 ounces (with battery) |
| keyboard | A membrane switch with 12 tactile keys |
| Certificate type | Factory calibrated to NIST and MIL-STD-45662A |
| probe interface | Lock the "00" LEMO Connector that disconnects quickly |
| pulse generator | Double square wave pulse generator |
| receiver | Dual Receiver Manual or AGC gain control with 110dB range (limited) |
| Timer | Precise TCXO Timing with Single Pulse 100MHz 8-Bit Ultra-Low Power Digitizer |
| Pulse echo mode (PE) | (Pit and defect detection) Measurement range 0.63 to 1219.2 mm |
| Pulse echo coating mode (PECT) | (Material, coating, pit and defect detection): Material: 0.63 to 1219.2 mm. coating: 0.01 to 2.54 mm |
| Pulse echo temperature compensation mode (PETP) | (Pit and defect detection) Automatic temperature compensation - Measurement range 0.63 to 1219.2 mm |
| Echo Mode (EE) | Dimensions through coatings and coatings are 2.54 to 152.4 mm |
| Echo Mode (E-EV) | Dimensions of 1.27 to 25.4 mm through coatings and coatings |
| Only coating mode (CT) | (Coating thickness) 0.0127 to 2.54 mm |
| screen capture | Bitmap graphics capture for quick documentation (.tif) |
| log format | Grid (alphanumeric) sequence (automatic identifier) |
| Automatic shutdown | After 5 minutes of free time |
Packing list
host X1, PT-102-2900 probe, coupling agent X1, No. 5 battery X2, factory certificate x1, Chinese and English instructions x1, instrument case x1.
After-sales instructions
Warranty days: 365 days
