Specifications
| Measurement range | 0.15~ 25.4Mm (steel) |
| Probe Frequency | 15MHz |

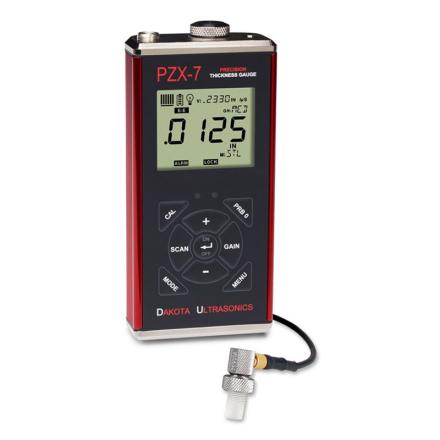

| Probe model | PT-402-5507 Standard Delay Block Probe |
| Probe diameter | Φ6.35mm |
| Probe line length | 1.2m |
| Display resolution | 0.01/0.001mm |
| Display | Multifunctional 7-segment 4-bit semi-digital liquid crystal display |
| backlight function | Off/normally open/automatic three Operating Modes, luminance has low/medium/high three, gear adjustable |
| scanning method | Displays the minimum reading during scanning with 100 Hz Scanning Frequency |
| Difference Mode | Displays the difference between the Measured value and the preset value. |
| Alarm function | Upper and lower limit sound and light alarm |
| VX Speed of sound | For spheroidization measurement |
| unit system | mm/inch |
| Speed of sound | 305~18542m/s |
| zero | Manual or automatic zeroing |
| Gain range | 40~52dB (step spacing 3dB) |
| Pulse, repeability Frequency | 200Hz |
| Display refresh rate | 10Hz |
| keyboard | 9-Key waterproof, oil-resistant keyboard |
| Environmental temperature | -30℃~75℃ |
| Host size | 63.5*131.3*31.5mm |
| Weight | 312G (including battery) |
| Protection level | IP65 |
| Environmental temperature | -30~75℃ |
| Power Supply | 2 AA alkaline batteries |
Packing list
host X1, PT-402-5507 probe, coupling agent X1, No. 5 battery X2, factory certificate x1, Chinese and English instructions x1, instrument case x1.
After-sales instructions
Warranty days: 365 days
[Note] For after-sales services outside the Chinese mainland, if the instrument requires repair, the shipping and possible associated taxes shall be borne by the sender. Generation address of the manual: http://en.nbchao.com/p/29578/Specification.html , which is only used by users who purchase commodities from the NBCHAO.
