TIME3200 (formerly TR200) Portable Surface Roughometer for measurement of asperity of various machined parts

TIME3200 (formerly TR200) Portable Surface Roughometer Measurement parameters Ra, Rz, Ry, Rq, Rt, Rp, Rv, Rmax, R3z, RSk, RS, RSm, Rmr, Measurement range Ra: 0.025~ 12.5μm
Certificate
Contact
Details SPEC OI
Similar products

TIME TIME3200（原TR200） Roughness GaugeSPEC

TIME TIME3200（原TR200） Roughness GaugeDetails

TIME TIME3200（原TR200） Roughness GaugePacking list

SKU
NB000296
Measurement parameters
Ra、Rz、Ry、Rq、Rt、Rp、Rv、Rmax、R3z、RSk、RS、RSm、Rmr
Measurement range
Ra:0.025~12.5μm
Resolution
0.001μm
Error of indication
≤±10％
Indication variability
≤6％
Sampling length
0.25Mm | 0.8mm | 2.5mm (Automatic)
Stroke length
17.5mm/0.7inch
Measurement profile
Asperity
Interface
RS232
Dimensions
140*52*48mm
Product Weight
440g
Operating Conditions
Temperature: 0 ℃ - 40 ℃, Relative Humidity: < 90%
Display range
Ra、Rq：0.005-16μm，Rz、Ry、Rt、Rp、Rv、Rmax、R3z：0.02-160μm,RS、RSm：1mm，Rmr：0-100%（%Rt），Rsk：0-100%
Range
±20μm、±40μm、±80μm
Minimum drive stroke length
1.3mm/0.052inch
Display mode
128 × 64 dot matrix liquid crystal (with backlight)
Basic configuration
Host, TS100 Standard Sensors, Power Adapter, Multi-reticle Model, Sensors Jacket, Bracket
Optional Accessories
TS110 Curved Sensors, TS120 Pinhole Sensors, TS130 Groove Sensors, TS131 Deep Groove Sensors, TA610 measurement platform, TA620 measurement platform, TA630 trimming platform, TA631 trimming platform, TA230 microprinter, lateral adapter rod, connecting rod, V-block, Connector parts, driver connection shaft, PC software
TIME3200（原TR200）
Roughness Gauge
TIME3200 (formerly TR200) Portable Surface Roughometer for measurement of asperity of various machined parts Picture

Introduction

Beijing Times TIME3200 roughness Tester (formerly TR200) is suitable for production sites, roughness Tester can measure the surface roughness of a variety of machined parts, can be connected to the printer output data, and can also communicate with the PC.

Parameters

Measurement parametersRa、Rz、Ry、Rq、Rt、Rp、Rv、Rmax、R3z、RSk、RS、RSm、Rmr
Measuring rangeRa:0.025-12.5μm
Display rangeRa、Rq：0.005-16μm，Rz、Ry、Rt、Rp、Rv、Rmax、R3z：0.02-160μm,RS、RSm：1mm，Rmr：0-100%（%Rt），Rsk：0-100%
Measuring range±20μm、±40μm、±80μm
Highest display resolution0.001μm
Sampling length0.25mm, 0.8mm, 2.5mm, automatic
Measure the stroke length3L-7L(optional)
Maximum drive stroke length17.5mm/0.71inch
Minimum drive stroke length1.3mm/0.052inch
Indication error≤±10％
Variability of the indication≤6％
How it is displayed128×64 dot matrix LCD (with backlight)
Operating EnvironmentTemperature: 0oC- 40oC, Relative Humidity: <90%
weight440g
Dimensions140×52×48mm
Basic configurationMain unit, TS100 standard sensor, power adapter, multi-line template, sensor sheath, bracket
Optional
TS110 Curved Surface Sensor, TS120 Small Bore Sensor, TS130 Groove Sensor, TS131 Deep Groove Sensor, TA610 Measurement Platform, TA620 Measurement Platform, TA630 Trimming Stage, TA631 Trimming Stage, TA230 Micro Printer, Lateral Adapter, Extension Rod, V-Block, Connector Parts, Driver Connecting Shaft, PC Software

Features

● High-precision inductive sensor

● 13 roughness parameters can be measured and displayed

● DSP (Digital Signal Processor) is used for data processing and control, with fast speed and low power consumption

● Mechatronics design, small size, light weight, easy to use

● High quality lithium-ion rechargeable battery, high capacity, no memory effect, continuous working time is more than 20 hours

● Connected to the TA series printer, the measurement parameters and contours can be printed

● Standard RS232 interface, which can communicate with PC

● Curved surface sensor can be used to measure the curved surface, small hole sensor to measure the inner hole wall, and groove/deep groove sensor to measure the roughness of the bottom of the groove or step

● Menu operation mode

● It has the function of graphic display

● Sensor stylus position indication

● Automatic shutdown with storage function

● Multi-language Operating Mode selection

Product images

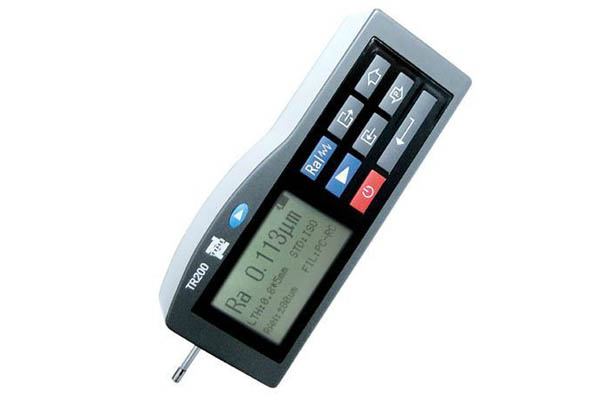

北京时代TR200粗糙度仪实拍图

FAQ
QIs the price listed on the website the final cost for overseas purchases?
ANo, it isn't. This is the ex-factory price of the product in the Chinese Mainland. In addition to this price, buyers from different countries need to account for additional costs such as shipping fees, tariffs, and others. For specific regional quotes, please consult our customer service or fill out a quotation form.
QWhat is the specific process for purchasing the product?
AFirst, please click on the quotation form on the website and fill in detailed information. Our customer service personnel will then send you a quotation based on your specific country and region, confirming payment and delivery methods. Following this, we proceed with contract signing, payment, and shipment. You can then await delivery.
QWhat should I do if the instrument I purchase needs repair?
AAfter-sales repair for overseas instruments is an unavoidable issue. Our repair terms stipulate that the sender is responsible for the shipping and insurance costs incurred for the repair. Repairs within the warranty period are free, while repair costs beyond the warranty period are determined based on the actual situation.
