JENCO 6308CT online conductivity TDS temperature controller

SE
0µS~ 300.0mS, backlit dot matrix LCD display, waterproof housing, 4~ 20mA isolated output, three sets of relay control, RS-485 interface
Model：
Certificate
Contact
Details SPEC OI

JENCO 6308CT Conductivity TDS temperature controllerSPEC

JENCO 6308CT Conductivity TDS temperature controllerDetails

JENCO 6308CT Conductivity TDS temperature controllerPacking list

SKU
NB002962
Conductivity range
0 uS ~ 5.0 mS
EC resolution
0.01 uS ~ 1.0 mS
Conductive Accuracy
0.5% ± 1 LSD
TDS range
0ppm~150.0 ppt
TDS resolution
0.01 ppm to 0.1 ppt
TDS Measurement Accuracy
0.5% ± 1 LSD
Measurement range
-10.0~120℃
Temperature Resolution
0.1℃
Measurement Accuracy
± 0.1℃
reference temperature
1.5℃~ 25.0℃
temperature coefficient
0.0 % ~ 40.0%
Basic electrode constant
0.01,0.1,1.0,10.0
Electrode constant range
Electrode constant +/- 30%
relay output
2 programmable high or low relay conductivity
control type
On/Off
Relay Output/Maximum Load
5Amps at 115 VAC, 2.5amps at 230 VAC
Relay hysteresis width
user programmable
current output
Insulation 4~ 20 mA
Measurement range
Selectable zero, & span
Accuracy
±0.02 mA
Insulation Voltage/maximum load
500 VDC
maximum load
500 ohms
ATC Sensors
Thermistor 10kiloohms (at 25 ℃)
Security, protection
4 code protection
keyboard
Sound feedback
link interface
RS-485
Display
Dot matrix LCD, backlight function
Power Supply
115/230 VAC, 50/60 Hz
Dimensions
1/4 DIN, depth 148mm
Weight
950 gm
6308CT
Conductivity TDS temperature controller
0µS~ 300.0mS, backlit dot matrix LCD display, waterproof housing, 4~ 20mA isolated output, three sets of relay control, RS-485 interface

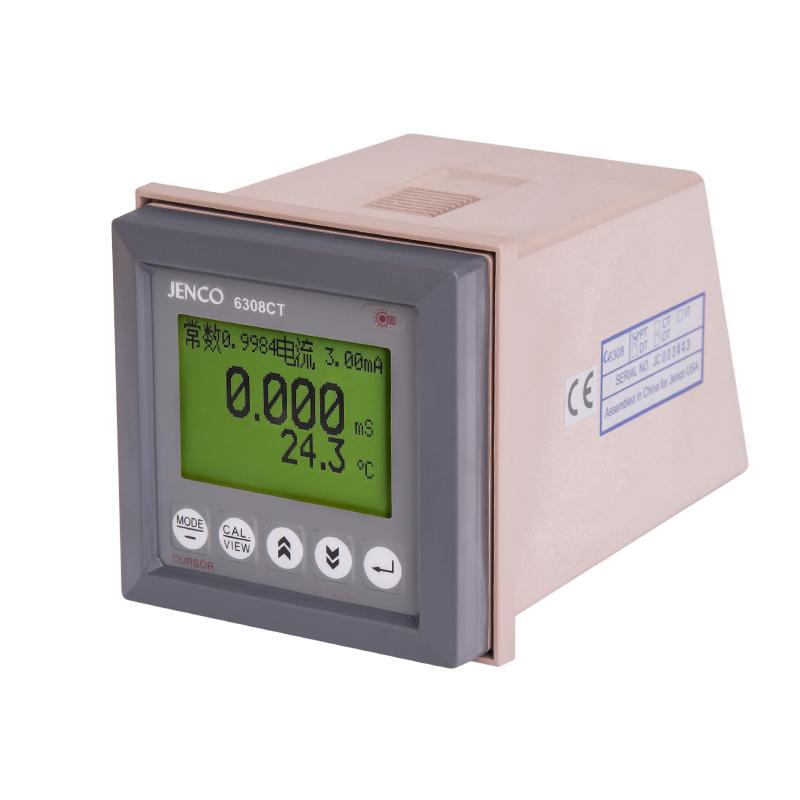

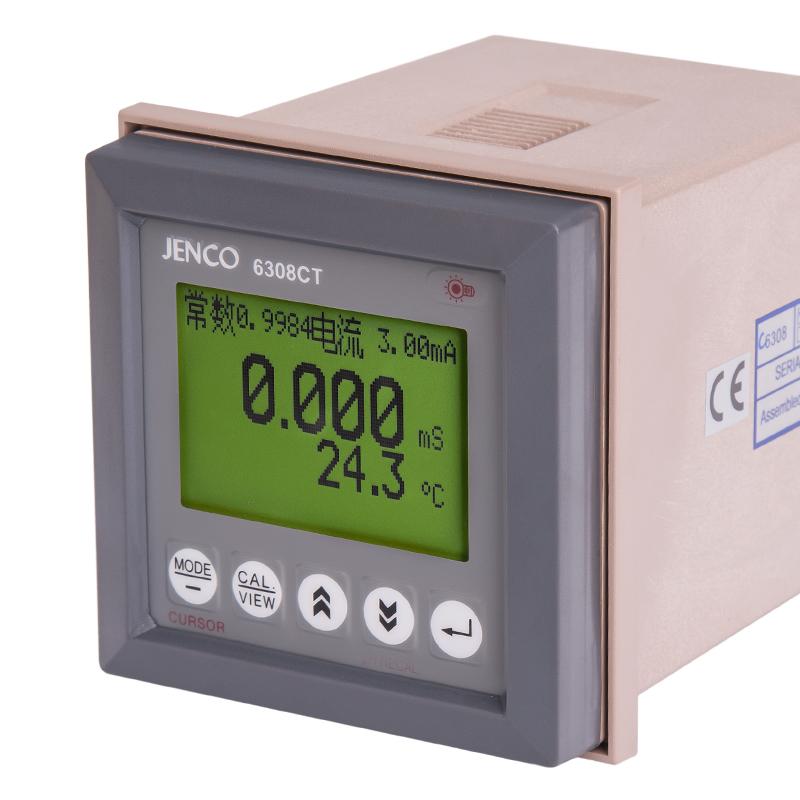

JENCO 6308CT online conductivity TDS temperature controller Picture

Introducing the JENCO 6308CT Online Conductivity TDS Temperature Controller

  • Standard 1/4 DIN waterproof body design

  • The dot matrix backlit LCD display can display the conductivity value, TDS (total dissolved solids) value, and temperature value at the same time

  • 4~20mA reversible, with isolated current output, the output range can be set by the user

  • Two sets of conductance (TDS) relay control/one set of temperature relay control, control point/hysteresis width can be set by the user

  • It has the function of automatic temperature compensation

  • Power-off correction value memory function

  • RS-485 communication interface is adopted

  • The products have passed CE certification

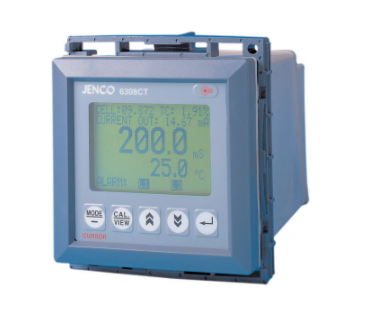

JENCO 6308CT Online Conductivity TDS Temperature Controller

Optional

electrode

ModelIntroduction
392-122Pure water, ultrapure water field
392-126Pure water field
392-125Circulating water and general water
EC621-01/EC621-001Boiler and pure water field

Sealed box

Sealed box modelInstallation:
011-200-00Dial-mounted
012-200-00Wall-mounted



FAQ
QDo you have an online TDS monitor at home? Not a pen.
A Hello, yes, the American Ren's JENCO 6308CT online Conductivity detector TDS temperature controller.
