JENCO 3321 online conductivity resistivity temperature transmitter

SE
0~20.0mS/cm, two sets of relay control, backlit LCD display
Model：
Certificate
Contact
Details SPEC OI

JENCO 3321 Resistivity temperature transmitterSPEC

JENCO 3321 Resistivity temperature transmitterDetails

JENCO 3321 Resistivity temperature transmitterPacking list

SKU
NB002963
Measurement range
0.000uS/cm~19.99mS/cm
Resolution
0.001uS/cm
Accuracy
0.5% +/- 1 word
Types of electrode constants
0.01, 0.1, 1.0 (2-wire Conductivity Detector electrode)
reference temperature
25.0 ℃, factory setting
Relay Control Output/Maximum Load
2 sets of ON/OFF relays in the system control 5A/115VAC or 2.5A/220VAC
Dimensions
1/4DIN standard body, 96 * 48 * 110mm
opening size
92*45mm
Power Supply
100~240VAC,50/60Hz
Weight
200g
Shop Accessories
Conductivity electrode, password box
3321
Resistivity temperature transmitter
0~20.0mS/cm, two sets of relay control, backlit LCD display

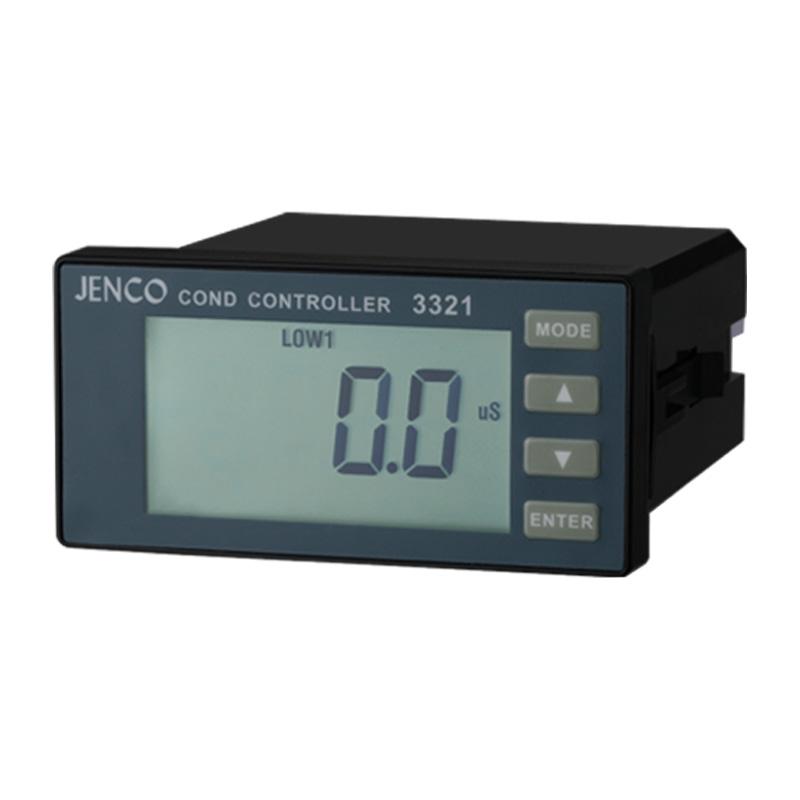

JENCO 3321 online conductivity resistivity temperature transmitter Picture

JENCO 3321/3331 Online Conductivity Resistivity Temperature Transmitter Features

  • Standard 1/8DIN design correction value power-off memory function

  • With LCD backlit display

  • 4~20mA Isolated Current Output(3331)

  • Group 2 (Conductivity, Resistivity) Electrical Control(3321)

  • Automatic/manual temperature compensation function

  • CE marked

JENCO 3321 Online Conductivity Resistivity Temperature Transmitter

Optional


ModelIntroduction
Conductivity electrodes392-122Pure water ultrapure water treatment field (can be used below 80°C for a long time)
392-126Pure water ultrapure water treatment field (can be used below 80°C for a long time)
392-125Circulating water and general water treatment (can be used below 80°C for a long time)
EC621-001Pure water ultrapure water treatment field (can be used below 120°C for a long time)
EC621-01Pure water ultrapure water treatment field (can be used below 120°C for a long time)
Sealed box011-150-00Dial-mounted
012-150-00Wall-mounted


FAQ
QCan the JENCO 3321 resistivity temperature transmitter meet the HG/T2003 standard?
A Applicable, please consult the customer service of the mall for details about the HG/T2003 standard.
QHow is this 3321 resistivity temperature transmitter calibrated?
A Model 3321 uses single point correction. In measurement mode, press and hold the [UP] key and the [ENTER] key at the same time, the whole machine will enter the Conductivity detector rate/resistivity correction mode, and the "CAL" font will display and display the current measurement value of a Conductivity detector rate/resistivity. Clean the Conductivity detector electrode with deionized water and put the electrode into the appropriate standard solution. After the temperature stabilizes, press the [UP] key or the [DOWN] key to adjust the current measurement value to the standard solution value, and then press the [ENTER] key to store. At this time, the Conductivity detector electrode correction of the standard solution is completed.
