MODERNER SZQ-200 Combination 100 * 200 * 300 * 400 Film Applicator Customization

SE
Wet film thickness 100/200/300/400μm, Spreader width 200mm, material stainless steel, type 4-sided, Total length 230mm.
Certificate
Contact
Details SPEC Con VIDEO
Similar products

Moderner SZQ-200 combination 100 * 200 * 300 * 400 Film ApplicatorSPEC

Moderner SZQ-200 combination 100 * 200 * 300 * 400 Film ApplicatorDetails

Moderner SZQ-200 combination 100 * 200 * 300 * 400 Film ApplicatorPacking list

SKU
NB029646
WFT
100 / 200 / 300 / 400µm
Application width
200mm
material
stainless steel
type
4-Sided
Total length
230mm
SZQ-200 combination 100 * 200 * 300 * 400
Film Applicator
Wet film thickness 100/200/300/400μm, Spreader width 200mm, material stainless steel, type 4-sided, Total length 230mm.

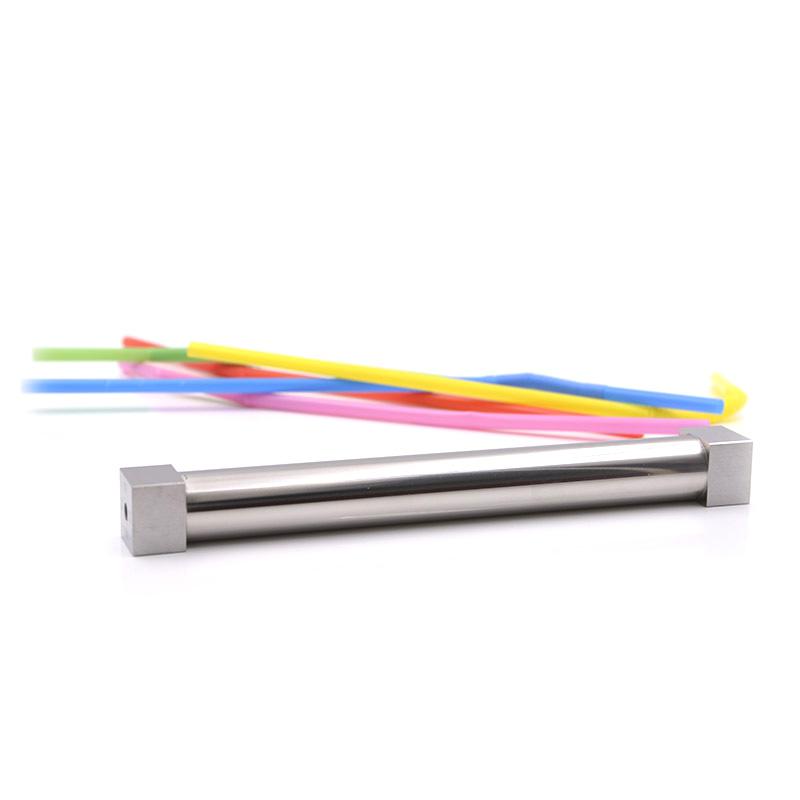

MODERNER SZQ-200 Combination 100 * 200 * 300 * 400 Film Applicator Customization Picture

Introduction

MODERNER SZQ-200 combination-100/ 200/300/ 400 Wet Film Applicator has a wet film thickness of 100/200/300/400μm and is made of 9Cr18Mo stainless steel with a hardness of HRC48±2. The Wet Film Applicator is a Wet Film Applicator with square ends and a cylinder in the middle, with a specification of 78x100mm.

Note: For non-standard customized models, please communicate with customer service for detailed parameters before placing an order.

Applications

Combination-100/200/300/400 Wet Film Applicator is a Wet Film Applicator for preparing specific wet film thickness, measuring hiding power and color or preparing samples.

Pictures

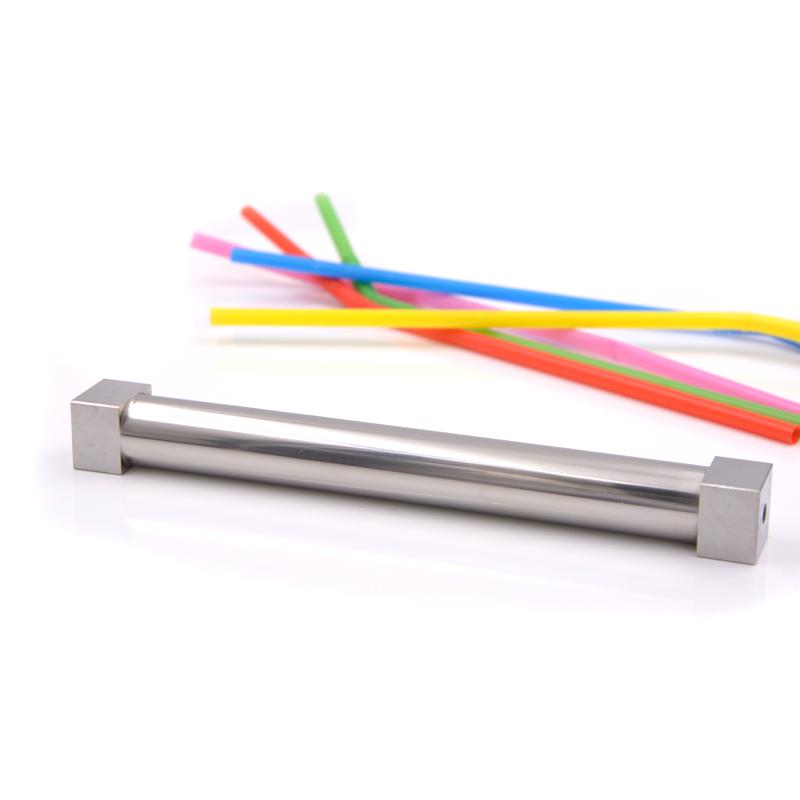

MODERNER SZQ-200 Combination 100*200*300*400 Wet Film Applicator Details Figure 1

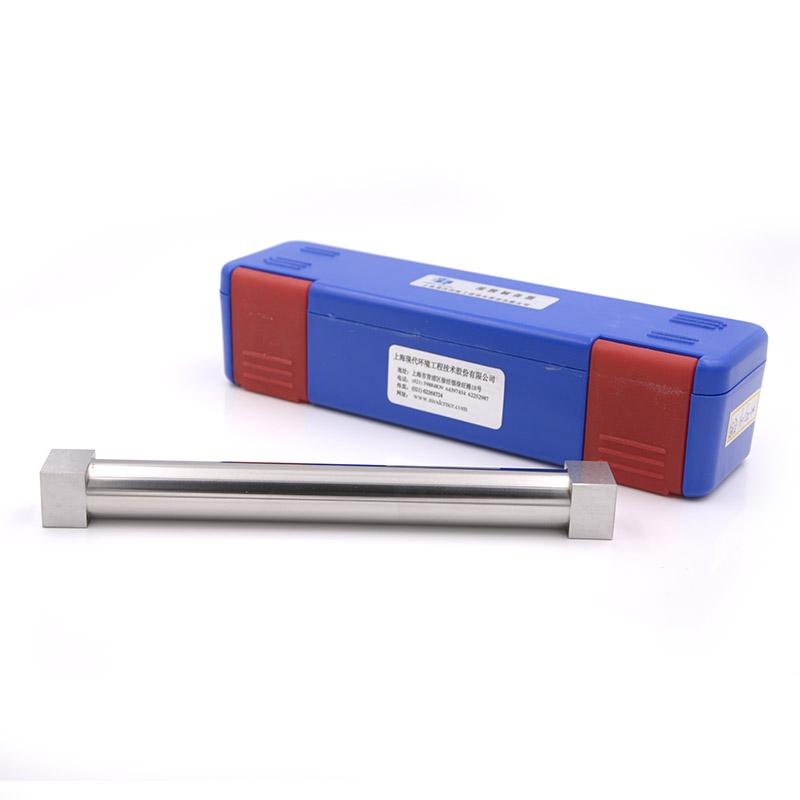

MODERNER SZQ-200 Combination 100*200*300*400 Wet Film Applicator Details Figure 2

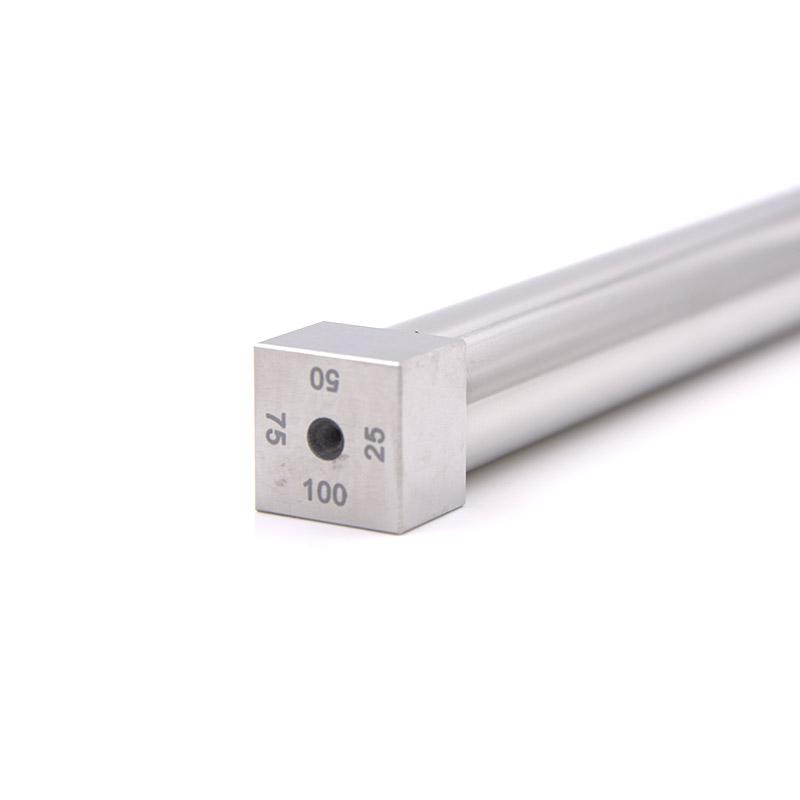

MODERNER SZQ-200 combination 100*200*300*400 Wet film Applicator details Figure 3

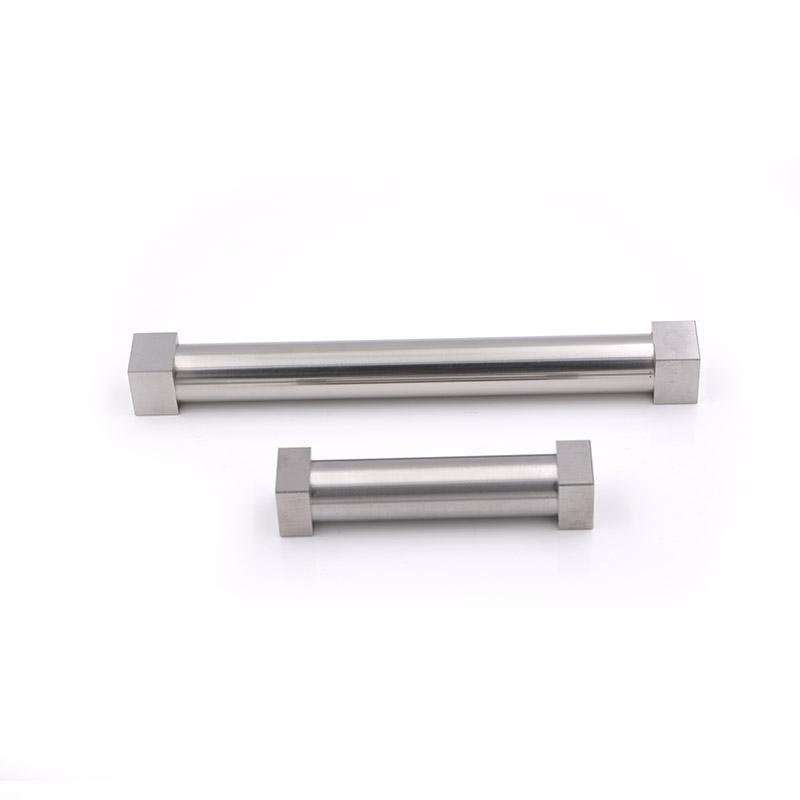

MODERNER SZQ-200 combination 100*200*300*400 Wet film Applicator details Figure 4

FAQ
Q4-Sided Film Applicator accuracy +/- 2μm refers to the same plane, the total deviation of 4 microns, or 2 microns?
A Accuracy +/- 2 microns is the overall deviation of 4 microns, that is, on the same plane, a total of 4 microns up and down.
QCan this 200mm film width Film Applicator be used on an automatic film machine?
A Hello, it's OK.
QCan this MODERNER Film Applicator correspond to GB/T9755?
A Yes, please refer to the NBchao standards page for specific standards.
QSZQ-200100*200*300*400 Film Applicator can be prepared with 100 μm, 200 μm, 300 μm, 400 μm film thickness?
A Yes, this 4-sided Film Applicator is used for prepative 100/200/300/400μm
