JINGKELIAN QCJ-40 Wood Impact Machine 40cm/500g GB/T 4893.9

QCJ-40

Wood Impact Device

Impact height 40cm, sub-scale 5mm, drop weight mass 500g, table size 200x250mm, meet the standard GB/T 4893.9-92, Impact steel ball φ 14-0.01 HRC60~66 (GB308), sample size 200x180mm.

Introduction

QCJ-40 paint film impactor is designed and manufactured according to GB/T4893.9-92 standard. It is suitable for evaluating the impact resistance of the paint film on the surface of furniture wooden parts.

Principle

A steel cylindrical impact block is dropped from a specified height along a vertical conduit and impacts on a steel ball with a specified diameter and hardness placed on the surface of the test piece. According to the degree of damage to the paint film on the surface of the test piece, The grade expressed by the number is used to evaluate the impact resistance of the paint film.

Instrument structure

QCJ-40 paint film impactor consists of:

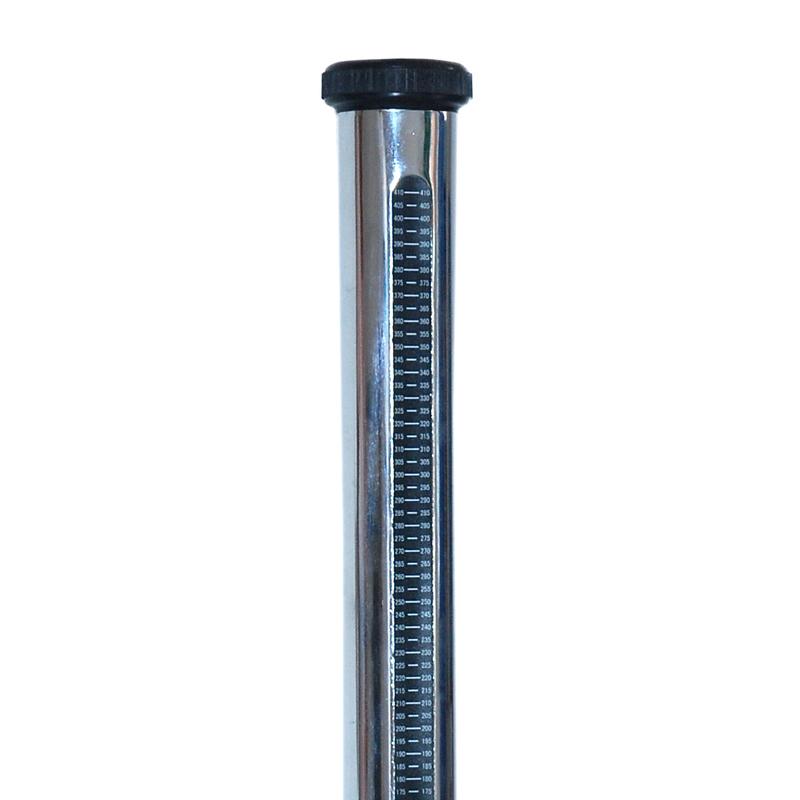

1. Work abutment; 2. Scale catheter; 3. Catheter seat; 4. Controller; 5. Impact block; 6. Standard steel ball; 7. End cap; composition.

Packing list：Host X1, manual X1, certificate X1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
