FANGRUI HB-SSR Digital Rotational Viscometer for small samples

SE
FANGRUI HB-SSR Digital Rotational Viscometer test Viscosity 400~16000000mPa·s, standard 21 #, 27 #, 28 #, 29 #four rotors, using digital LCD, HB-SSR digital Viscometer test sample volume 7.8~ 11.5ml, can be purchased separately No. 0 rotor test low Viscosity sample.
$1098.00/set
PromotionLoading...
Coupon
Model：
Certificate
Contact
Details SPEC Con OI

FangRui HB-SSR ViscometerSPEC

FangRui HB-SSR ViscometerDetails

FangRui HB-SSR ViscometerPacking list

SKU
NB029661
Display
Backlit LCD, digital display
Measuring range
400~16000000mPa·s
Rotor Specifications
21 #, 27 #, 28 #, 29 #(0 #optional)
Rotor speed
0.5/1/2/2.5/4/5/10/15/20/25/30/40/50/60/70/80/90/100rpm
Reproducibility
±1%F.S
Measurement Accuracy
±2%
Capacity
7.8~11.5ml
Data Interface
There are two RS232 interfaces, which can connect printers and computers
Dimensions
300*300*450mm
Operating language
Chinese
Temperature probe interface
Standard
No. 0 rotor (optional) range
51.2-2K；K=1000
No. 21 rotor range
400-800K；K=1000
No. 27 rotor range
2K-4M；K=1000
No. 28 rotor range
4K-8M；K=1000、M=1000000
No. 29 rotor range
8K-16M；K=1000、M=1000000
ULR (No. 0 rotor) sample Volume
21ml
No. 21 rotor sample Volume
7.8ml
No. 27 rotor sample Volume
11.3ml
No. 28 rotor sample Volume
12.6ml
No. 29 rotor sample Volume
11.5ml
HB-SSR
Viscometer

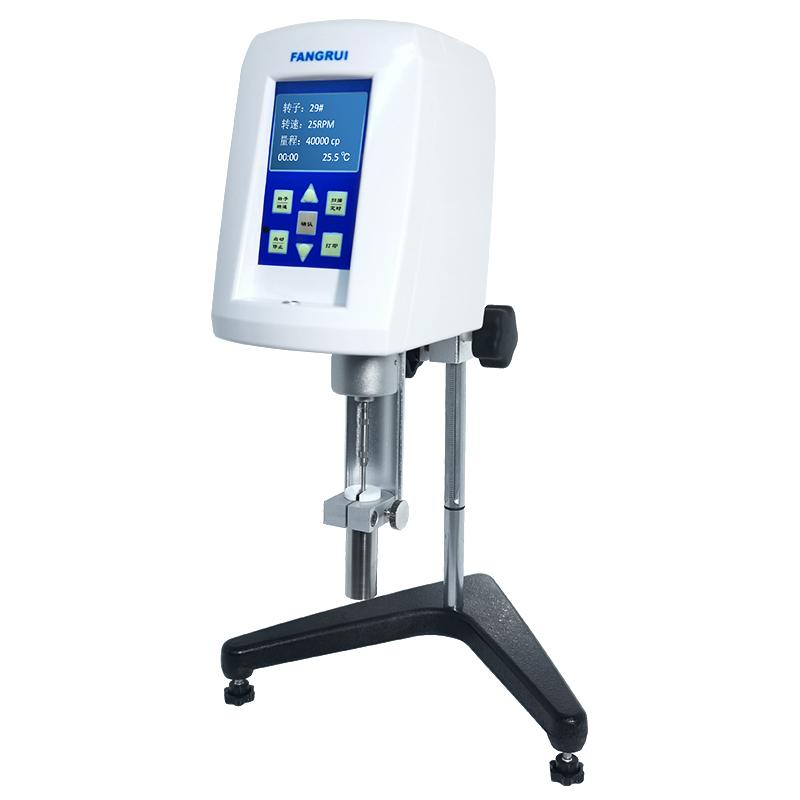

FANGRUI HB-SSR Digital Rotational Viscometer for small samples Picture

Introduction

The SSR series Digital Rotational Viscometer adopts a coaxial cylinder structure and uses a small sample adapter. The amount of sample required for each measurement is very small, only 7ml-13ml (No. 0 rotor is 21ml), and constant temperature water with circulation is optional. The jacket is used to control the temperature of the sample to be tested in conjunction with a constant temperature bath. The operation is very convenient and the measured value is accurate. Ideal for precious, small sample measurements.

Applications

SSR digital viscometer is widely used in fluid viscosity detection and control of oil, paint, coating, slurry, textile, food, medicine, adhesive, cosmetics, etc., to meet the viscosity test of a small number of samples.

Features

1. The level bubble is in the front, just sit and adjust the level, which is very convenient.

2. It has timing measurement function .

3. Coaxial cylinder structure .

4. The measurement accuracy of the data is two decimal places .

5. Easy and reliable operation .

6. With a small amount of sample adapter, the amount of sample required for testing is very small .

7. The viscometer is equipped with two RS232 interfaces, which can be directly connected to a miniature thermal printer and a computer .

Optional

1. Enhanced Ultra Low Viscosity Adapter ULR (Spindle 0)

  • Designed for low viscosity fluid measurement

  • Jacketed and non-jacketed specifications are available

  • The lowest detection limit is 1cP, the range depends on the viscometer used

  • Model stainless steel for easy cleaning

  • Can withstand the working temperature range -40 ℃ -200 ℃

2. DC0506W type viscometer dedicated low temperature constant temperature bath

Comparison of SSR parameters

Instrument modelRotating speedrotorRangesample size
LV-SSR0.3~10018#, 25#, 31#, 34#10,000-200,0007~11
RV-SSR0.5~10021#, 27#, 28#, 29#6.4-2M7.8~11.5
HA-SSR12.8~4M
HB-SSR51.2~16M
*Measuring range M=1000000; unit: r/min, mPa·s, ml
Other parameters
Measurement error±2% (Newtonian liquid)
Repeat error±1% (Newtonian liquid)
Output InterfaceThere are two RS232 interfaces, which can be connected to printers and computers
Temperature probe interfaceStandard
Dimensions300×300×450mm


FAQ
QCan FANGRUI HB-SSR Viscometer meet the GB/T 1981.3 standard?
A Applicable, please consult the customer service of the mall for details about the GB/T1981.3 standard.
QWhat is the minimum sample size that the HB-SSR rotational viscometer can test?
A Hello, it's 7.8ml.
QDo I need extra booking for rotor 0?
A Hello, yes.
