XingYun FA314AI Electronic Balance analysisPacking list
SKU
NB029664
Weighing range
310g
readability Accuracy
0.1mg
Calibrating function
Automatic internal calibration
Minimum weighing value
0.4mg
linearity error
±0.0005mg
Repeatability Error
0.1Mg if Weight ≤ 220g; 0.1m from 220g to 310g; 0.35mg from 310g-610g
Settling time
≤4s
Range drift
(+10~+30℃):±2ppm/℃
Pan size
F80mm
Power
110 ~ 230 VAC 50 / 60Hz subsist24V / 500mA / 13VA
Instrument net Weight
5.8kg
Dimensions
345*215*345mm
display
LCD backlit liquid crystal display with adjustable contrast
Gross Weight
8.25kg
Operating Temperature
5-25℃
Options
RS232C & RS486、Printer
Wind Shield size
162*171*225mm
External electronic box size
175×105×50mm
External electronic box Weight
500 g

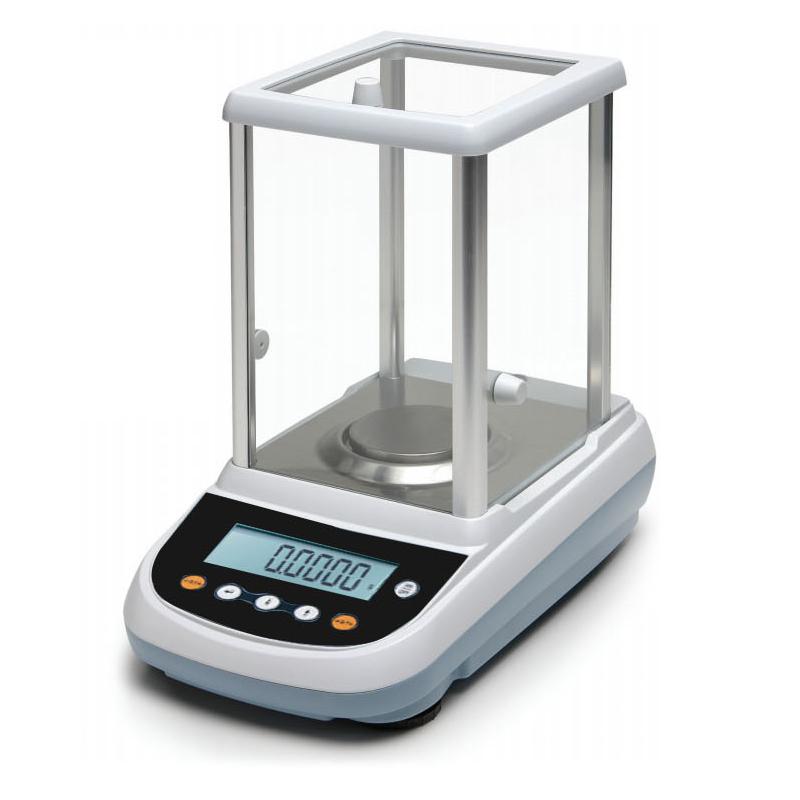

FA314AI
Electronic Balance analysis
Electromagnetic force recovery weighing system, high-precision weighing Sensors weighing system, automatic internal calibrating, LCD, adjustable contrast, glass cover Wind Shield, keyboard plastic protection, original imported main board, Sensors
The FAAI High Performance Balance range includes analytical balances with the highest measurement performance. They are equipped with highly integrated load cells that are highly stable against temperature changes and the passage of time, and have fast response capabilities due to reduced mass and total number of components. The FAAI balance has an automatic internal calibration function in the standard configuration, so as to ensure that the measurement is always accurate, and it is really no longer affected by the change of ambient temperature. The maximum weighing capacity of FAAI series analytical balance is 310g410g510g610g. All models feature a backlit LCD display and a Wind Shield that protects the high-volume internal measurement chamber. Each balance is equipped with RS232 output interface.
Function
Electromagnetic Force Recovery Weighing System
High precision load cell weighing system
Automatic Internal Calibration
Backlit LCD display with adjustable contrast
Large Wind Shield with 3 sliding doors, square
Easy to operate the item to be weighed
Keyboard plastic protection
appendix
ION-AI5 Static Eliminator (BL0371)
TLP-50 Serial Printer with Date/Time (C054)
DPP-250 Serial Printer (AC007)
Density Kit for Solids and Liquids (AC002)
Alphanumeric external keypad (AC005)
Serial to USB Converter (E1002)
Serial cable for serial output to printer or computer (E743)
Packing list:
[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
FAQ
QI want to do a test on the GB/T1714 standard. Is this analysis Electronic Balance okay?
