TIME2510 (formerly TT210) Plastic Film Thickness Gauge eddy current and magnetic integration

TIME2510（原TT210）

Thickness Gauge

Overview

Beijing TimesTIME2510 plastic Film Thickness Gauge(formerly TT210) is a portable magnetic and eddy current Thickness Gauge that can quickly and accurately measure the thickness of non-magnetic overlays on magnetic metal substrates. It can be used both in the laboratory and in the engineering field. It can be widely used in manufacturing, metal processing industry, chemical industry, commodity inspection and other testing fields. Due to the small size of the instrument and the integration of the probe and the instrument, it is particularly suitable for on-site measurements.

The following criteria are met

GB/T 4956─1985 Measurement of thickness of non-magnetic overlay on magnetic metal substrate -- Magnetic method

GB/T 4957─1985 Measurement of thickness of non-conductive overlay on non-magnetic metal substrate -- Eddy current method

JB/T 8393─1996 Magnetic and eddy current cladding thickness measuring instrument

JJG 889─95 Magnetoresistive Thickness Gauge

JJG 818─93

Features

1. The magnetic thickness measurement method can measure the thickness of the non-magnetic covering layer on the magnetic metal matrix (such as zinc, aluminum, steel, rubber, paint, etc. on steel, iron, alloy and hard magnetic steel) without damage

2. The eddy current measurement method can be used to measure the thickness of the non-conductive layer on the non-magnetic metal matrix without damage（Such as paints, rubber, plastics, oxide films, etc. on metals such as copper, aluminum, zinc, tin, etc.)

3. Zero-point calibration and two-point calibration can be carried out, and the systematic error of the probe can be corrected by the basic calibration method

4. There are two measurement methods: continuous measurement mode and single measurement mode

5. It has two Operating Modes: direct mode and batch group mode

6、TIME2510 plastic Film Thickness Gauge is available500 measured values are stored

7. Its useful functions: delete the current value, calibration value, limit value, and all values

8. There are five statistics: average, maximum, minimum, number of tests, and standard deviation

9. It has the function of printing, which can print measured values and statistical values

10. It has the function of under-Voltage indication

11. There is a buzzer prompt during the operation

12. It has the function of error prompt

13. Chinese and English menus are adopted

14. Backlight display, convenient for measurement in low-light environment

15. Automatic and manual shutdown dual functions

16、TIME2510 plastic Film Thickness GaugeOne probe is used

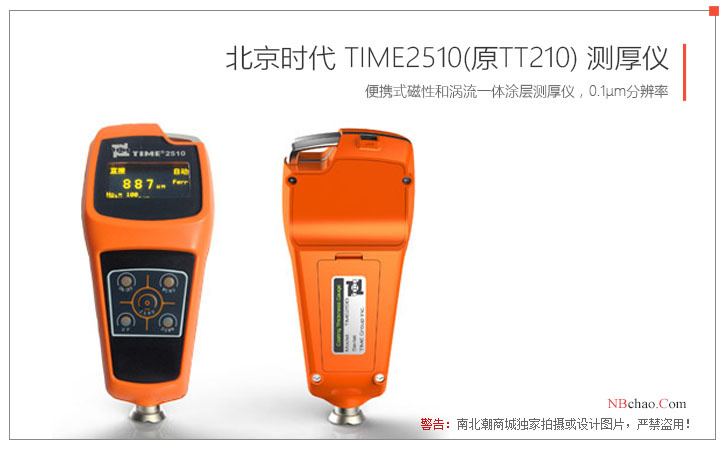

Actual picture of the product

Packing list：host x1, standard sample x1, standard base x1, charger x1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
