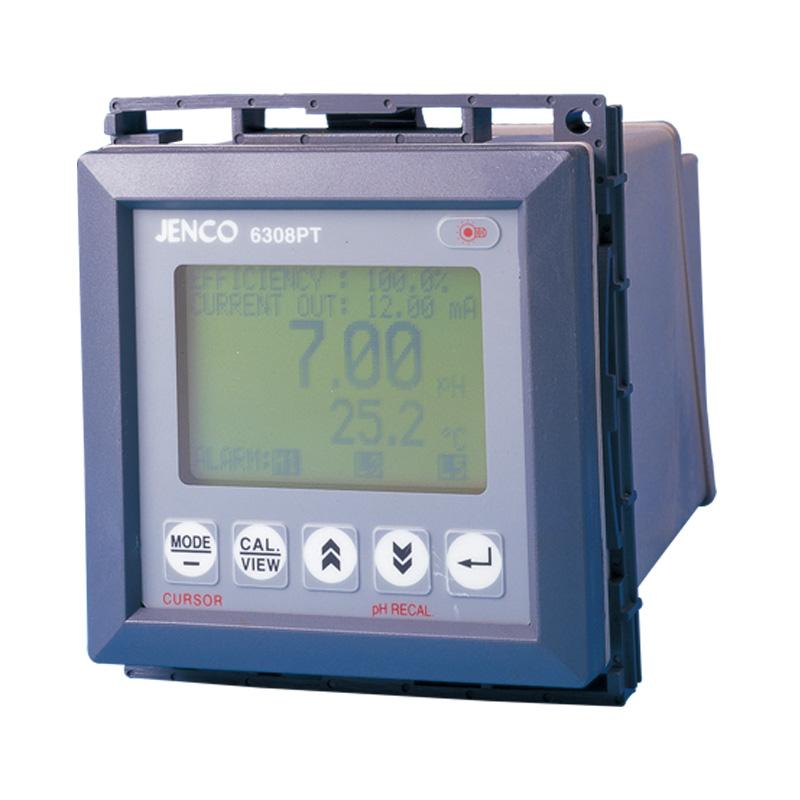

JENCO 6308PT online pH temperature controller

6308PT

pH temperature controller

-2~ 16/0.01 pH, dot matrix backlit LCD display, waterproof housing, 4~ 20mA isolated output

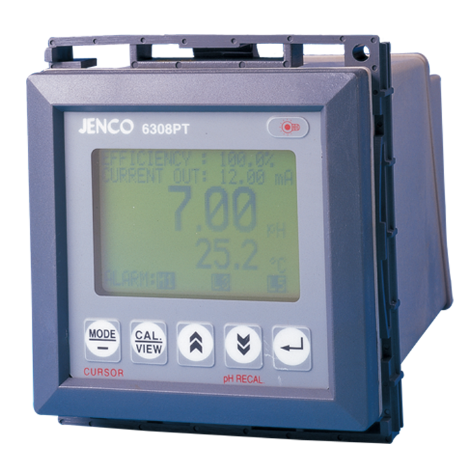

Introducing the JENCO 6308PT In-Line pH Temperature Controller

1. Standard 1/4 DIN waterproof body design

2. It can display both pH value and temperature value at the same time

3. pH electrode efficiency display

4. 4~20mA reversible, with isolated current output, the output range can be set by the user

5. Four sets of pH relay control/one set of temperature relay control, control point/hysteresis width can be set by the user

6. It has the function of automatic temperature compensation

7. Power-off correction value memory function

8. RS-485 communication interface is adopted

9. The products have passed CE certification

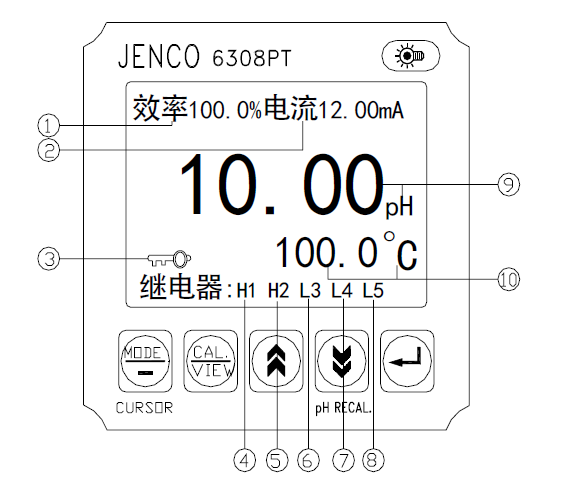

Displays a description

(1) Efficiency: The corrected efficiency of the electrode is displayed here.

(2) Current: Displays the output size of the actual isolation current. There are three other display cases:

a. When the input signal is not stable within 3 seconds after powering on, it will be displayed as the word "stop".

b. When the difference in the set value of the current output is less than 0.1 pH, it is displayed as an "error".

c. When entering the correction/setting mode or returning to the normal display screen from the correction/setting mode, it will be displayedThe word "lock" is displayed, and it is displayed for about 2 seconds.

(3) : The key indicator signal is lit to indicate that the set mode is password protected, unless enabledThe user then enters the correct four-digit password, otherwise all the set parameters can only be viewedIt can be changed again.

(4) H1: Indicator signal - When the indicator signal of H1 is on, it means that the pH value of RELAY1 has been exceededThe setpoint of the control.

(5) H2: Indicator signal – When the indicator signal of H2 is on, it means that the pH value of RELAY2 has been exceededThe setpoint of the control.

(6) L3: Indicator signal - when the indicator signal of L3 is on, it means that the pH value of RELAY3 has been loweredThe setpoint of the control.

(7) L4: Indicator signal – When the indicator signal of L4 is on, it means that the pH value of RELAY4 has been loweredThe setpoint of the control.

(8) H5/L5: Indicator signal -- when the indicator signal of H5/L5 is lit, it indicates the temperature display of RELAY5The signal value has exceeded/fallen below the control set value.

(9) Measured pH.

(10) Measured temperature display

Optional

pH electrode

Sheath tube

Sealed box

Packing list：host X1, manual X1, certificate X1, warranty card X1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
