JENCO 3675 (set) online pH oxidation reduction controller

SE
The JENCO 3675 (set) online pH oxidation reduction controller is a pH oxidation reduction controller that can measure the pH value, and can also measure the Oxidation Reduction Potential. The measurement range, measurement accuracy and resolution of the 3675 (set) pH oxidation reduction controller are 0~14.0 pH, +/- 0.01pH +/- 1 word, 0.01 pH.
Model：
Certificate
Contact
Details SPEC OI

JENCO 3675 (set) pH oxidation controllerSPEC

JENCO 3675 (set) pH oxidation controllerDetails

JENCO 3675 (set) pH oxidation controllerPacking list

SKU
NB002973
PH range
-0.00~14.00pH
PH Measurement Accuracy
±0.01pH
Resolution
0.01pH
Power Supply
110或230VAC,50/60Hz
Dimensions
1/4DIN standard body, 96 * 96 * 119mm
Measurement range mV
-1999~1999mV
mV resolution
1mV
Measurement Accuracy of mV
±0.5%F.S
Current output range
4~ 20M isolated current output
Insulation Voltage/maximum load
500VDC/550Ω
Relay Control Output/Maximum Load
System ON/OFF control/2.5A/230VAC
opening size
92*92mm
Shop Accessories
pH electrode, ORP electrode, mounting bracket, sealing box
Display
LCD display
3675 (set)
pH oxidation controller

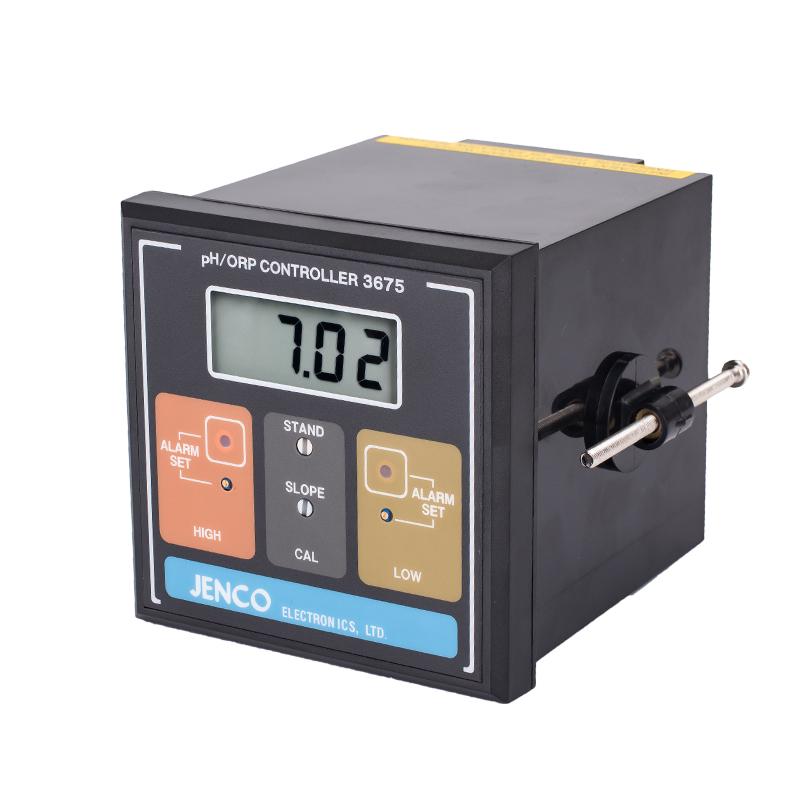

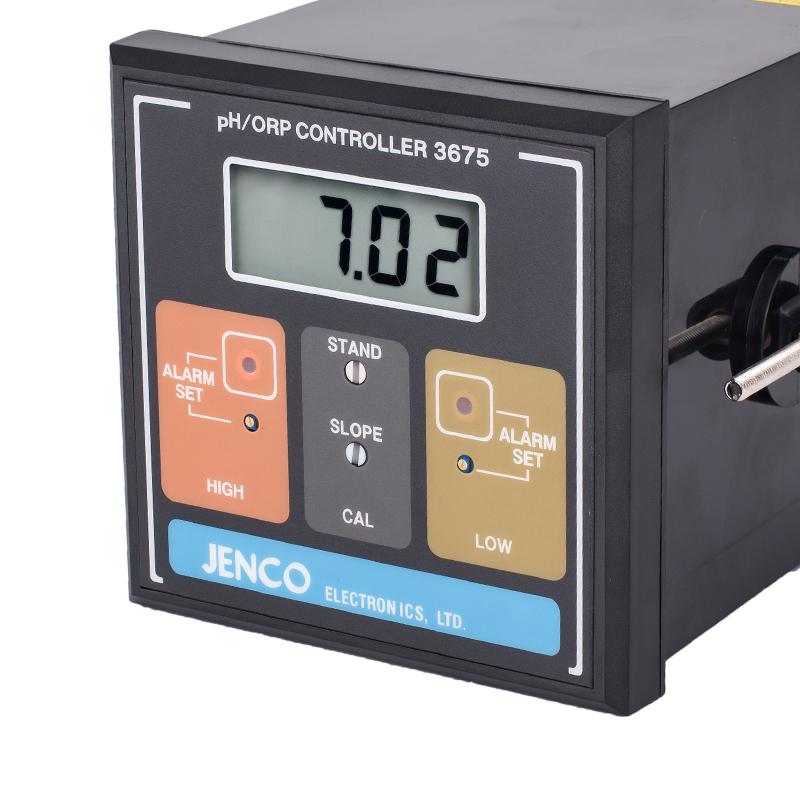

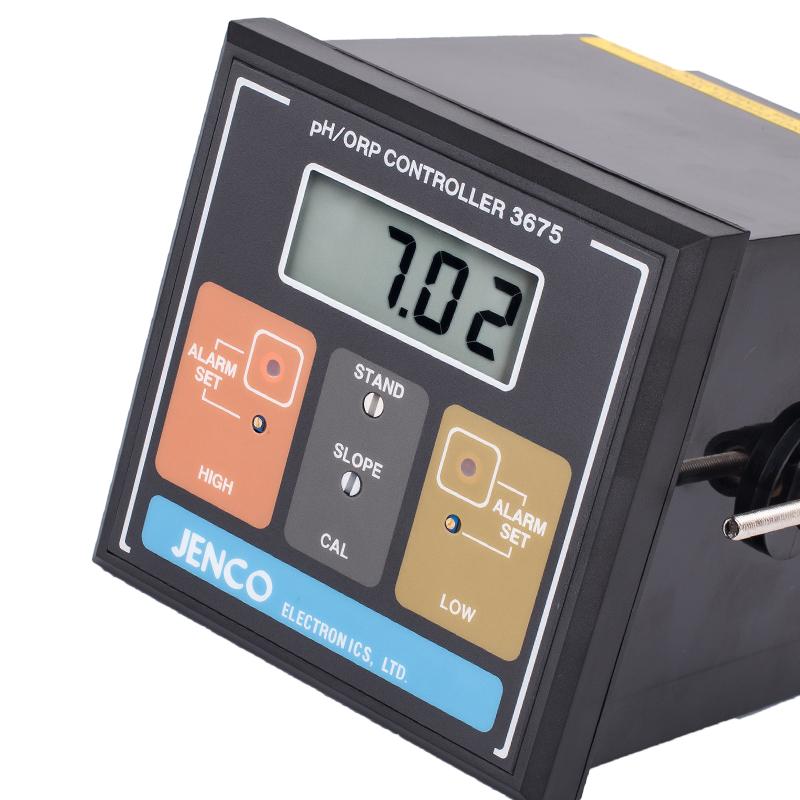

JENCO 3675 (set) online pH oxidation reduction controller Picture

Introducing the JENCO 3675 Online pH Redox Controller

  1. Standard 1/4 DIN molded body design

  2. The same instrument can measure the pH value, and the redox potential value can also be measured

  3. LCD Display(3675)/LED Display(3676)

  4. Two sets of relay control, the control point can be set by the user

  5. 4~20mA with isolated current output

  6. It has the function of automatic temperature compensation

  7. It is an affordable pH/ORP controller and transmitter

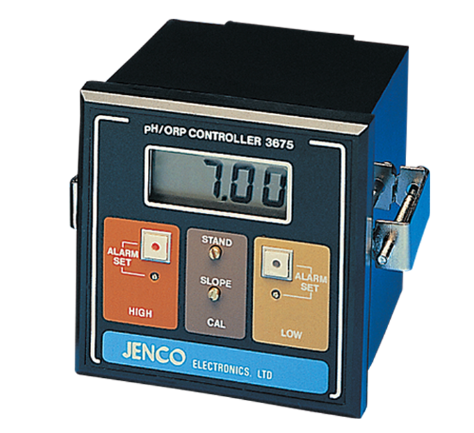

JENCO 3675 (set) in-line pH redox controller

Optional

Optional
pH electrodeIP-600-1In the field of wastewater treatment with high turbidity, it can be used in a long-term environment of 80 degrees
IP-600-10In the field of ordinary carved water treatment, there is no temperature compensation
IP-600-9PTIn the field of ordinary carved water treatment, automatic temperature compensation
IP-600-3C Pure water, ultrapure water measurement
ORP electrodesIR-500-8In the field of general wastewater, -2000mV~2000mV
IR-500-9In the field of general wastewater, -1000mV~1000mV
Mounting bracket009A1 meter pool mounting bracket
Sealed box011-200-00Dial-mounted
012-200-00Wall-mounted


FAQ
QCan this pH oxidation reduction controller be applied to JB/T6858?
A OK
Standard
