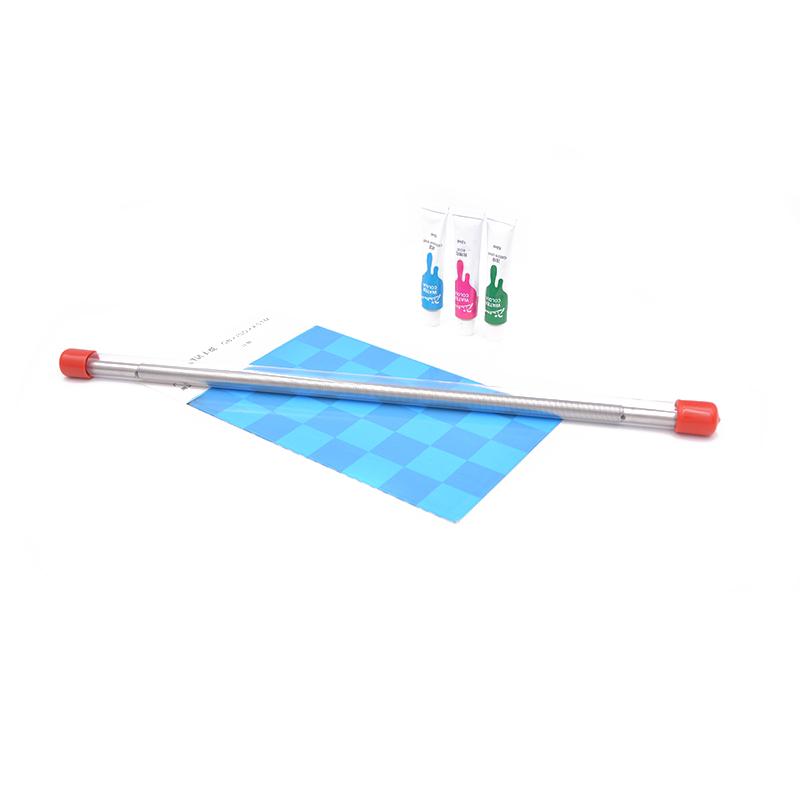

RDS 50 #1/2 "Mayer Rods film thickness 114.3μm Wire diameter 1.27mm

SE
Wet film thickness 114.3 μm, diameter 12.7mm, Total length 400mm, Spreader width 300mm, grip width 50 + 50mm, material stainless steel
$179.00/piece
PromotionLoading...
Coupon
Model：
Certificate
Contact
Details SPEC Con VIDEO CAT OI
Similar products

RDS 50# 1/2" Applicator rod 1/2 "SPEC

RDS 50# 1/2" Applicator rod 1/2 "Details

RDS 50# 1/2" Applicator rod 1/2 "Packing list

SKU
NB029782
Production process
Wire-wound
WFT
114.3μm
diameter
12.7mm
Total length
400mm
Application width
300mm
grip width
50+50mm
material
stainless steel
Wire diameter
1.27mm
50# 1/2"
Applicator rod 1/2 "
Wet film thickness 114.3 μm, diameter 12.7mm, Total length 400mm, Spreader width 300mm, grip width 50 + 50mm, material stainless steel
RDS 50 #1/2 "Mayer Rods film thickness 114.3μm Wire diameter 1.27mm Picture

RDS 50 #1/2 "Mayer Rods film thickness 114.3μm Wire diameter 1.27mm Figure 1

RDS 50 #1/2 "Mayer Rods film thickness 114.3μm Wire diameter 1.27mm Figure 2

RDS 50 #1/2 "Mayer Rods film thickness 114.3μm Wire diameter 1.27mm Figure 3

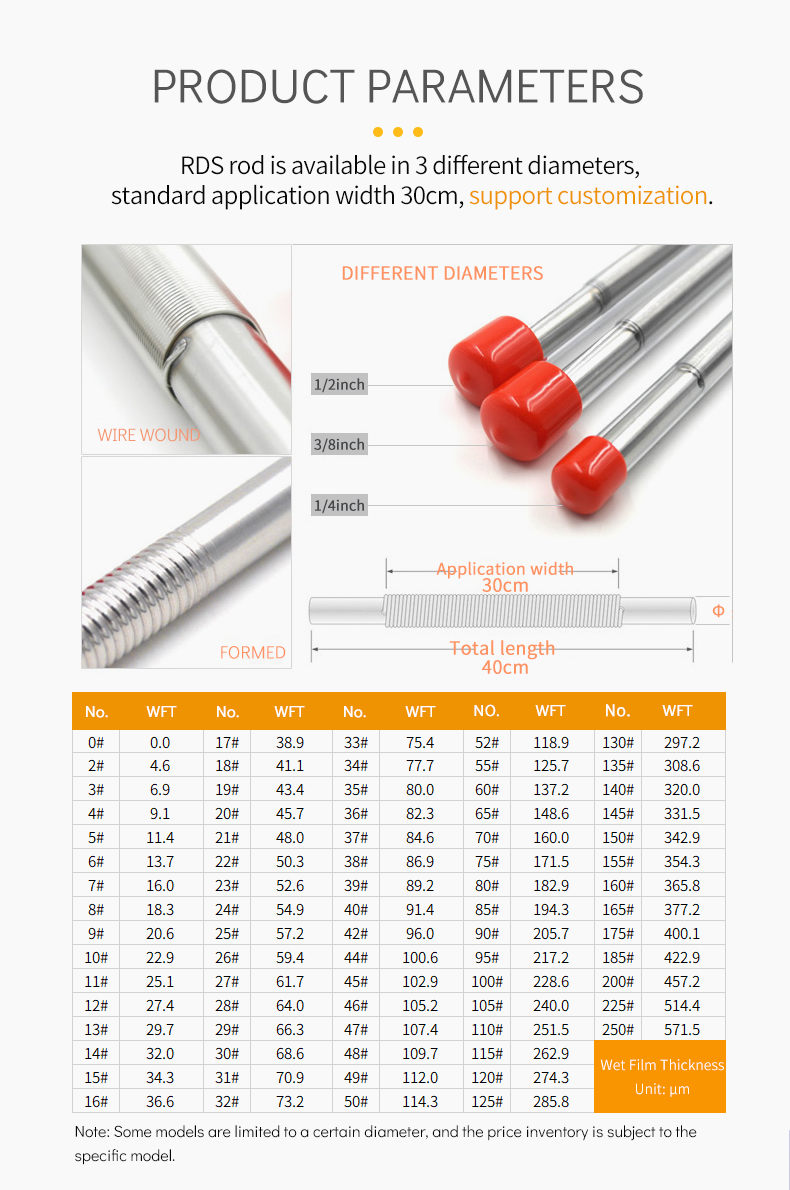

RDS 50 #1/2 "Mayer Rods film thickness 114.3μm Wire diameter 1.27mm Figure 4

RDS 50 #1/2 "Mayer Rods film thickness 114.3μm Wire diameter 1.27mm Figure 5

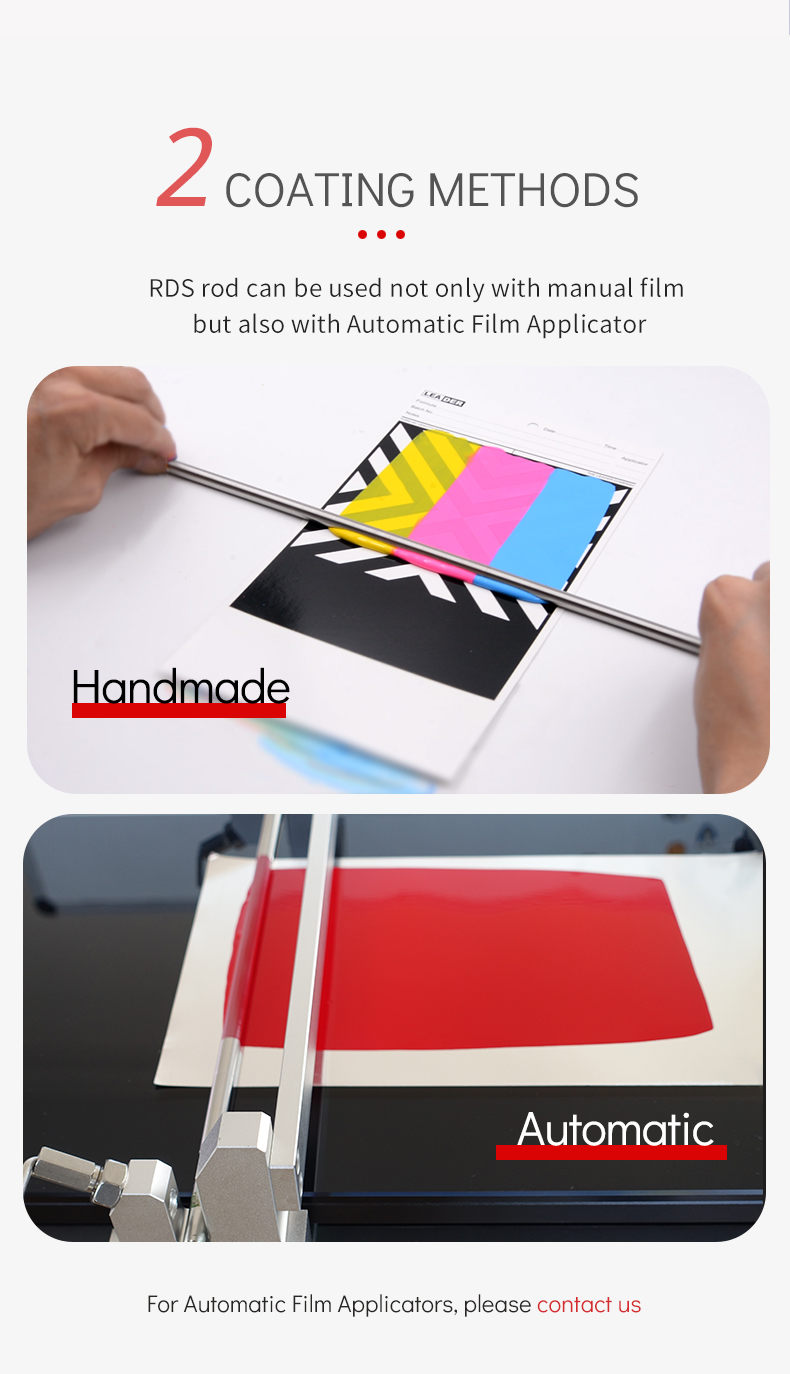

RDS 50 #1/2 "Mayer Rods film thickness 114.3μm Wire diameter 1.27mm Figure 6

RDS 50 #1/2 "Mayer Rods film thickness 114.3μm Wire diameter 1.27mm Figure 7

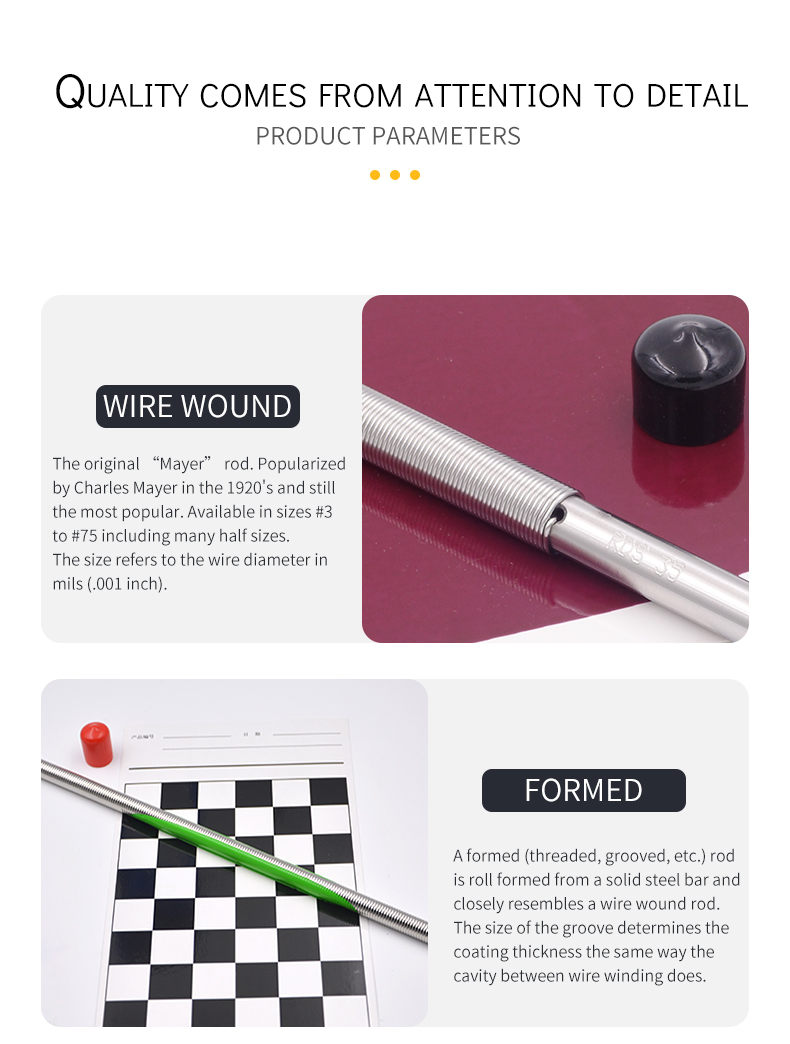

RDS 50 #1/2 "Mayer Rods film thickness 114.3μm Wire diameter 1.27mm Figure 8

RDS 50 #1/2 "Mayer Rods film thickness 114.3μm Wire diameter 1.27mm Figure 9

RDS 50 #1/2 "Mayer Rods film thickness 114.3μm Wire diameter 1.27mm Figure 10


FAQ
QI would like to ask, will this thread on the wire rod produce net marks when the blade is scrapped?
A Hello, under normal circumstances, it is not possible, unless your sample viscosity is too high or the Film thickness is too large.
QIs this Applicator rod JB/T7663.2 compliant?
A Applicator rod is suitable for JB/T7663.2, please consult customer service for detailed application definition
Q25 microns thick, how many scrapers can the dry film get?
A You can roughly refer to dry film = wet film X Solid content% calculation
QDo you support customization? Such as wet film thickness and length?
A Spreader rod length and main rod diameter support customization, but wet film thickness RDS has provided dozens of specifications covering more than 200 microns, and in principle does not accept customization.
