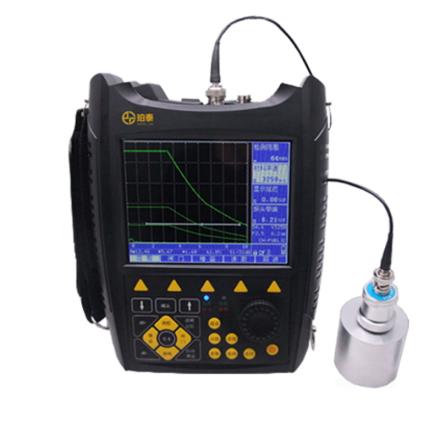

PoRuiKe VUT620 low-end version Ultrasonic flaw detection (UFD) instrument Specifications
Search
Brand：PoRuiKe
Model：VUT620 low-end version
Name：Ultrasonic flaw detection (UFD) instrument
Specifications
| Scanning range | 0~6000mm |
| Speed of sound | 1000~9999m/s |
| number of storage channels | 10 |
| Number of stored waveforms | 100 |
| video recording | 5min×10 |
| Gain Range | 0dB~100dB |
| display delay | -15μs~+3400μs |
| Probe zero | 0μs~1000μs |
| Frequency range | 0.2~15MHz |
| impedance matching | 50/75/150/500Ω |
| electrical noise level | ≤10% |
| Frequency of sexual repeability | Automatic low, automatic medium, automatic high, 5~ 1000Hz |
| Sensitivity margin | ≥ 62dB |
| Dynamic range | ≥ 40dB |
| Horizontal Linearity | ≤ 0.1% |
| Vertical Linearity | ≤ 3% |
| Far field resolution | ≥ 32dB |
| pulse intensity | fixed |
| pulse width | 50~1000ns |
| Storage Capacity | 1GB |
| Environmental temperature | -10~50℃ |
| Operating Time | ≥20H |
| Operating language | Simplified Chinese/English |
| Communication interface | High-speed USB interface |
| Dimension | 220*175*59mm |
| Power Supply | 7200mAh lithium battery |
| Power Supply | 220V,50Hz,8.4V |
| Machine Weight | About 1.3Kg (including battery) |
Packing list
Host X1, lithium battery X1, power adapter X1, AC power cable X1, probe cable X1, straight probe X1, oblique probe X1, coupler X1, USB cable X1, host belt X1, instrument suitcase X1, random data X1, U disk X1
After-sales instructions
Warranty days: 730 days
