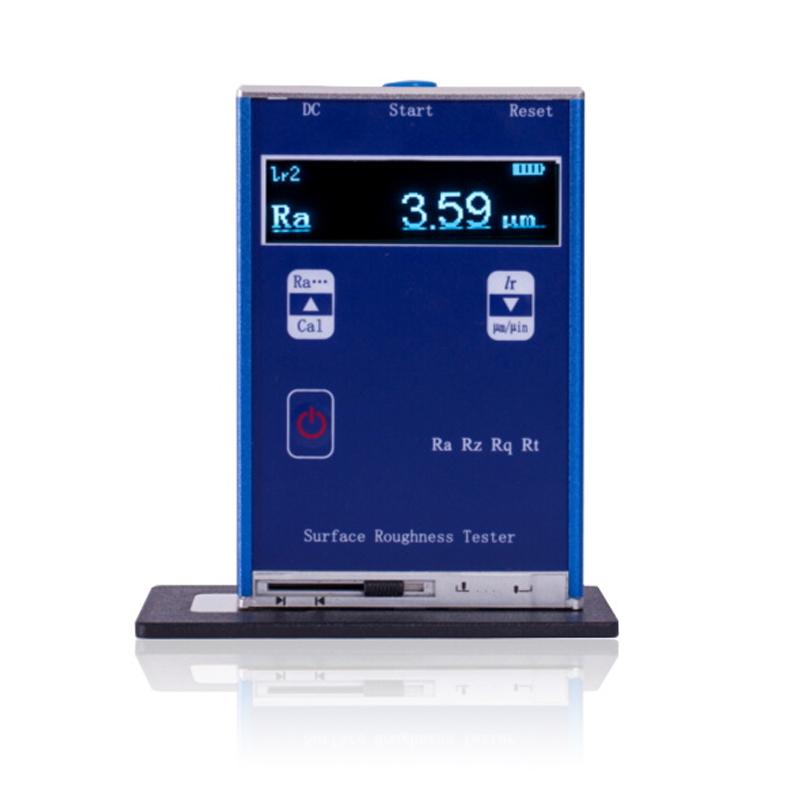

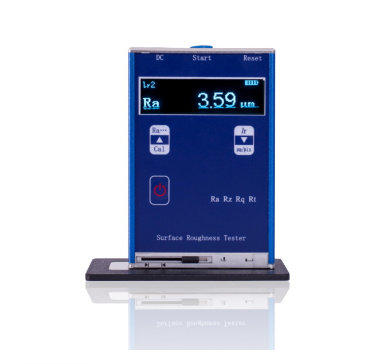

PORUIKE BC-110 pocket Surface Roughness Tester

BC-110

Surface roughness meter

Overview

The BC-110 Portable Roughness Tester is a new generation of pocket-sized portable surface roughness Tester. It is based on the working principle of needle tracing, using professional sensing system DSP technology, with high measurement accuracy, wide measurement range, simple operation, easy to carry, stable work and other characteristics, can be widely used in the detection of various metal and non-metal processing surfaces, the instrument is a pocket instrument integrated with the sensor host, with hand-held characteristics, more suitable for use on the production site, is to improve production efficiency, reduce the production cost of the required products.

Features

• It is compatible with ISO, DIN, ANSI, JIS national standards, and is used for surface roughness testing of metal and non-metal processing

• Large range, a variety of parameters can be selected Ra, Rz, Rq, Rt

• 160μm large range measurement range, and selectable sampling length 0.25, 0.80, 2.50

• 128×64 OLED dot matrix display, digital/graphic display, bright and no dead ends

• The display is informative and intuitive, and all parameters and graphs can be displayed

• The high-speed DSP processor is used for data processing and calculation, which is fast and has higher accuracy

• Reliable anti-motor run-off circuit and software design

• Built-in lithium-ion rechargeable battery and charging control circuit, high capacity, no memory effect

• The remaining battery indicator icon shows the charging process and knows the charging level at any time

• The continuous working time is more than 20 hours

• Ultra-large capacity data storage, which can store 100 sets of raw data and waveforms

• Real-time clock setting and display for easy data recording and storage

• It has automatic sleep, automatic shutdown and low-power hardware and software design, so that the instrument works for a long time

• Reliable anti-motor run-off circuit and software design

• Various prompt information such as measurement information, menu prompt information, error information, and power on and off is displayed

• Ergonomic all-metal housing design, sturdy, compact, portable, and reliable

• Chinese/English language selection (customizable)

• High-precision piezoelectric crystal sensors are used for accurate measurement

• Mini USB charging port for charging the instrument with a mobile phone charger

• The calibration sample is made of optical glass matrix, which has high precision, is not easy to scratch, and has a long service life

• The sensor probe protection door is set up, and the protective door can be closed to effectively protect the sensor probe when not measuring

Applications

Machining and manufacturing industry, mainly metal processing and manufacturing

With the progress and development of science and technology, more and more new materials are applied to processing technology, such as ceramics, plastics, polyethylene, and so on

The roughness of the coupling on the switch, integrated circuit semiconductor, etc. is also required to be evaluated in the production and processing process

Operating Conditions

Ambient temperature: operating temperature -20°C~+40°C

Storage temperature: -30°C~+70°C

Relative Humidity≤90%

There is no strong vibration, no strong magnetic field, no corrosive medium and no serious dust in the surrounding environment

Packing list：Host X1, multi-line calibrated sample block X1, bracket X1, charger X1, data cable X1, manual X1, certificate X1, warranty card X1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
