Sandu LP-5810 Pot Thickness Gauge 0~10mm Thickness Measurement Range

SUNDOO LP-5810 pot type Thickness Gauge is a pot type Thickness Gauge, LP-5810 pot type Thickness Gauge thickness range of 0~10mm, LP-5810 pot type Thickness Gauge Graduation of 0.01mm.
Model：
Certificate
Contact
Details SPEC CAT

SUNDOO LP-5810 Thickness Gauge (pot type)SPEC

SUNDOO LP-5810 Thickness Gauge (pot type)Details

SUNDOO LP-5810 Thickness Gauge (pot type)Packing list

SKU
NB002980
Measurement range
0~10mm
Measurement Accuracy
±0.02mm
reading display
Pointer
Graduation
0.01mm
Hou Shen
16mm
Weight
About 0.5kg
application
solid material
LP-5810
Thickness Gauge (pot type)

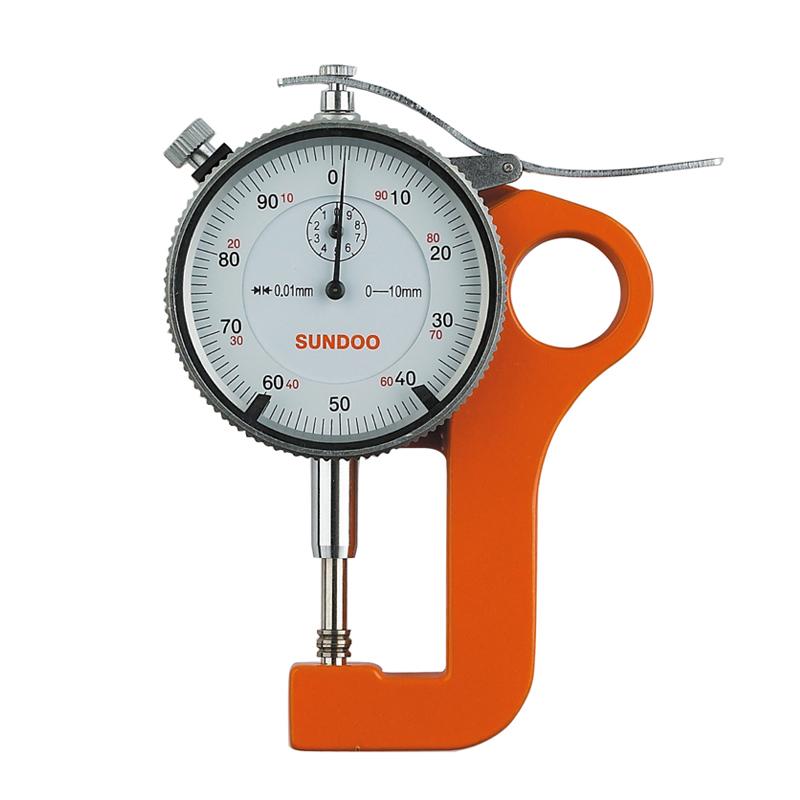

Sandu LP-5810 Pot Thickness Gauge 0~10mm Thickness Measurement Range Picture

Introduction to the LP-5810 Handle Thickness Gauge

Shandu Instrument LP-5810 Teapot Thickness Gauge is a pointer Thickness Gauge for testing solid materials, the shape design is similar to the shape of a teapot, and the large contact opening can be used for testing materials with a large test area. LP-5810 Pot Thickness Gauge has a thickness range of 0~10mm, and the measurement indication error is ±0.02mm. The LP-5810 Handle Thickness Gauge offers the advantages of stable testing and simple operation.

LP-5810 Pot Thickness Gauge Display

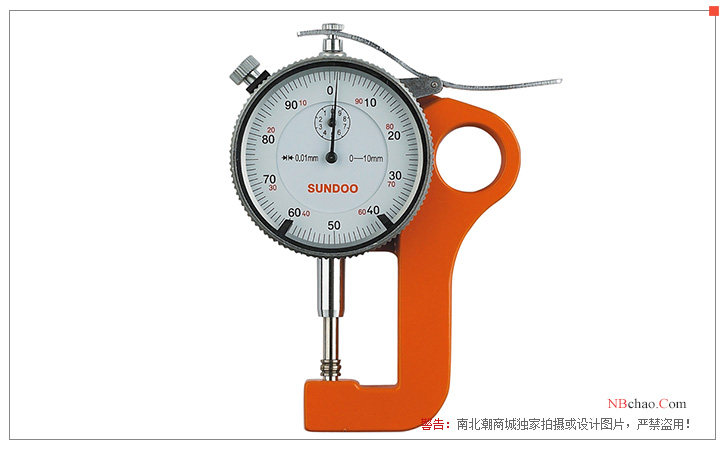

Appearance of Shandu Instrument LP-5810 Lifting Pot Thickness Gauge

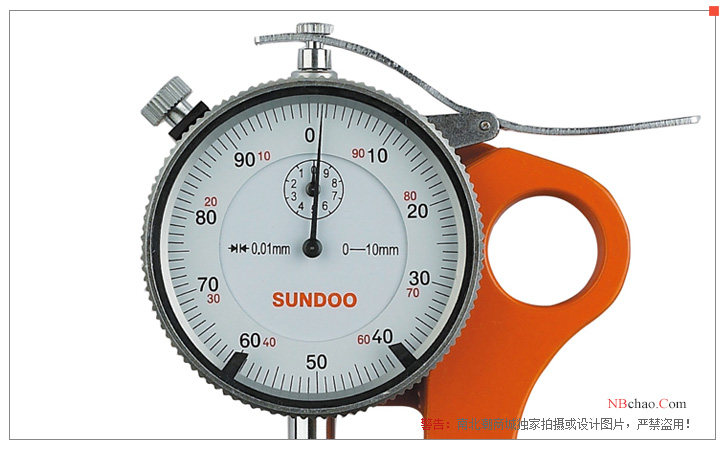

Detail drawing of Shandu Instrument LP-5810 teapot Thickness Gauge dashboard


FAQ
QCan all thickness gauges be used for testing in the QB/T1055 standard?
A Not necessarily, but this LP-5810 thickness gauge (pot type) can be considered.
