Specifications
| High Voltage manual pump Working pressure | 55Mpa |
| High Voltage manual pump plunger diameter | 12mm |
| High Voltage manual pump Mass | 5kg |
| Maximum pulling force of hydraulic cylinder | 100kN |
| Hydraulic cylinder center aperture | 27mm |
| Hydraulic cylinder piston stroke | 60mm |
| Hydraulic cylinder Mass | 6kg |
| Pressure gauge Measurement Range | 0~100KN |
| Pressure gauge Power | 1 9V battery |
| Pressure gauge Mass | 0.4kg |
| Resolution | 0.01KN |
| Pressure gauge indication error | ≤±2%F.S |
Packing list

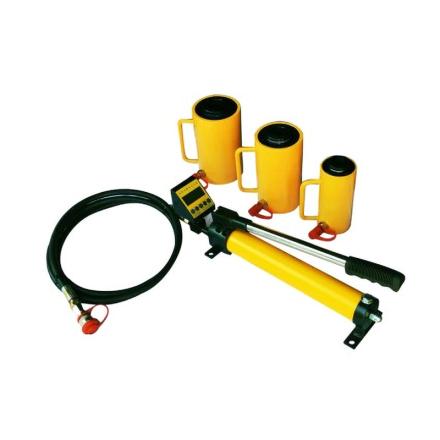

Hollow hydraulic cylinder X1, manual pump X1, digital pressure gauge X1, high voltage hose X1, manual X1, warranty card X1, certificate X1, test certificate X1
After-sales instructions
Warranty days: 1095 days
If the product quality is not caused by human beings, the manufacturer provides 3 years of free warranty service, except for accessories and consumables
[Note] For after-sales services outside the Chinese mainland, if the instrument requires repair, the shipping and possible associated taxes shall be borne by the sender. Generation address of the manual: http://en.nbchao.com/p/29815/Specification.html , which is only used by users who purchase commodities from the NBCHAO.
