TIANDIXINGHUO XH-30T Bolt Tension Gauge, hydraulic cylinder, hollow self-resetting 300kN

XH-30T

Bolt Tension Gauge

The maximum pull-out force is 300kN, the central aperture is 35mm, and the pump body is made of precision cast steel with strong durability. The digital pressure gauge directly reads the tensile force value, and the structure is compact and portable.

XH-10T/15T/30T Bolt TensIon Meter (pullout instrument) is suitable for testing the anchoring force of anchors such as anchors, anchor cables, steel bars, and anchor bolts. It is one of the instruments required for quality inspection of anchor construction and support projects. one.

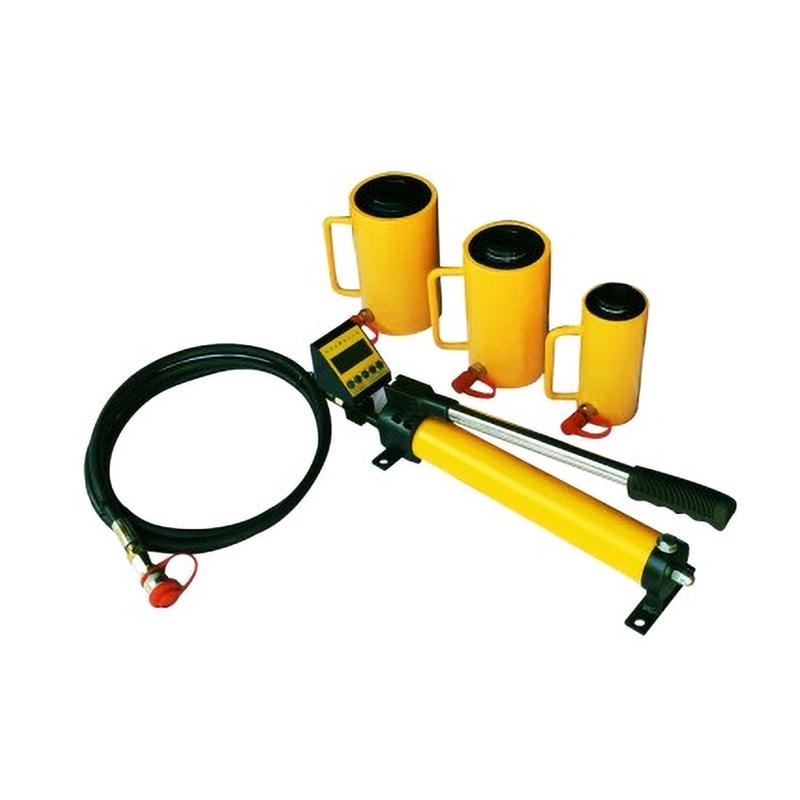

The tension gauge is composed of manual pump, hydraulic cylinder, digital pressure gauge and high-pressure rubber hose. The pump body is made of precision cast steel with long service life. The hydraulic cylinder is a hollow self-resetting type, and the XH series hollow cylinder has a handle and can be connected with a high-pressure hose through a quick connector. The reading of the digital pressure gauge is intuitive, which can directly read the value of the tension (kn) of the anchor rod. This series of tension gauges is compact in structure, easy to carry, small in size and light in weight.

Rally gauge manual pump can also be used as a power source for general small flow high pressure oil.

Principle

The Principle of the Anchor TensIon Meter (pullout instrument) is: when the center hole of the jack is covered with the measured rod, select a suitable clamp to clamp the part of the measured rod exposed from the center hole; under the action of the hydraulic pressure of the pressure pump After the oil pressure is transmitted to the cylinder body of the jack through the oil pipe, the piston rod moves outward against the special chuck; the pressure directly acts on the anchor shell, and then transmits to the clip, which clamps the rod under test after being stressed , and eventually the rod is subjected to an outward pulling force; at this time, the pressure gauge on the pressure pump displays the corresponding force (kN) value, which reflects the magnitude of the pulling force on the measured rod.

If the above-mentioned bar is a steel bar, the magnitude of the anchoring force on the steel bar can be measured. After the tensIon Meter is tested, it is necessary to manually remove the anchor with a small force of shaking and vibration, so that the pulling jack can be easily removed.

Packing list：Hollow hydraulic cylinder X1, manual pump X1, digital pressure gauge X1, high voltage hose X1, manual X1, warranty card X1, certificate X1, test certificate X1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
