XINGHUO XH-6000N Bond strength Tester smart integrated

XH-6000N

Bond strength Tester

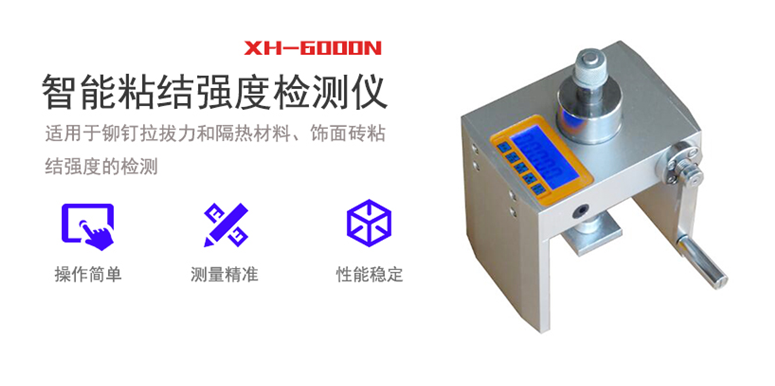

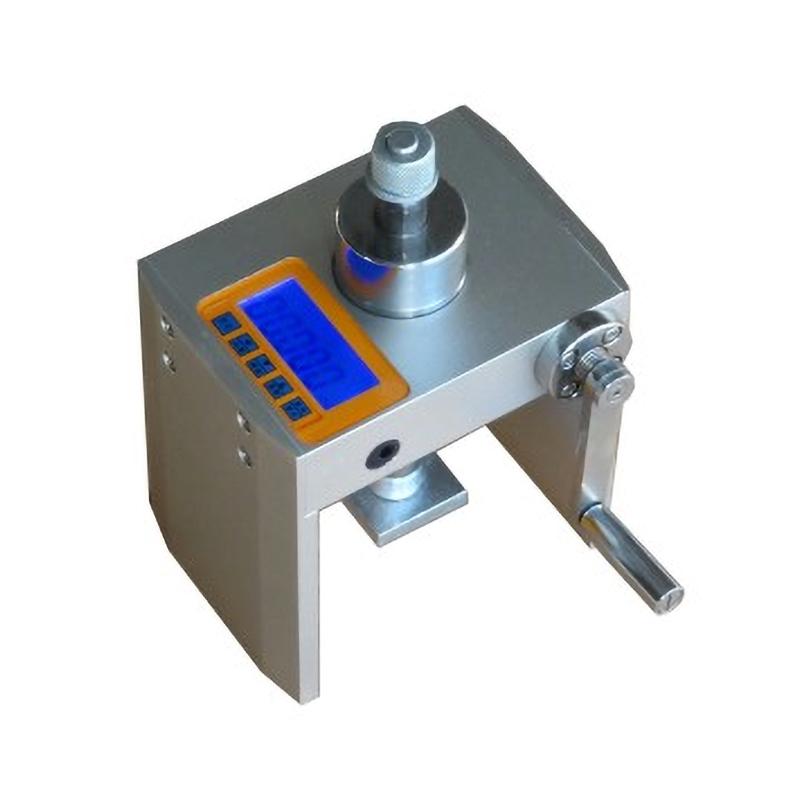

XH-6000N intelligent high-precision bond (tensile) strength Tester is a product of Beijing Tiandi Xinghuo Technology Development Co., Ltd. based on the industry standard of the People's Republic of CHINA "Construction Engineering Facing Brick Bond Strength Test Standard" (JGJ 110-2008) and " Technical Regulations for Exterior Wall External Thermal Insulation Engineering (JGJ 144-2008) was specially developed for testing the bonding strength of facing bricks and external wall thermal insulation materials. According to the requirements of "Construction Engineering Facing Brick Bonding Strength Test Standard" (JGJ 110-2008), the specifications of the standard block are 95mm×45mm and 40mm×40mm, and the external wall insulation is 40mm×40mm and 100mm×100mm. , their minimum tensile force is 0.64kN and the maximum tensile force is 2.56kN when they meet the qualified requirements. During the development of the Detector, aiming at the characteristics of low bonding strength and small bonding force of facing bricks, the maximum pulling force is designed as 6.00kN to ensure the detection accuracy of various bonding forces. The manual oil pump is integrated with a special through-hole jack, which is compact in structure and durable, and can be loaded continuously and evenly. The digital display system is used to display the value of the adhesive force. The system can automatically and accurately record the peak value of the adhesive force and maintain it. The machine weighs about 2 kg. Each instrument is tested and qualified by the unit before leaving the factory.

XH-6000N intelligent high-precision bond (tensile) strength Tester is a substitute product for large volume, complicated structure and inconvenient operation Testers. It has been used in many construction units, engineering quality supervision and inspection centers (stations) and supervision units across the country. It has been widely used and welcomed by the majority of engineering and technical personnel

Packing list：Digital display host X1, 40 * 40 standard block X3, 45 * 95 standard block X3, universal tie rod X1, charger X1, certificate X1, warranty card X1, instrument case X1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
