Specifications
| Measurement principle | Hall effect/eddy Current |
| Measurement range | Fe:0.0~5000μm；NFe:0.0~3000μm |
| margin of error | ±3~5% |
| Resolution | 0.1μm|1μm|0.01mm |
| Minimum measurement surface | Φ25mm |
| Minimum radius of curvature | Convex: 5mm; Concave: 25mm |
| thinnest substrate | 0.2mm(F)；0.05mm(N) |
| probe | Line probe |
| Probe size | 22*26*55mm |
| Probe material | ruby |
| Calibrated mode | No need to calibrate, just zero |
| Measurement mode | "Fe"、"NFe"、"Fe/NFe" |
| Unit display | μm/mil |
| Power Supply | 2 1.5V AA alkaline batteries |
| Standards | GB/T4956-2003、GB/T4957-2003、DIN EN ISO 2808、JJG-818-2005 |
| system language | Chinese |
| Display screen | 128x |
| Operating temperature | 0~50℃ |
| Print function | none |
| Machine Weight | 160g |
| Machine size | 126*66*35mm |
| Storage temperature | -20~60℃ |
Packing list

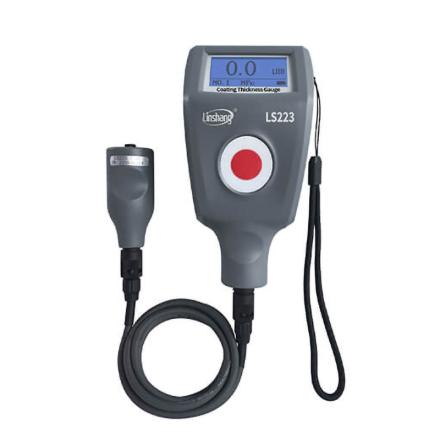

LS223 Coating thickness gauge x1, Fe zero plate x1, NFe zero plate x1, standard sheet x1, manual x1, certificate x1, 1.5V AA alkaline battery x2
After-sales instructions
None
[Note] For after-sales services outside the Chinese mainland, if the instrument requires repair, the shipping and possible associated taxes shall be borne by the sender. Generation address of the manual: http://en.nbchao.com/p/29833/Specification.html , which is only used by users who purchase commodities from the NBCHAO.
