JINGTIAN KU-2 Stormer Viscometer KU Fluid Viscosity

SE
The range is 40~141KU, 32~ 1099g, 27~ 5274cP, with blue backlit LCD, in line with ASTM D562 industrial standard, and the speed is 200 rpm.
Model：
Certificate
Contact
Details SPEC CAT OI
Similar products

JingTian KU-2 Stormer ViscometerSPEC

JingTian KU-2 Stormer ViscometerDetails

JingTian KU-2 Stormer ViscometerPacking list

SKU
NB029839
Measuring range
40 ~ 141KU, 32 ~ 1099g, 27 ~ 5274cP
Swirl/spin speed
200rpm
Accuracy
±1%FS
Power
Dedicated power adapter (input 100~240V 50~60Hz)
Lifting method
Knob lift
Unit display
KU / g / cP
KU-2
Stormer Viscometer
The range is 40~141KU, 32~ 1099g, 27~ 5274cP, with blue backlit LCD, in line with ASTM D562 industrial standard, and the speed is 200 rpm.

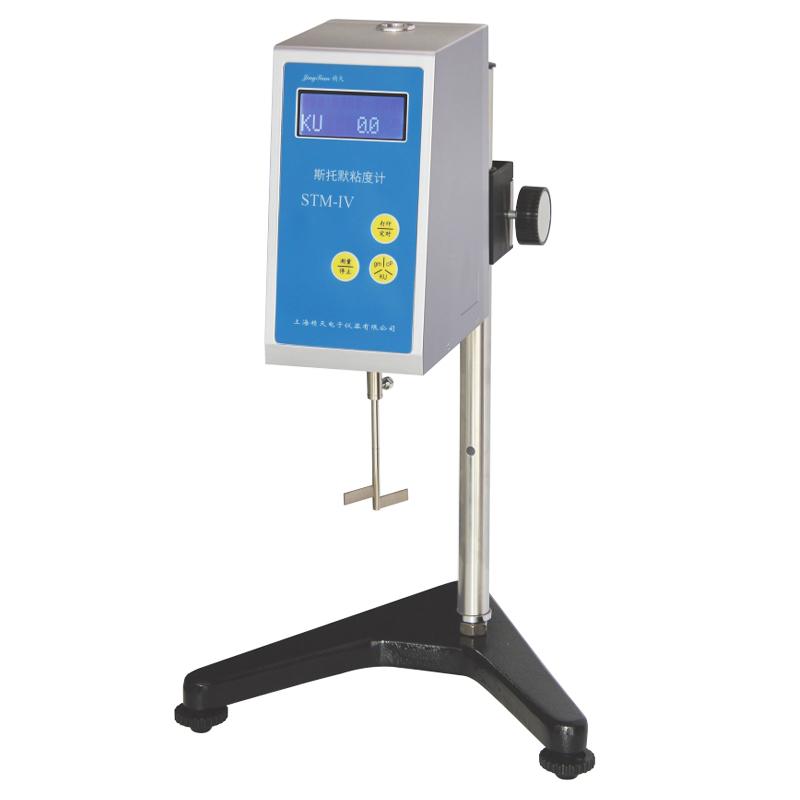

JINGTIAN KU-2 Stormer Viscometer KU Fluid Viscosity Picture

KU-2 Stormer Viscometer is a test instrument specially used to measure the viscosity of fluids such as paints and coatings in units of Krebs (ie KU value). Via the function keys, the blue backlit LCD display can cycle through Krebs units (KU), gram units (gm) and viscosity values in centipoise (cP).

The instrument adopts a 16-bit microprocessor core control circuit. The paddle rotor rotates at a speed of 200 rpm. The resistance torque it receives in the measured fluid is converted into KU value by the computer and directly displayed on the screen. Refer to ASTM D562 Industry standard, can be converted between KU, gm, cP.

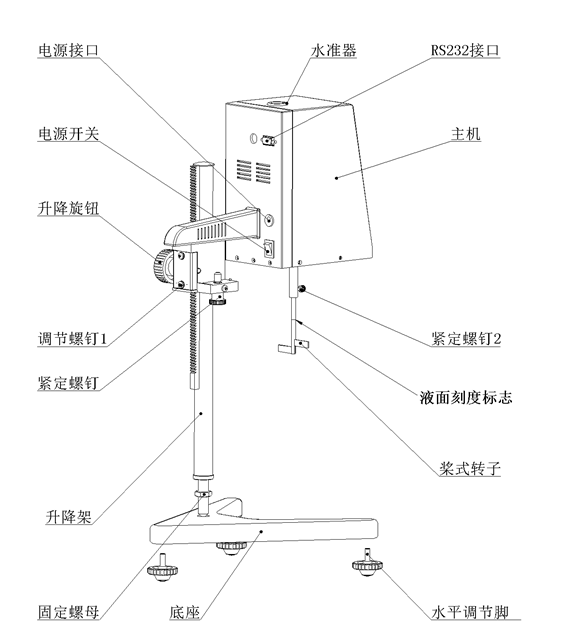

structure diagram

Details of JINGTIAN KU-2 Stormer Viscometer Figure 1


FAQ
QStormer Viscometer is cost-effective. Do you have any recommendations?
A KU-2 Stormer Viscometer for Measurement
QWhat does a dot on Stormer Viscometer's Impeller mean?
A That's the page scale sign.
QThe Viscometer test does not show a viscosity value. What ------， KU?
A This is generally the sample viscosity beyond the Measurement range of the instrument.
QIs this Stormer Viscometer JJG1002 compliant?
A The Stormer Viscometer is suitable for JJG1002, please consult customer service for detailed application definition
QWhat is the measurement error of this KU-2 Stormer Viscometer?
A Hello, the measurement error is ± 1% FS.
QI haven't done any testing before, and I don't know how to do it. How to choose a Viscometer?
A It is easy to make the results of the viscosity test. After the measurement, he said that it is different from others, so it is wrangling. If the next home has viscosity requirements for his products, ask the next home for detection methods. If the purchase inspection, ask the previous home for Measurement conditions and methods. There are many viscosity measurement methods, and the measurement results cannot be converted.
