China

Seitian STM-IV Stormer Viscometer KU/gm/cP

SE
Measuring range 40~141KU, 32~ 1099g, 27~ 5274cP, swirl/spin speed 200rpm, measurement error ± 1% FS, repeability ± 0.5% FS.
Model：
Certificate
Contact
Details SPEC CATCAT
Similar products

JingTian STM-IV Stormer ViscometerSPEC

JingTian STM-IV Stormer ViscometerDetails

JingTian STM-IV Stormer ViscometerPacking list

SKU
NB029840
Measuring range
40 ~ 141KU, 32 ~ 1099g, 27 ~ 5274cP
Swirl/spin speed
200rpm
Accuracy
±1%FS
Power
Dedicated power adapter (input 100~240V 50~60Hz)
Lifting method
Knob lift
Unit display
KU / g / cP
STM-IV
Stormer Viscometer
Measuring range 40~141KU, 32~ 1099g, 27~ 5274cP, swirl/spin speed 200rpm, measurement error ± 1% FS, repeability ± 0.5% FS.

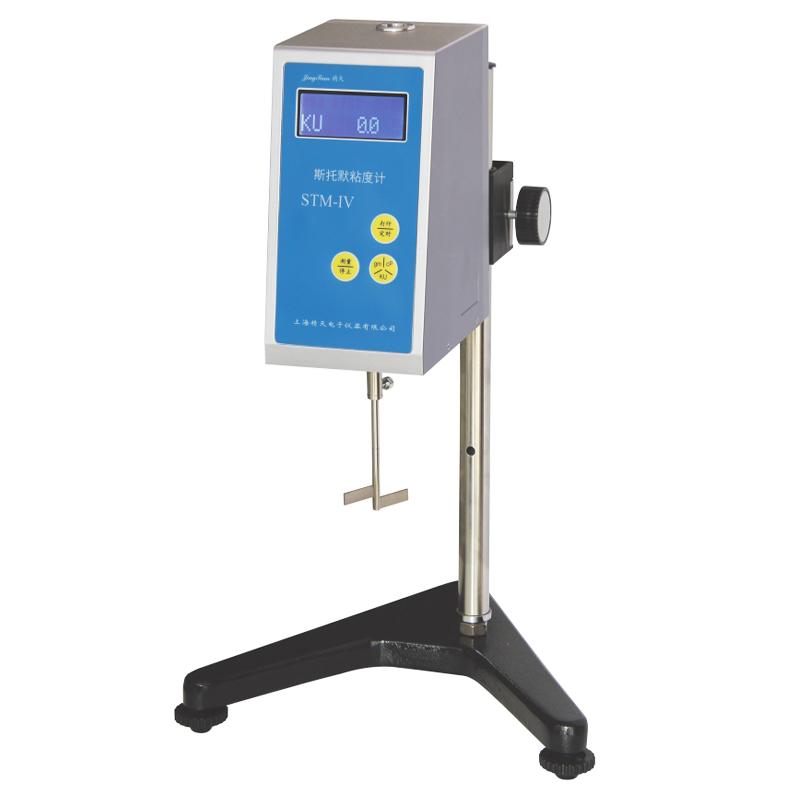

Seitian STM-IV Stormer Viscometer KU/gm/cP Picture

STM-Ⅳ Stormer Viscometer is a test instrument specially used to measure the viscosity of fluids such as paints and coatings with Krebs as the unit (ie KU value). Via the function keys, the blue backlit LCD display can cycle through Krebs units (KU), gram units (gm) and viscosity values in centipoise (cP).

The instrument adopts a 16-bit microprocessor core control circuit. The paddle rotor rotates at a speed of 200 rpm. The resistance torque it receives in the measured fluid is converted into KU value by the computer and directly displayed on the screen. Refer to ASTM D562 Industry standard, can be converted between KU, gm, cP.

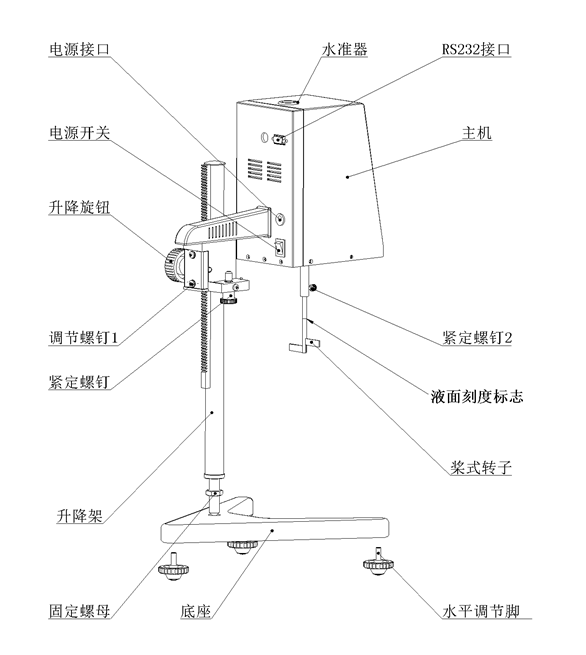

structure diagram

Details of JINGTIAN STM-IV Stormer Viscometer Figure 1


FAQ
QWhat do Viscometers recommend for testing fire-proof coatings, putty paste, etc.?
A This Stormer Viscometer is suitable.
QNeed to be able to measure Coating 20-80KU Viscometer, Measurement range 20 I checked that most of them are in the range of 42-141KU. Can you measure 20KU?
A Stormer Viscometer range is 40-141KU, below 40KU cannot be measured
QAre all Stormer Viscometers available for inspection in the ASTMD 562 standard?
A Not necessarily, but this STM-IV Stormer Viscometer can be considered.
QWhat is the rotational speed of the STM-IV Stormer Viscometer rotor?
A Hello, swirl/spin speed 200rpm.
QIs the viscosity of the emulsion paint measured with this Stormer Viscometer or rotational viscometer?
A With this Stormer Viscometer, it is also a rotational viscometer, but the unit is different.
QI haven't done any testing before, and I don't know how to do it. How to choose a Viscometer?
A It is easy to make the results of the viscosity test. After the measurement, he said that it is different from others, so it is wrangling. If the next home has viscosity requirements for his products, ask the next home for detection methods. If the purchase inspection, ask the previous home for Measurement conditions and methods. There are many viscosity measurement methods, and the measurement results cannot be converted.
