JININGCHAOSHENG AL200 Leeb Hardness Tester

JININGCHAOSHENG electronic AL200 Leeb Hardness Tester supports 360 ° measurement direction and can store 500 sets of data. The AL200 Leeb Hardness Tester adopts LCD screen and transmits data through RS232 interface.
Model：
Contact
Details SPEC

JiNingChaoSheng AL200 Leeb Hardness TesterSPEC

JiNingChaoSheng AL200 Leeb Hardness TesterDetails

JiNingChaoSheng AL200 Leeb Hardness TesterPacking list

SKU
NB002999
Measurement range
170~960HLD、17~68.5HRC、19~651HB、80~976HV、30~100HS、59~85HRA(13 ~100)HRB
Measurement direction
360 ° (vertical down, diagonal down, horizontal, diagonal up, vertical up)
Hardness system
HL/HB/HRC/HRB/HRA/HV/HS
Display
Dot matrix LCD, 128 × 64 graphic dot matrix liquid crystal
Data storage
Maximum 600 Groups (Impact 32~ 1)
Power Supply
3V (2 AA size alkaline batteries in series)
Working time
About 50 hours (when the backlight is not turned on)
Communication interface
RS232
AL200
Leeb Hardness Tester
JININGCHAOSHENG AL200 Leeb Hardness Tester Picture

Description

AL200 is an innovative improvement in hardness measurement mechanism and circuit performance based on the existing Leeb hardness measuring instrument products. Through the innovation of technology and process and no less than 72 hours of factory aging treatment, the product has higher accuracy, more stable measurement value and stronger function. The unique advantages of AL200 are the two data processing solutions, a portable all-Chinese self-powered thermal high-speed printer and a humanized processing software connected to a PC. On-site printing is convenient and fast, quiet and flexible, so as to meet the on-site needs of different personalized users. Low-power design, connected to computer data exchange, mass storage. Low-power design, no less than 100 hours of standby time, AA No. 5 ordinary battery power, easy to carry, more flexible replacement. It is especially suitable for job sites and field operations.

Parameters

Measuring range:(170-960) HLD,(17-68.5)HRC,(19-651)HB,(80-976)HV,(30-100)HS,(59-85)HRA(13 -100)HRB

Measurement direction: support 360º (vertical down, oblique down, horizontal, oblique up, vertical up)

Hardness: Leeb (HL), Brinell (HB), Rockwell B (HRB), Rockwell C (HRC), Rockwell A (HRA), Vickers (HV), Shore (HS)

Display: dot matrix LCD, 128×64 graphic dot matrix LCD

Data storage: up to 500 groups (impact times 32~1)

Operating Voltage: 3V (2 AA size alkaline batteries in series)

Continuous working time: Approx. 50 hours (when the backlight is not on)

Communication interface standard: RS232


Applicable Materials

Steel & Cast Steel, Alloy Tool Steel, Stainless Steel, Grey Cast Iron, Ductile Iron, Cast Aluminium Alloy, Copper-Zinc Alloy (Brass), Copper-Tin Alloy (Bronze), Pure Copper, Forged Steel

Operating Conditions:

Ambient temperature: -20~+60°C operating temperature, -30°C~+60°C storage temperature

Relative Humidity ≤ 90%;

There is no strong vibration, no strong magnetic field, no corrosive medium and no serious dust in the surrounding environment.

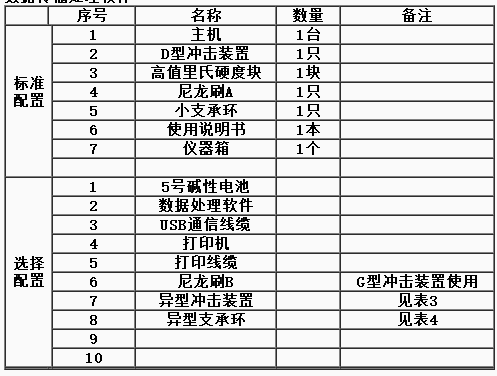

Instrument configuration

Data transfer processing software
