Specifications
| Sensors relative speed to wire rope | 0.0~12.0m/s; Best: 0.1m/s |
| Applicable rope diameter | Ф6-Ф14mm |
| Sensors guide sleeve and wire rope clearance | Optimum clearance: 2~ 6mm, allowable clearance: 0~15mm |
| Continuous detection of rope length | ≥9999m |
| Qualitative | The Accuracy rate of qualitative detection of single centralized broken wire is 99.9%. |
| Detection sensitivity Repeatability tolerance error | ±0.055% |
| quantitative | The number of broken wires in a single place allows one or one equivalent root to be misjudged |
| Detection Accuracy indication allowable error | ±0.2％ |
| Detection length indication percentage error | ±0.2% |
| Battery Sensitivity | U/H≥1.0V/mT |
| Battery induction Signal-to-noise ratio | S/N＞85dB |
| Sampling Frequency | 5000Hz |
| Power Supply | Computer battery powered by 5V |
| Sensors Weight | Common specification < 10kg |
| Environmental temperature | -20℃~+50℃ |
| atmospheric pressure | 86~206Kpa |
| Relative Humidity | ≤85% |
Packing list

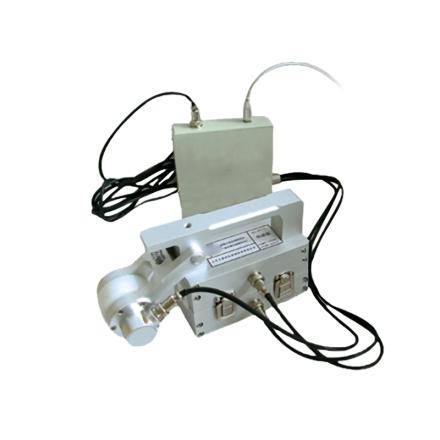

FC300 excitation magnetic sampling Sensors x1, D6016 excitation magnetic sampling Sensors x1, VTS digital converter x1, 8344 signal adapter cable x1, USB serial port conversion cable x1, V3.0 version processing software package x1, standard Encasement box x1, safety cable x1, training personnel use certificate x3, product factory inspection report x1
After-sales instructions
Warranty days: 365 days
