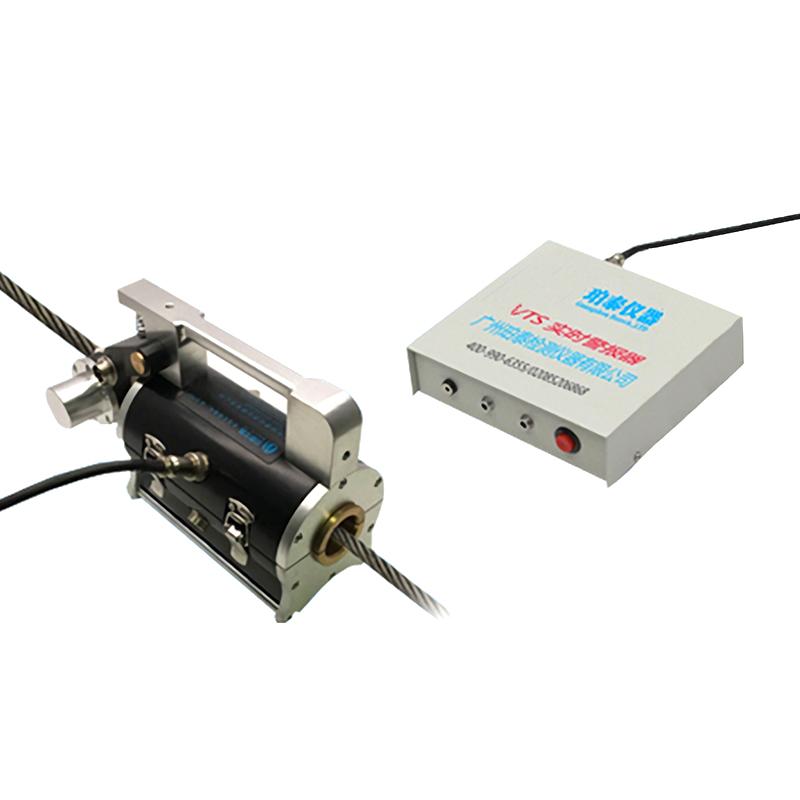

PORUIKE VTS-6A Wire rope Flaw Detector Copper core Precision type

VTS-6A

Wire rope Flaw Detector

Introduction

VTS-6A wire rope flaw Detector is a new non-destructive testing product developed by Perrick, which is based on the principle of magnetic flux leakage, which can detect defects such as broken wire, rust and wear inside and outside the wire rope in real time, and can calculate the quantitative value of the change of metal cross-sectional area, and can generate a diagnostic report in accordance with the current standards and procedures. With the help of the dynamic continuous tracking mode, the changes of the data signal can be continuously and dynamically observed, and the detection results can be displayed in real time, and the alarm signal can be issued in real time. It also has an automatic evaluation function. The instrument is easy to carry, simple to operate, high detection accuracy, good repeatability, and accurate damage location.

Features

◆ It can detect various defects such as broken wire, wear, rust, deformation, loose strands, skipping wire, material change and other defects of wire rope online.

◆The test result report can meet the standards of different industries, and at the same time, it is displayed in the form of the ratio of the number of broken wires and the broken wire area to the total broken wire area.

◆ The computer USB interface is used for direct sampling, processing and analysis, with the functions of online sound and light alarm and real-time display of results.

◆ The circular structure of the sensor, circumferential surrounding, and axial magnetization make the wire rope instantaneously magnetized to a saturated state.

◆The sensor adopts alloy aluminum shell and built-in tungsten copper sensor. It has the functions of waterproof, dustproof, shockproof and moisture-proof.

◆ Stable work, reliable performance, high detection accuracy, strong anti-interference performance, accurate data.

◆ The software adapts to various computer operating systems of Windows98/2000/XP/Vista/Windows7

◆According to the provisions of the National Metrology Law and the National Safety Production Law, each instrument is inspected by the national metrology agency as a third party according to the United States ASTM1571 American standards, and a test report is issued to obtain legal qualifications.

◆ Widely used in mines, ropeways, lifting equipment, elevators, port machinery, cable bridges and other fields.

Technical core and legal qualifications

1. Virtual Instrument: Wire rope is infinitely uncertain. Only by applying virtual instrument technology, replacing traditional instruments with software, and directly sampling and processing by the computer, can we ensure that there is no missed detection and no misjudgment, just like watching a movie, the wire rope is scanned throughout the process, and the results are accurate and repeatable.

2. Sanding Instrument: According to the national standards for the scrapping of wire ropes in different industries, this product applies electromagnetic qualitative, quantitative and positioning, and online non-destructive detection of internal and external wire rope breakage, corrosion, wear, metal cross-sectional area change, loose strands, wire jumping, deformation, material abnormalities and other defects.

3. Legal instruments: According to the provisions of the National Metrology Law and the National Safety Production Law, each instrument is inspected by the national metrology agency according to the American ASTM1571-2006 American standard and GB/T21387-2008 as a third party, and a test report is issued to obtain legal qualifications.

Packing list：FC300 excitation magnetic sampling Sensors x1, D6016 excitation magnetic sampling Sensors x1, VTS digital converter x1, 8344 signal adapter cable x1, USB serial port conversion cable x1, V3.0 version processing software package x1, standard Encasement box x1, safety cable x1, training personnel use certificate x3, product factory inspection report x1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
