Specifications
| Measurement principle | Eddy Current |
| Measurement range | 0~1250μm |
| margin of error | +/- [3% H + 1.5] (one point calibrated ）； +/- [( 1~ 3) % H + 1.5] (two point calibrated) |
| Resolution | 0.1μm |
| Minimum measurement surface | Φ5mm |
| Minimum radius of curvature | Convex 3mm |
| thinnest substrate | 0.3mm |
| probe | Line probe |
| Calibrated Certificate | none |
| Calibrated mode | One point calibrated, two point calibrated |
| Measurement mode | Continuous Measurement mode and Single Measurement mode |
| Unit display | μm |
| statistical function | Measurement times, MAX Maximum, MIN Minimum, Average, Standard deviation |
| Interface | USB port |
| Data storage | 500 Measured values |
| Power Supply | AA (AA) battery |
| system language | Chinese |
| Display screen | LCD liquid crystal display |
| Operating temperature | 0-40℃ |
| Relative Humidity | 20~90%RH |
| Connect computer | Can connect to computer (optional) |
| shutdown mode | Manual/Automatic |
| Operating Mode | Direct mode and group mode |
Packing list

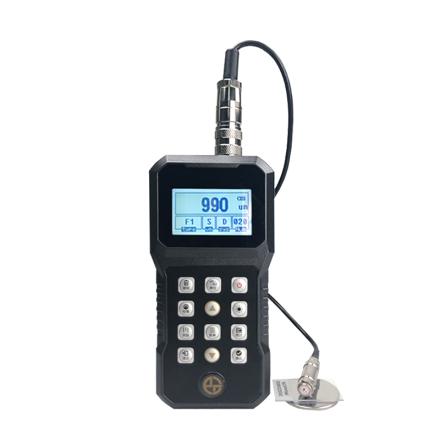

BCT-210C host x1, non-iron-based probe (NF) x1, zero-calibrated base x1, standard test piece x1, AA battery (No. 5) x2, Encasement box x1, operation guide x1, certificate x1, warranty card x1, USB data cable x1
After-sales instructions
Warranty days: 365 days
[Note] For after-sales services outside the Chinese mainland, if the instrument requires repair, the shipping and possible associated taxes shall be borne by the sender. Generation address of the manual: http://en.nbchao.com/p/30000/Specification.html , which is only used by users who purchase commodities from the NBCHAO.
