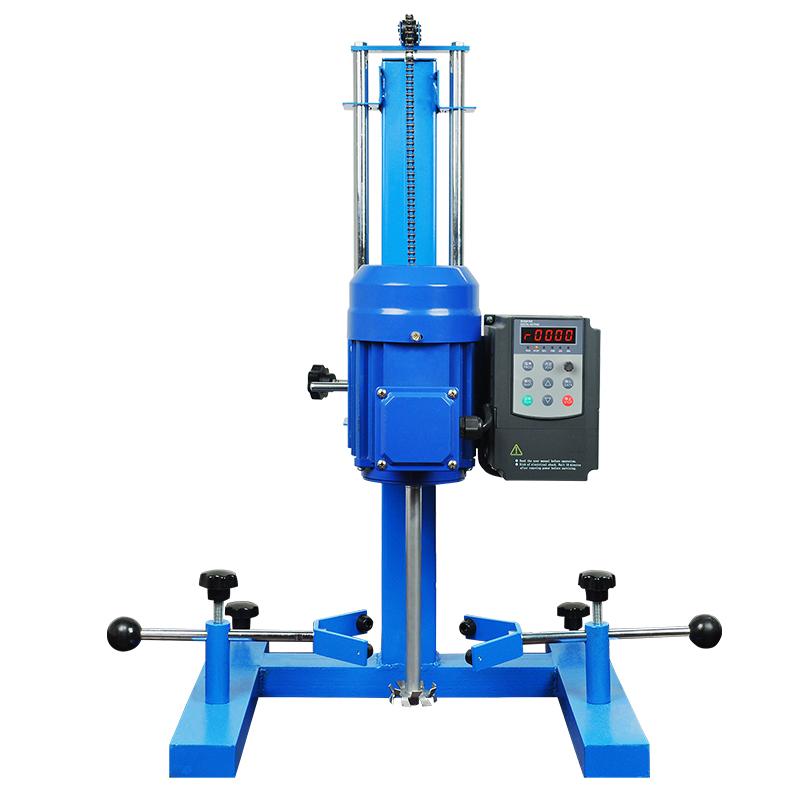

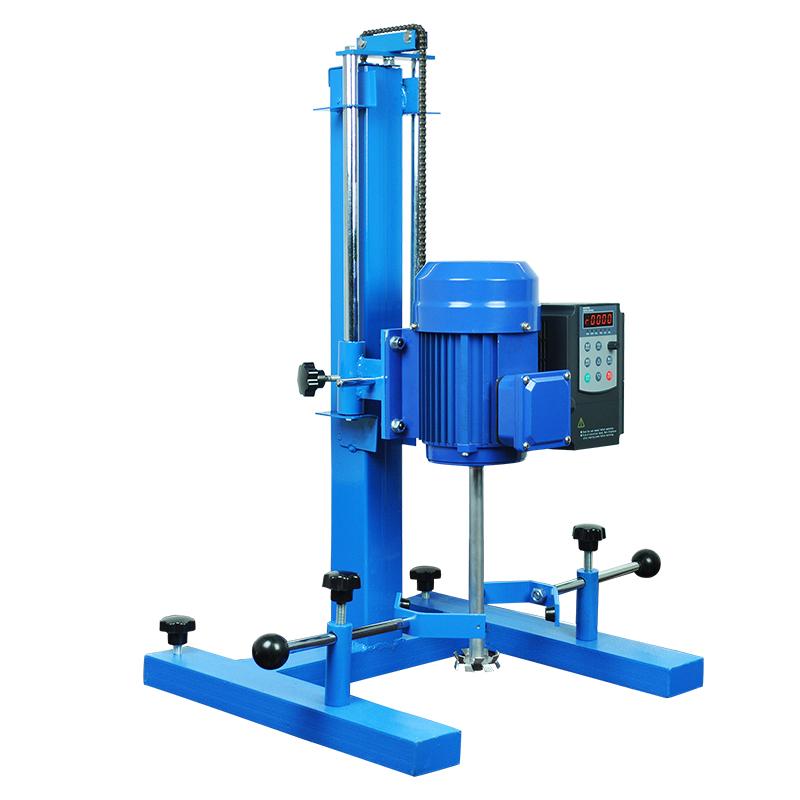

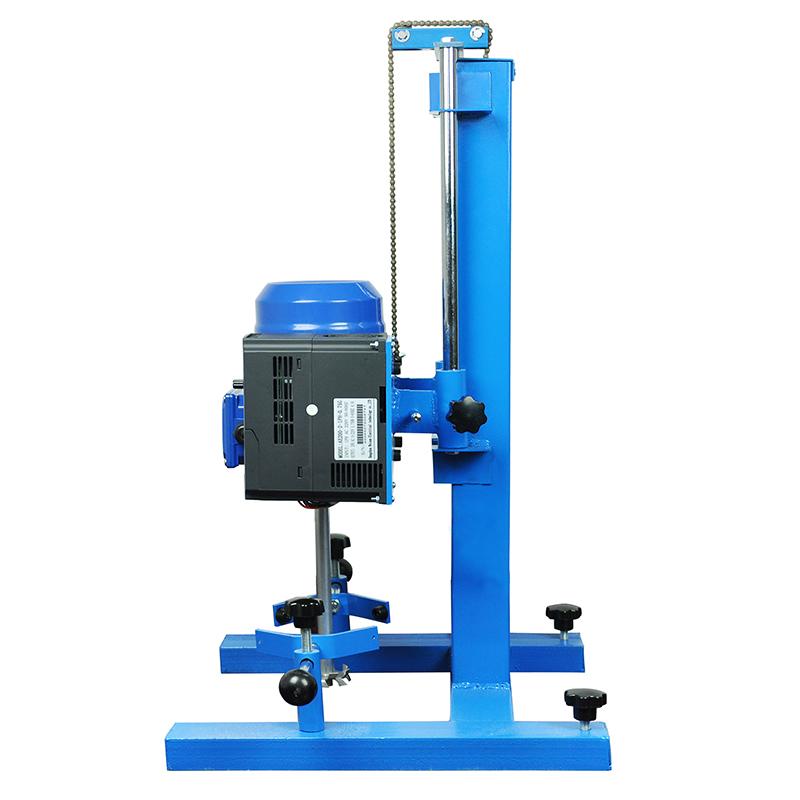

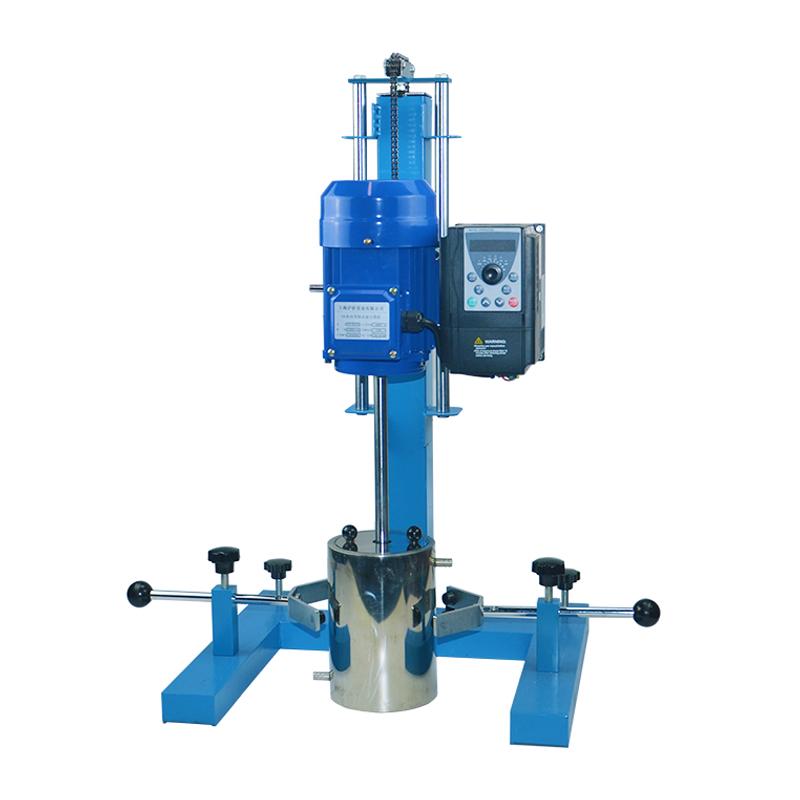

HUXI HR-550JFS Laboratory High Speed ground Disperser frequency conversion, square tube 550W/5L

HR-550JFS

Laboratory High Speed ground Disperser

220V, 5L, 550W, Rotation speed 0~8000rpm, chain lift, lifting stroke 260mm

1. Product introduction

The high-speed disperser is a high-performance product newly developed according to the development trend of international professional dispersion equipment. The equipment integrates the dispersion function and the mixing function, and the two processes of dispersion and grinding are completed by one machine and one container. High efficiency, good mixing effect, easy to clean. Easy and convenient lifting. It is widely used in factories, scientific research institutions, colleges and universities and medical units for the dispersion and mixing of materials in liquids.

2. Product features

• The inverter motor is selected, stable operation, low noise, can run for a long time, and is designed to be safe and reliable.

• The dispersion disc is made of good stainless steel and has good corrosion resistance.

• The dispersion disc is connected with the dispersion shaft by hexagonal screws, which is easy and flexible to disassemble and assemble.

• Frequency conversion stepless speed regulation, brushless motor, maintenance-free, no spark, no dust, higher safety performance, ordinary bracket, manual chain lifting.

3. Working principle

This equipment adopts electronic constant force speed regulation line, digital direct display of shaft speed, and is equipped with dispersion impeller and sanding disc. It can adapt to different laboratory test needs and provide correct process data for large-scale production based on the relationship between the displayed shaft speed and the viscosity of the material and the rate of chemical reaction.

The dispersion head of this machine is driven by the high speed of the motor, which produces a high linear speed of rotation tangential, and the material produces strong hydraulic shear and high-frequency mechanical effects under the action of huge centrifugal force, so that the fluid material can withstand thousands of times of shear and high-frequency mechanical effects per minute, so as to achieve the effect of efficient mixing, dispersion and homogenization.

Working schematic:

4. Scope of application and main technical parameters

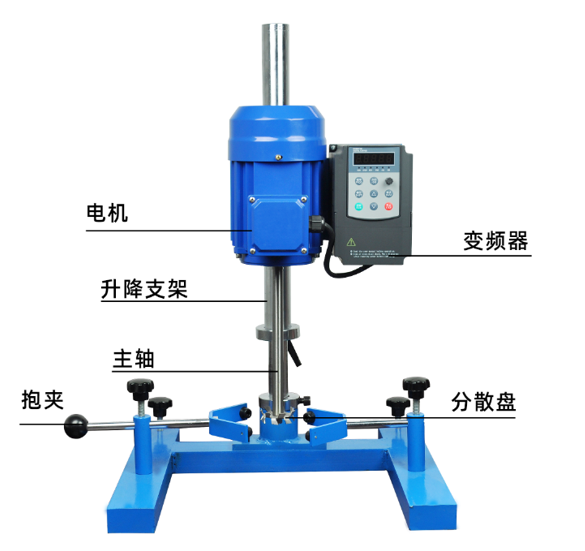

5. Equipment structure drawing

This machine is mainly composed of the following parts:

1. Motor

2. Frequency converter

3. Lifting bracket

4. Solid clamp

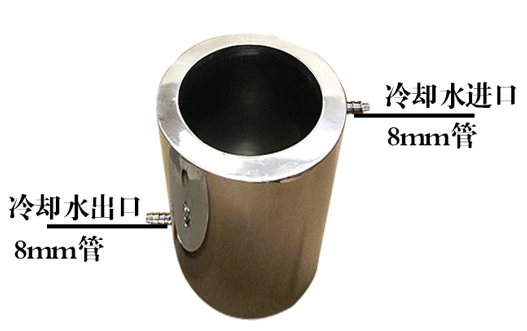

5. Stainless steel barrel

6. Dispersion disc/grinding wheel

Packing list：Host X1, clamp X2, dispersion disc X2, 1.5L material barrel X1, inner hexagon wrench X1, product certificate X1, product warranty card X1, instruction manual X1, inverter manual X1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
