Specifications
| Detection method | Positive half wave, negative half wave, full wave and RF |
| Horizontal Linearity | ≤ 0.2% |
| Detection range | 2.5~ 5000mm |
| Speed of sound | 1000~9999m/s |
| Frequency range | 0.2~15MHz |
| Gain range | 110dB (0.2, 0.5, 1, 2, 6, 12 steps) |
| Dynamic range | ≥ 34dB |
| Vertical Linearity | ≤ 3% |
| digital suppression | (0~80) %, does not affect linearity and gain |
| pulse shift | -20μs~3400μs |
| Scan resolution | 0.1mm（2.5~ 99.99mm）， 1mm（100~5000mm） |
| probe delay | 0~99.99μs, resolution 0.0125μs |
| Weight | 1.5Kg (including battery) |
| Dimensions | 243*173*85mm |

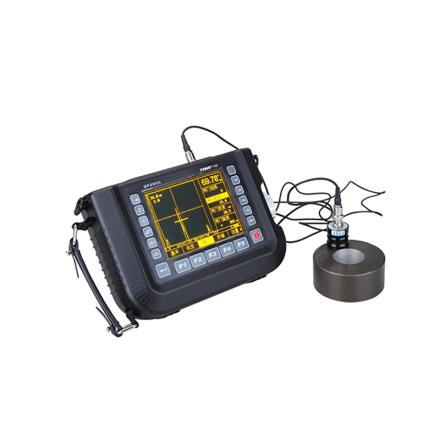

| Basic configuration | TIME1100 ultrasonic flaw detection (UFD) instrument host, straight probe 2.5P20, oblique probe 5MHz8 × 9K2, BNC probe connection cable, 3A/9V power adapter, coupling agent, USB cable, lithium battery |
| Optional Accessories | Ultrasonic flaw detection (UFD) instrument test block, PC communication software, serial communication cable (9 pins), ultrasonic flaw detection (UFD) instrument probe |
Packing list
Host x1, straight probe 2.5P20x1, oblique probe 5MHz8 × 9K2x1, BNC probe connection cable x1, 3A/9V power adapter x1, coupler x1, USB cable x1, lithium battery x1
After-sales instructions
Warranty days: 365 days
【Attention】
The purchase of this product is calculated from the date of receipt by the customer, and the warranty period is 1 year.
Freight sharing limit during the warranty period: the sender pays.
Damage caused by improper use is not covered by the warranty.
[Note] For after-sales services outside the Chinese mainland, if the instrument requires repair, the shipping and possible associated taxes shall be borne by the sender. Generation address of the manual: http://en.nbchao.com/p/301/Specification.html , which is only used by users who purchase commodities from the NBCHAO.
