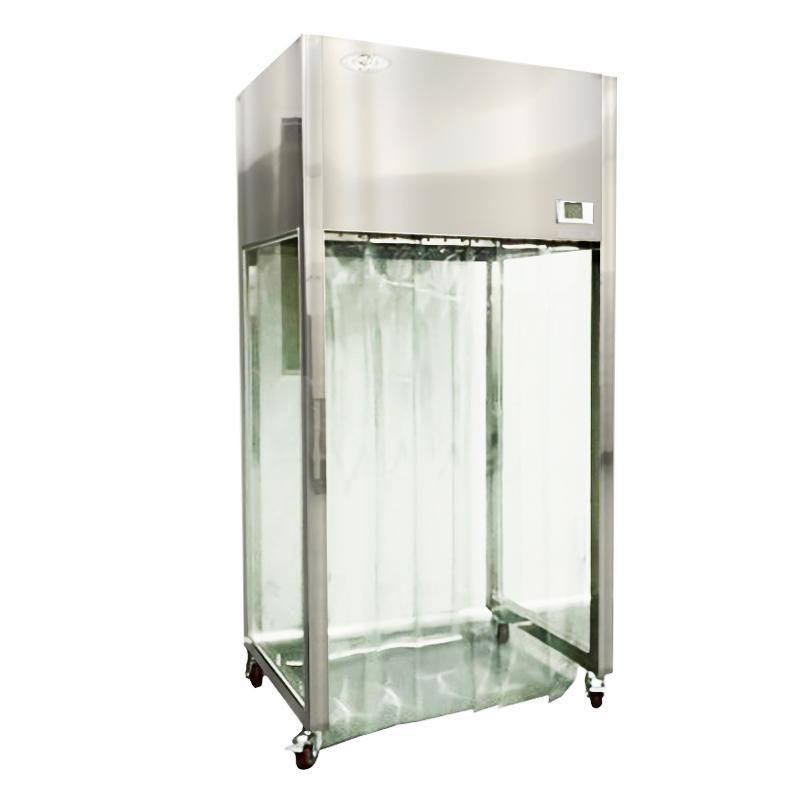

BOLEL PURIFICATION EQUIPMENT AJC-715 clean sampling vehicle (all stainless steel)
SE
JC-715 (all stainless steel)
BOLEL JC-715 (all stainless steel) Clean sampling vehicleSPEC
BOLEL JC-715 (all stainless steel) Clean sampling vehicleDetails
BOLEL JC-715 (all stainless steel) Clean sampling vehiclePacking list
- SKU
- NB030122
- Cleanliness class
- Level 100 - 300,000
- Average wind speed
- 0.3~0.6m/s
- Noise
- ≤62dB(A)
- Vibration Half-Amplitude
- ≤ 5 μm
- Illumrination degree
- ≥300Lx
- Power
- AC，220V/50Hz
- Maximum power consumption
- 0.5KW
- Weight
- 80kg
- Workspace size
- 570*570*1450mm
- Dimensions
- 715*715*1950mm
- Filter size
- 600*600*150mm*①
- Fluorescent lamp
- 20W*①
- Structural form
- Glass on both sides/front and rear soft curtains
- material
- stainless steel
- Standards
- GB1497-85 (Electric Installation Standard), GB-191 (Encasement Standard)
- UV Lamps
- 20W*①
Introduction
The clean sampling vehicle is a multifunctional and mobile sampling chamber designed and developed according to the requirements of GMP standards and the suggestions of professionals. The clean sampling vehicle is widely used in the sampling of raw materials in the pharmaceutical, preparation, electronics, precision instruments, food and other industries. The equipment has a cleanliness level of 10,000 (up to 100), and it is convenient to sample the raw materials of pharmaceutical preparations (except sterile preparations). The equipment has the advantages of simple structure, beautiful appearance, flexible movement, economical benefits, and convenient use. It is the required equipment for the implementation of GMP 26 sampling in the pharmaceutical industry. The electric components used at the same time comply with GB1497-85 (electric installation standard); meet the provisions of GB-191 (packaging standard). The electrical control panel of the clean sampling vehicle is controlled by computer light contacts, the fan is stepless speed regulation, the air volume can be adjusted arbitrarily, and it is equipped with ultraviolet sterilization lamps. It can be added as a clean sampling vehicle with a raised floor according to user requirements.
Comparison of parameters of 304 stainless steel sampling truck
| model | JC1000 | JC935 | JC715 |
| weight | 110kg | 100kg | 80kg |
| Working size (mm) | 860×570×1450 | 840×570×1450 | 570×570×1450 |
| Dimensions (mm) | 1000×715×1950 | 935*715*1950 | 715×715×1950 |
| effective filter | 820×600×150×① | 820×600×150×① | 600×600×150×① |
| Fluorescent lamp/UV lamp | 20W×①/20W×① | ||
| structure type | Glass on both sides / front and rear soft curtains | ||
| optional material | Painted steel plate/stainless steel | ||
