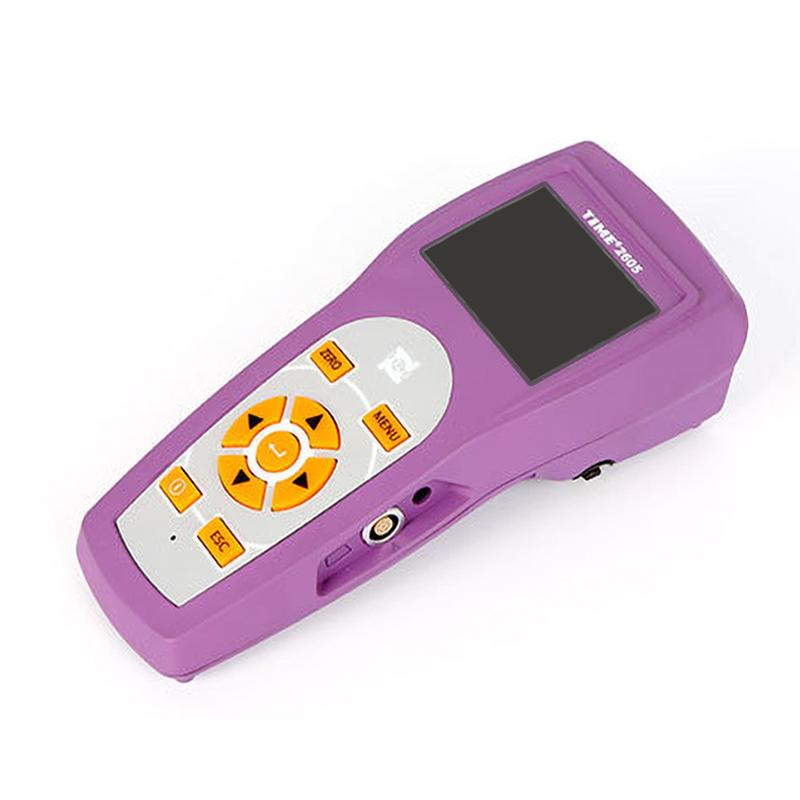

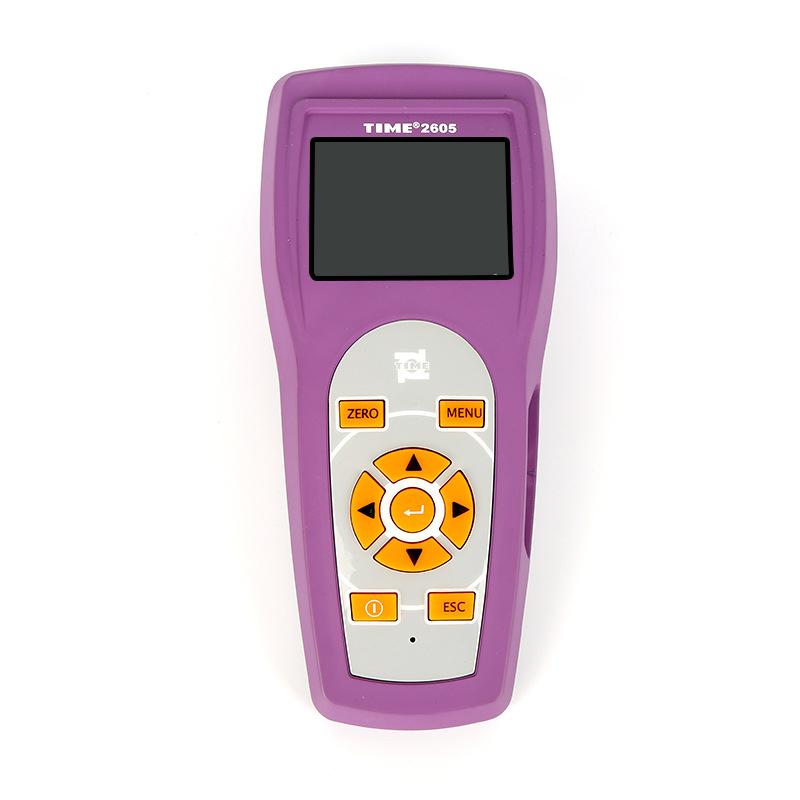

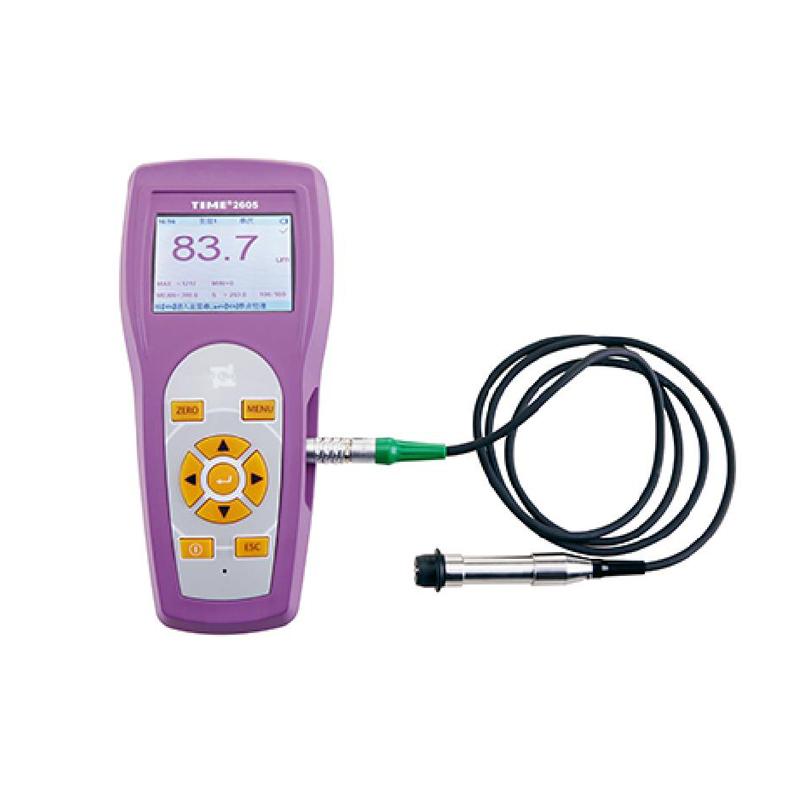

TIME2605 dual-use Coating Thickness Gauge 0~1250μm

TIME2605

Coating Thickness Gauge

Magnetic eddy current dual function paints Thickness Gauge, thickness range 0~1250μm, error range +/- (1% H + 1) μm, with zero and multi-point Adjustment, automatic alarm can be set.

product description

Beijing Times dual-purpose coating Thickness Gauge TIME2605 is a portable measuring instrument that can measure the thickness of coatings and coatings quickly, without damage, and accurately. It can be used both in the laboratory and on engineering sites. By using different probes, a variety of measurement needs can be met.

Standards compliant

GB/T 4956─1985 Magnetic method for measuring the thickness of non-magnetic covering layer on magnetic metal substrate

GB/T 4957─1985 Eddy current method for measuring thickness of non-conductive covering layer on non-magnetic metal substrate

JB/T 8393─1996 Magnetic and eddy current coating thickness measuring instrument

JJG 889─95 "Magnetoresistance Thickness Gauge"

JJG 818─93 "Eddy Current Thickness Gauge"

Applications

Beijing Times dual-purpose coating Thickness Gauge TIME2605 can be widely used in manufacturing, metal processing industry, chemical industry, commodity inspection and other testing fields. It is an instrument required by the material protection profession.

Features

• Two thickness measurement methods, magnetic and eddy current, are adopted, which can measure the thickness of the non-magnetic covering layer on the magnetic metal substrate and the thickness of the non-conductive covering layer on the non-magnetic metal substrate.

• Seven available probes: F1.5, N1.5, F1.5R, FN1.5, F3.5, FN3.5, F10

• Automatic recognition of probe: automatically identify iron-based (F), non-ferrous-based (N), dual-purpose type (FN)

• Automatically identify the base material: The dual-purpose (FN) probe can automatically identify the base material and perform measurements in the automatic mode;

• Multiple calibration methods: zero-point calibration and up to 5-point calibration;

• Two measurement methods: single measurement method (SINGLE) and continuous measurement method (CONTINUE);

• Two Operating Modes: direct mode (DIRECT) and batch mode (APPL);

• Five statistics: average value (MEAN), maximum value (MAX), minimum value (MIN), number of measurements (Times), standard deviation (S.DEV);

• Limits can be set: automatic alarm for measured values ​​outside the limits;

• Storage: 10,000 measurement values ​​can be stored, with a total of 100 batch groups available;

• Data deletion function: You can delete a single suspicious data that appears in the measurement, or delete all data in the storage area to facilitate new measurements;

• Data review function: The data in each batch after measurement can be reviewed;

• Adjustable screen brightness: The screen brightness is adjustable in 5 levels;

Applications

The instrument is a portable measuring instrument that can measure the thickness of coatings and coatings quickly, without damage, and accurately. It can be used both in the laboratory and on engineering sites. By using different probes, a variety of measurement needs can be met.

Packing list：host x1, probe x1, manual x1, certificate of conformity x1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
