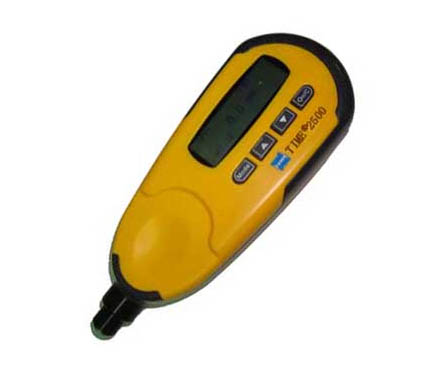

TIME2500 (formerly TT220) magnetic Thickness Gauge for nonmagnetic coatings on magnetic metal substrates

TIME2500

Thickness Gauge

Introduction

The TIME2500 Magnetic Thickness Gauge (formerly TT220) is an ultra-miniature coating Thickness Gauge with a built-in probe type Thickness Gauge with a yellow housing, an operating panel with only four buttons, and a small LCD display that displays the measured data with 5 different calibration plates.The measurement range of TIME2500 magnetic Thickness Gauge is 0~1250 microns, and it has two methods: zero point calibration and two-point calibration.

TIME2500 magnetic Thickness Gauge adopts the principle of magnetic induction measurement,It can quickly, non-damage and precise measurement of the thickness of the non-magnetic covering layer on the magnetic metal matrix, and is widely used in manufacturing, metal processing industry, chemical industry, commodity inspection and other testing fields.TIME2500 magnetic coating Thickness GaugeThe small size, the probe and the instrument are integrated, especially suitable for engineering field measurement. As an alternative to TT220, the measured values are more accurate, faster and more convenient to operate.

Meets standards

TIME2500 magnetic Thickness Gauge meets the standardGB/T 4956-2003 "Non-magnetic overlay on magnetic substrate -- Thickness measurement of overlay -- Magnetic method."》

Features

1. The magnetic thickness measurement method is adopted, which can non-destructively measure the non-magnetic properties on the magnetic metal matrix (such as steel, iron, alloy and hard magnetic steel, etc.).Thickness of the overlay (e.g. zinc, aluminum, chromium, copper, rubber, paint, etc.)

2.TIME2500 magnetic Thickness GaugeZero and two-point calibration can be performed, and the systematic error of the probe can be corrected using the basic calibration method

3. There are two measurement methods: continuous measurement mode and single measurement mode

4. It has the function of deleting: delete the current value, calibration value, limit value, and all values

5. It has two Operating Modes: direct mode and batch group mode

6. It has the function of backlight display, which is convenient for normal thickness measurement in a dim environment

7. There are five statistics: average, maximum, minimum, number of tests, and standard deviation

8. It has the function of printing, which can print the measured value and statistical value

9. Chinese and English menus, easy to operate

10. It has the function of under-Voltage indication

12. There is a beep prompt during the operation

13.TIME2500 magnetic Thickness GaugeIt has an error prompt function

14. Large capacity storage, can store 500 measured values

15. Manual, automatic shutdown function

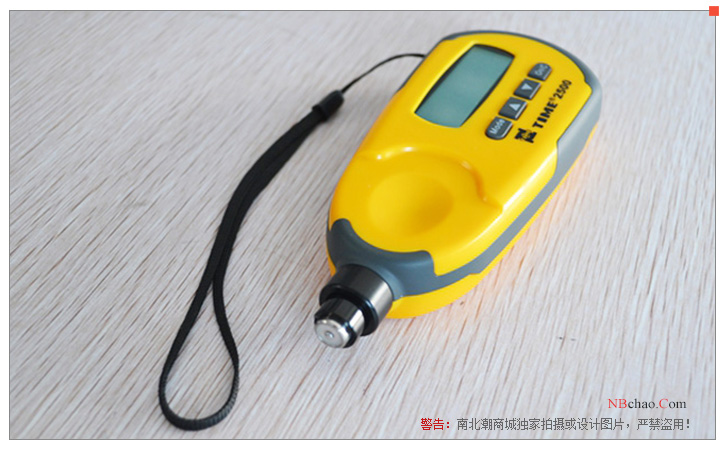

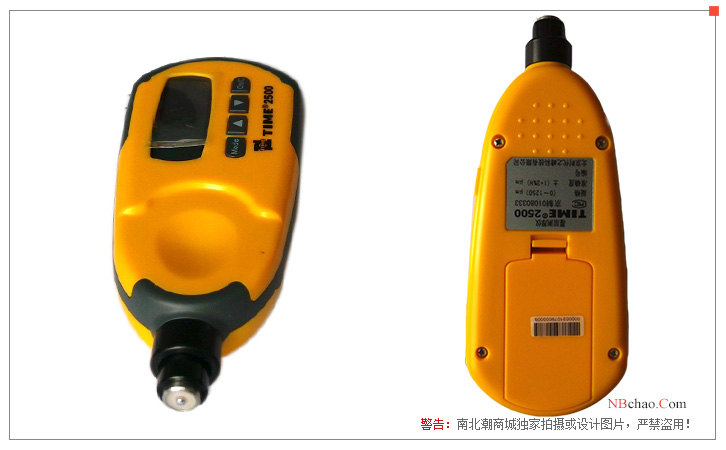

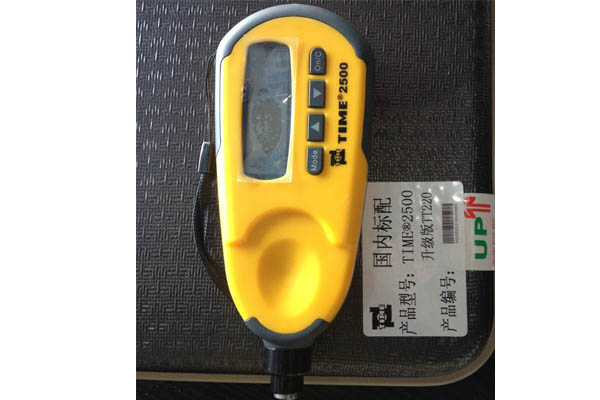

Actual picture of the product

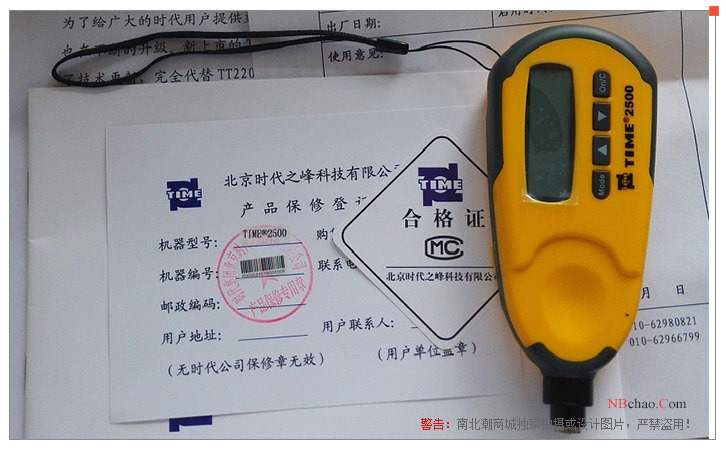

Packing list：host x1, standard substrate x1, standard chip sleeve x1, battery x2, instruction manual x1.

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
