ASR-5600 Alcohol Abrasion Tester

SE
A variety of blessing methods + a variety of abrasion methods, standard rubber jigs, alcohol jigs and pencil jigs, LED counters visually display the number of tests.
Model：
Certificate
Contact
Details SPEC VIDEO CAT OI
Similar products

AISRY ASR-5600 Alcohol abrasion testing machineSPEC

AISRY ASR-5600 Alcohol abrasion testing machineDetails

AISRY ASR-5600 Alcohol abrasion testing machinePacking list

SKU
NB030222
test station
two
test load
50~1000g
test stroke
10~60Mm (manually adjustable)
Test speed
5~ 60 times/min (knob adjustment, LCD display)
Count range
0~99999900 times (can be preset, LCD display)
Load Weight
10, 20, 50, 100, 200, 500g each
Friction medium
Standard multiple pieces of cotton cloth, one eraser, and two Chinese 2B pencils.
Alcohol or Miscellaneous Liquid Friction Metals
two
Rubber Sassafras Eraser
two
Pencil friction tool
two
Machine size
500*450*600mm
Platform size
400 * 180 (mm), can clip 100 * 70 * 25mm * 2 products
Power supply Voltage
AC220V、50HZ
ASR-5600
Alcohol abrasion testing machine
A variety of blessing methods + a variety of abrasion methods, standard rubber jigs, alcohol jigs and pencil jigs, LED counters visually display the number of tests.

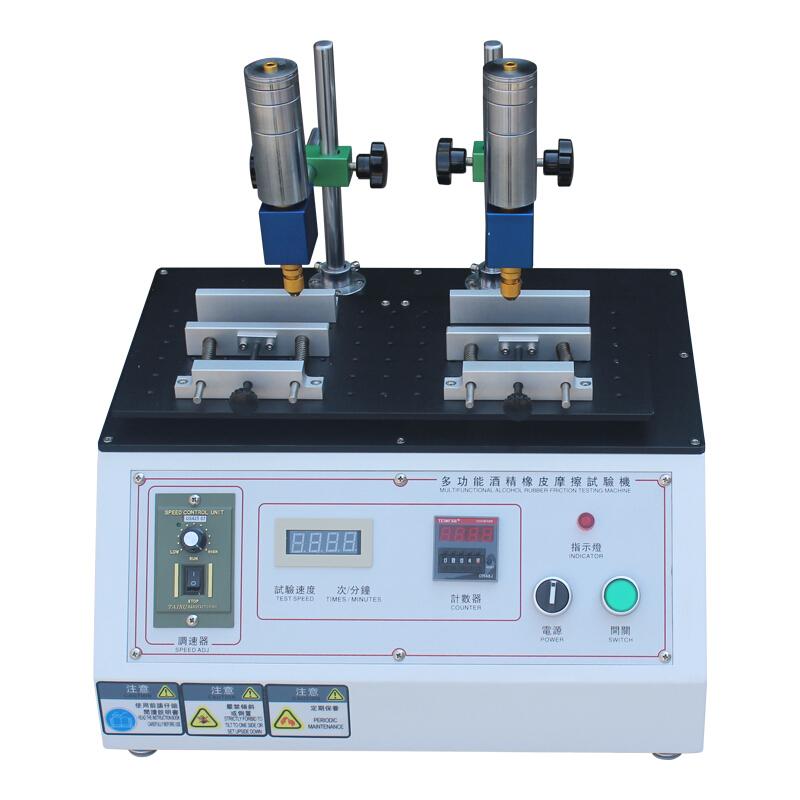

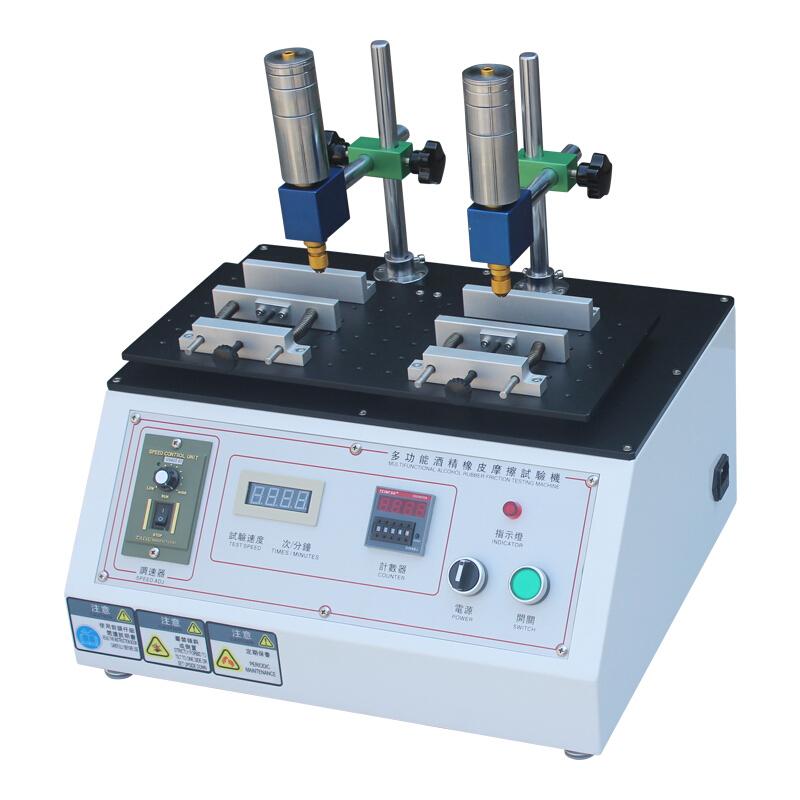

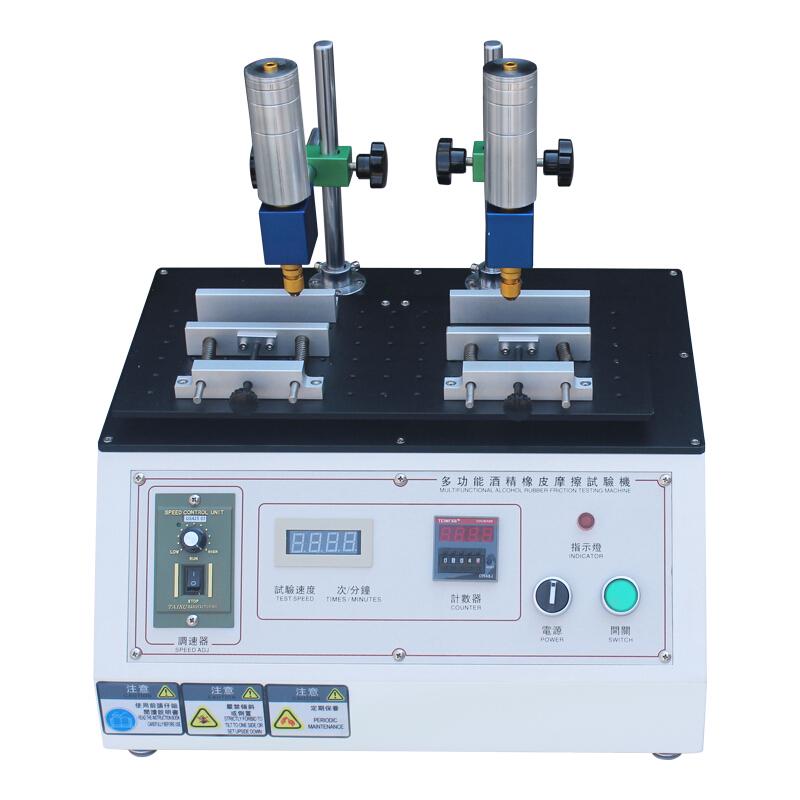

ASR-5600 Alcohol Abrasion Tester Picture

Commonly used in products such as cover glass, films, plastics, auto parts, rubber, leather and textiles, electroplating, freely disassembled components, lacquers, printed patterns, etc. This machine is suitable for wear resistance testing machine of various non-conductive coating layers. It can use eraser or alcohol to wipe the wear resistance testing machine of cloth.

Multifunctional alcohol abrasion test standard ASTM F2496, ISO 1518-1, ISO 1518-2, GME60248, D42 1775, etc.

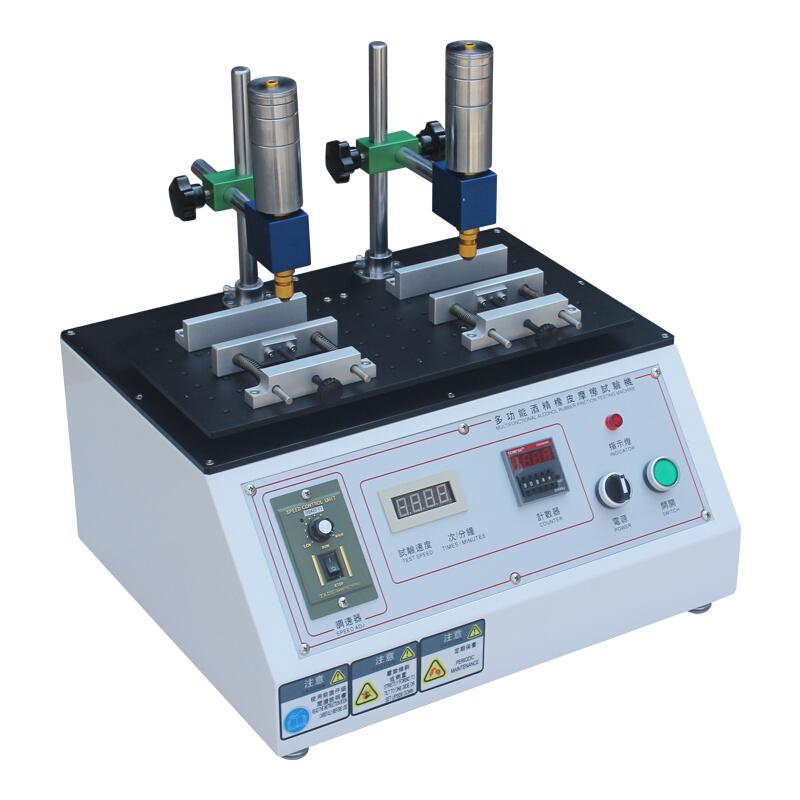

ASR-5600 Alcohol Abrasion Tester Details Figure 1

FAQ
QWhat about the cotton cloth and eraser he wrote on? Can it be replaced with sandpaper?
A With steel wool grinding head covered with sandpaper
QMaximum count Some have to be ground hundreds of thousands of times; The mesh sheath of PA66 or PET will be put on the stainless steel rod and then tested for wear resistance. The normal test of diameter will be within 20mm.
A Recommended ASR-5600 alcohol abrasion test machine, A variety of blessing methods + a variety of abrasion methods, standard rubber fixture, alcohol fixture and pencil fixture, LED counter visual display test times; Test times 999900 max
Q1. Sample station: 2; 2. Test load: 25 g, 50 g, 100 g, 200 g, 500 g; 3. Moving range: 10-100mm intermittent adjustable 4. Speed range: 1~ 120 times/min; 5. Test space: 400mm * 190mm; 6. Device size (L * W * H): 620mm * 400 mm * 325mm; 7. weight: 25kg; 8. One container and one bottle of degreasing solution
A ASR-5600 alcohol wear resistance tester can meet
QCan you test the lens/lens wear resistance test? Test with a pencil
A This one has the test function of pencil wear resistance and can be used.
QCan this machine replace the fixture?
A This instrument can be replaced with other fixtures, but you need to know what sample you are testing before you can replace it according to the situation.
QWear testing machine can use Resin? Polyurethane Resin, 20N force
A Recommend this one, the friction medium can be customized according to the customer's Resin, and the weight can be customized. The motor should be increased and the weight should be done; the weight should be replaced by two 2KG + 500.
QEach station of this double station supports multiple weights
A Each station supports 1.5KG for testing
QExcuse me, is your alcohol friction resistance testing machine in line with the national standard? Is there any description of the relevant national standard?
A Meet standards ASTM F2496, ISO 1518-1, ISO 1518-2, GME60248, D42 1775, etc
QCan the scratch tester test artificial leather?
A OK
QCan this friction testing machine automatically add alcohol?
A No, you need to buy a hanging needle bottle that drips automatically.
