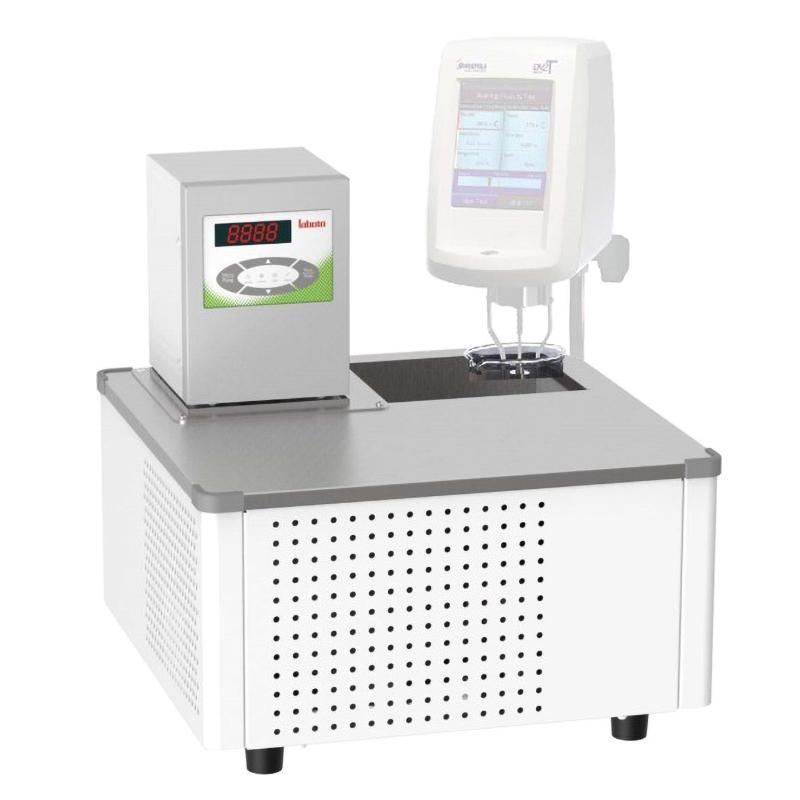

LEPTO CC-1008EW Viscometer Special Thermostatic Circulator -10~100 ℃ Hot and Cold Economical

CC-1008EW

Thermostatic circulator

Temperature range -10~100 ℃, Temperature fluctuation ± 0.05~ 0.1 ℃, temperature resolution 0.1 ℃, temperature transducer Pt100, working tank volume 8L, slot opening size 175 * 145 * 150mm, pump flow 12L/min

product features

1. Compact appearance, small size, very convenient to place on the desktop;

2. With external temperature control and programmable functions, it can realize the automatic heating, constant temperature and cooling test of the sample during the test

3. It can be controlled by 10-segment programs to achieve the requirements of timing constant temperature, heating and cooling;

4. When used together with the viscometer, the operating part of the high-low temperature constant temperature circulator and the viscometer face the operator. The operation and display of the two instruments are very convenient, and the test process and data are clear at a glance;

5. Two kinds of heightening racks are equipped as standard, which are suitable for sample cups of different volumes;

6. Two insulation tubes are equipped as standard, which is convenient for users to carry out the constant temperature viscosity test of the external circulation Water Bath jacket;

7. With heating and cooling functions at the same time, it can easily achieve precise control of any temperature between -10°C and 220°C;

8. The low liquid level buoy provides a low liquid level alarm to prevent dry burning. When the alarm is activated, the light and sound can be reminded at the same time;

9. Maintenance-free pressure/suction pump, with strong pump power, the pump can simultaneously stir the bath liquid in the tank horizontally and vertically, the temperature uniformity in the tank is good, and it can be used for internal circulation and external circulation. When the machine is placed on the ground, the test can also be carried out on the table;

10. Large opening design, the container can be placed directly in the tank for reaction, or the test tube rack can be placed in the tank first, and then multiple test tubes can be placed on the test tube rack for sample constant temperature reaction

11. The pump pressure and flow automatically adapt to the external load, and the international standard M16x1 connecting nut can be configured with different joints to meet the needs of different external circulation pipe diameters;

12. The parts in contact with liquid or steam are made of high-performance stainless steel and high-performance plastic, which are corrosion-resistant and free from scale;

13. Fluorine-free and environmentally friendly refrigerants;

14. A variety of operating modes are optional, and the accidental power failure can be automatically restored;

15. Optional intelligent control function: multiple interfaces (RS485, RS232), realize remote communication, and control the start and stop of equipment;

16. Optional 0-10V or 4-20mA analog signal input, which can be used to control the start and stop of external smart devices;

 Applications

1. Rotary viscometer, rotary viscometer, and cone-plate viscometer test the sample viscosity in the bath.

2. Rotary viscometer, rotary viscometer, and cone-plate viscometer conduct sample viscosity testing in the Water Bath jacket outside the bath.

3. Temperature control of high-low temperature reaction process in the tank.

Quality control such as calibration of temperature sensors etc.

Series selection

Packing list：L Constant temperature circulating water bath x1, beaker bracket one x1, beaker bracket two x1, thermal insulation pipe 1.8 meters x2, operation manual x1, certificate x1, warranty card x1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
