TIME2501 eddy current Coating Thickness Gauge for nonconductive coatings on nonmagnetic metal substrates

TIME2501

Thickness Gauge

Introduction

Beijing Times TIME2501 eddy current coating Thickness Gauge is a small volume of integrated coating Thickness Gauge.It is especially suitable for engineering site measurements.In appearance, the shell of this eddy current coating Thickness Gauge is yellow, the shape and structure are simple, the small LCD screen, and the holding part is dented to prevent the measurement process from being unable to hold the Thickness Gauge, which is ergonomic. TIME2501Eddy current coating Thickness Gauges are available in both continuous and single measurement methods, and are capable of storing up to 500 measured values for easy management.

Beijing Times TIME2501 eddy current coating Thickness Gauge adopts the principle of eddy current thickness measurement, which can quickly, damagelessly and accurately measure the thickness of non-conductive covering layer on non-magnetic metal substrates. Eddy current Thickness Gauge can be widely used in manufacturing, metal processing industry, chemical industry, commodity inspection and other testing fields.

Features & Benefits:

(1) The eddy current thickness measurement method is adopted, which can measure the thickness of the non-conductive covering layer on the non-magnetic metal substrate (such as the enamel, rubber, paint coating on copper, aluminum, zinc, tin and other substrates) without damage, and can be calibrated at zero point and two points, and the systematic error of the probe can be corrected by the basic calibration method;

(2) There are two measurement methods: continuous measurement mode and single measurement mode;

(3) It has two Operating Modes: direct mode and group mode;

(4) It has the function of deleting: deleting a single suspicious data in the measurement, deleting the current value, calibration value, limit value and all values;

(5) There are five statistics: average, maximum, minimum, number of tests, standard deviation;

(6) It has the function of printing, which can print measured values and statistical values;

(7) It has the function of under-Voltage indication;

(8) There is a buzzer prompt during the operation;

(9) It has the function of error prompting;

(10) Chinese and English menus;

(11) Store 500 measured values;

(12) Backlit display;

(13) It has automatic and manual shutdown functions

Meets standards

GB/T 4957 Thickness measurement of overlay -- Eddy current method

JB/T 8393 Magnetic and eddy current cladding Thickness Gauge

JJG 818 Magnetic, eddy current cladding Thickness Gauge

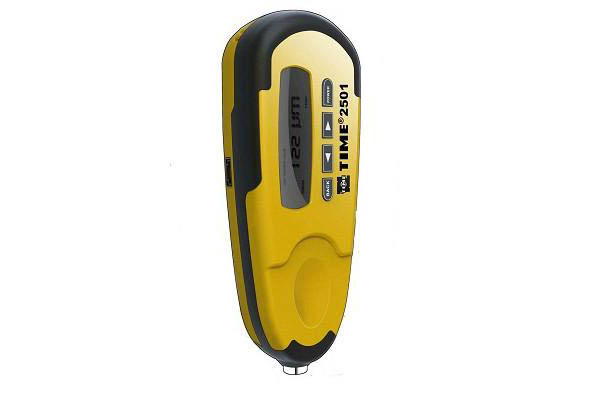

Actual picture of the product

Packing list：Host x1, standard substrate x1, standard chip sleeve x1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
