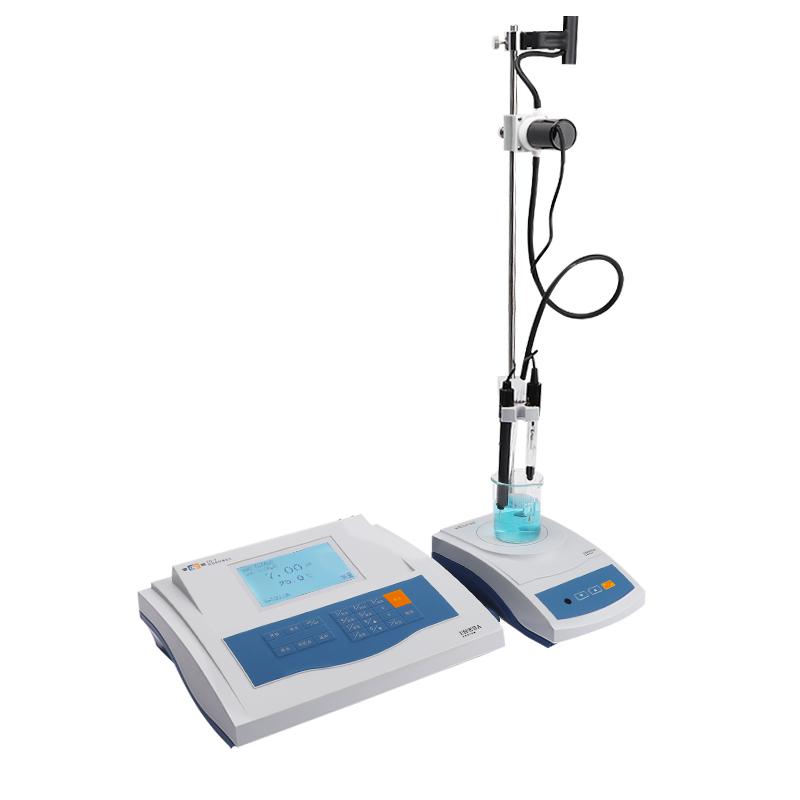

LEICI ZD-2 Potentiometric titrator

Suitable for a variety of Potentiometric titration, poten-tiometry, pre-control potential (pH) adjustment, ZD-2 Potentiometric titrator can simultaneously measure mV (ORP), ph value. Used in scientific research, teaching, chemical industry, environmental protection and many other fields.
Model：
Contact
Details SPEC

LeiCi ZD-2 Potentiometric titratorSPEC

LeiCi ZD-2 Potentiometric titratorDetails

LeiCi ZD-2 Potentiometric titratorPacking list

SKU
NB030312
Instrument level
Level 0.5
Measurement parameters
mV（ORP）、pH
Measurement range
（0~±1400）mV，（0~14.00）pH
Resolution
1mV，0.01pH
Intrinsic error
pH：±0.03pH；mV：±5mV
Stability
(+/- 0.3mV +/- 1 word)/3h
Power supply Voltage
AC 220±22V 50±1Hz
Dimensions
300×235×100mm
Weight
3kg
ZD-2
Potentiometric titrator
Suitable for a variety of Potentiometric titration, poten-tiometry, pre-control potential (pH) adjustment, ZD-2 Potentiometric titrator can simultaneously measure mV (ORP), ph value. Used in scientific research, teaching, chemical industry, environmental protection and many other fields.

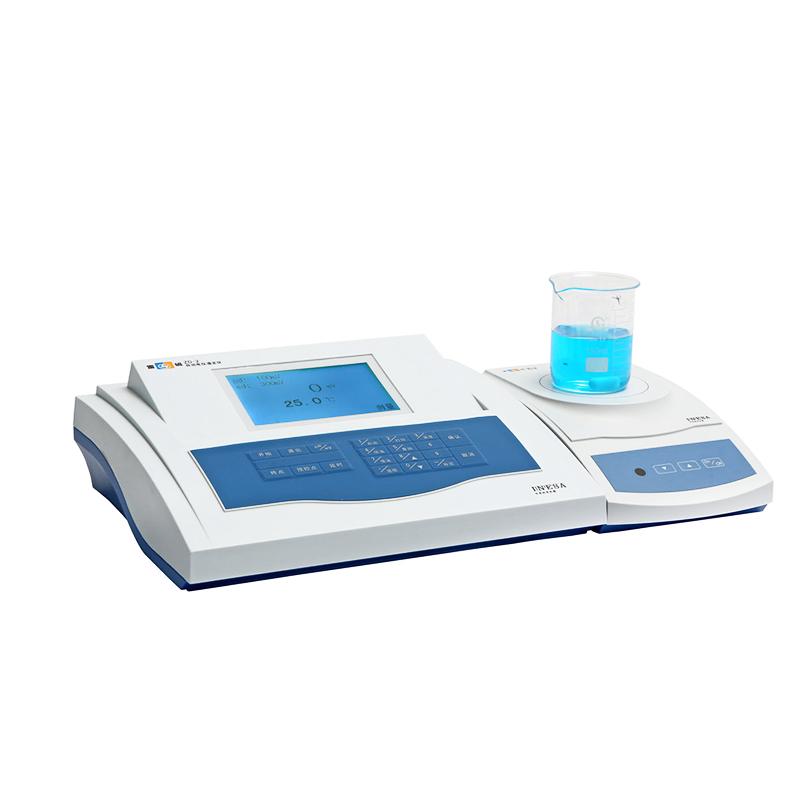

LEICI ZD-2 Potentiometric titrator Picture

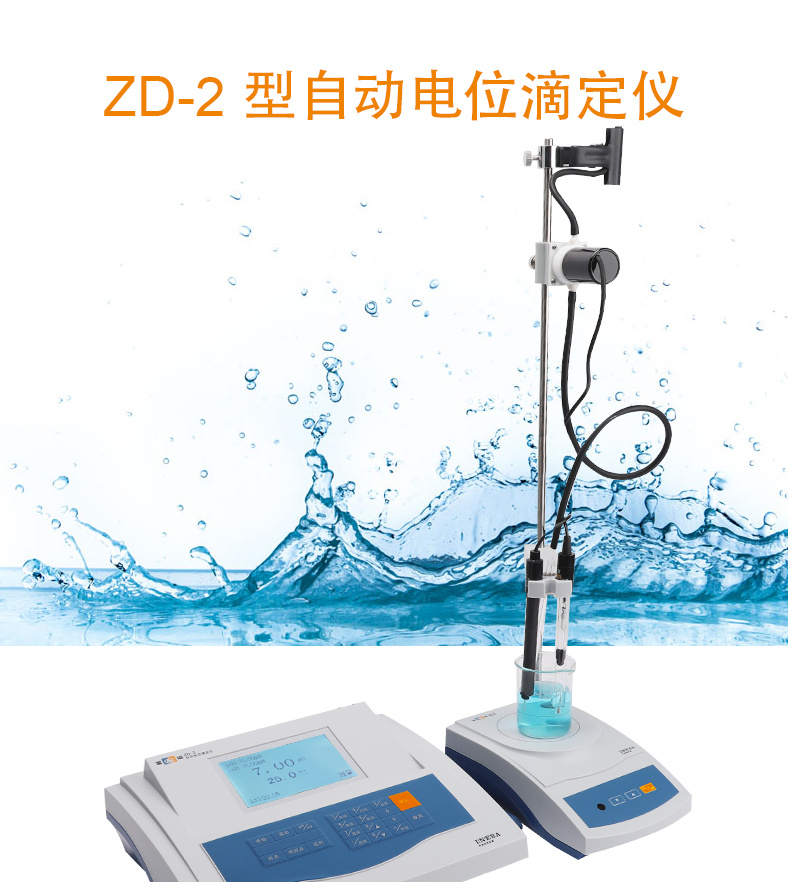

Detail Figure 1 of the Thunder Magnetic ZD-2 Titrator

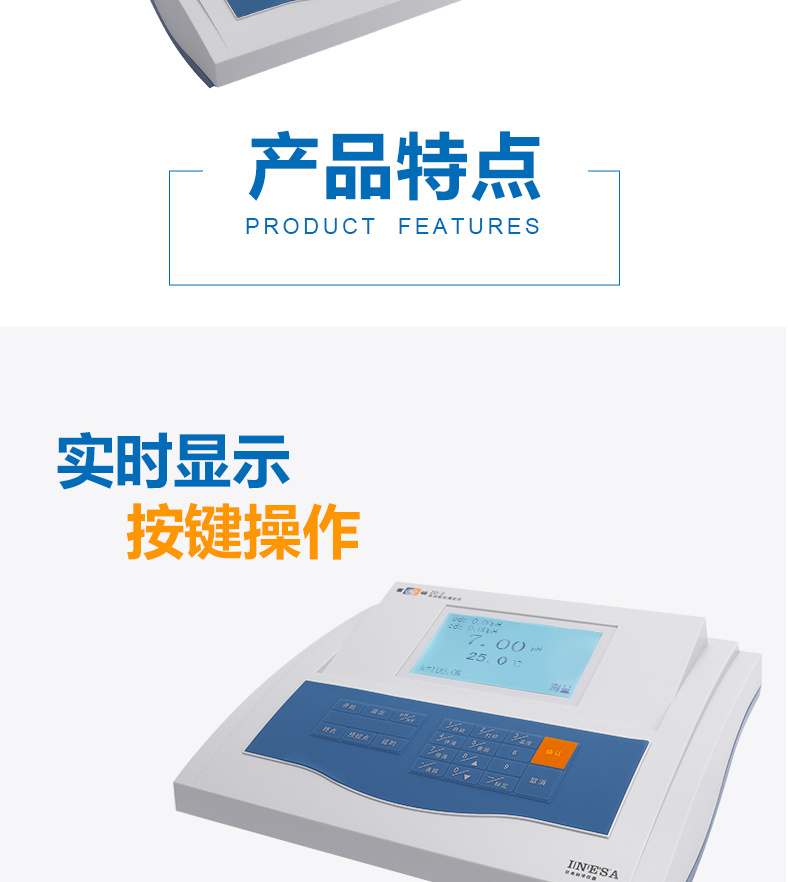

Ray Magnetic ZD-2 Titrator Details Figure 2

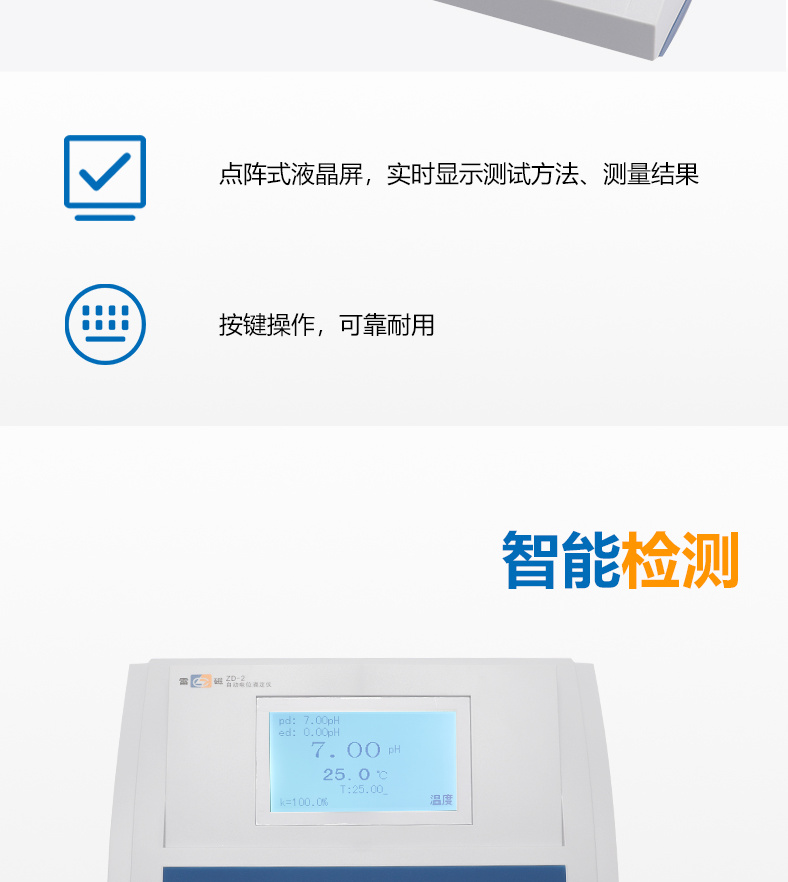

Detail Figure 3 of the Thunder Magnetic ZD-2 Titrator

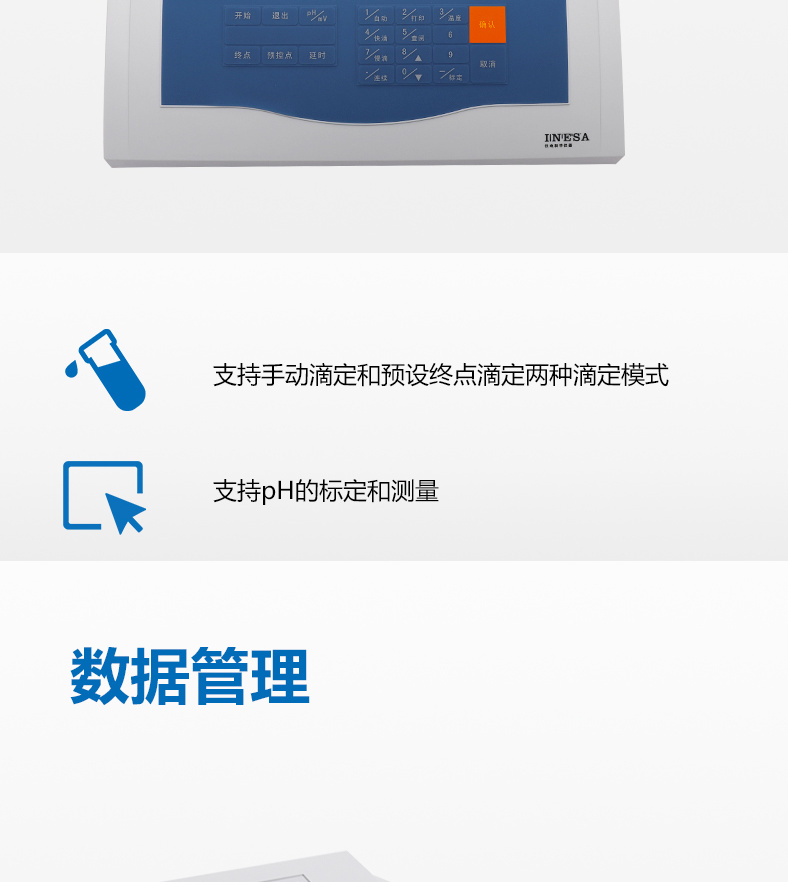

Detail Figure 4 of the Thunder Magnet ZD-2 Titrator

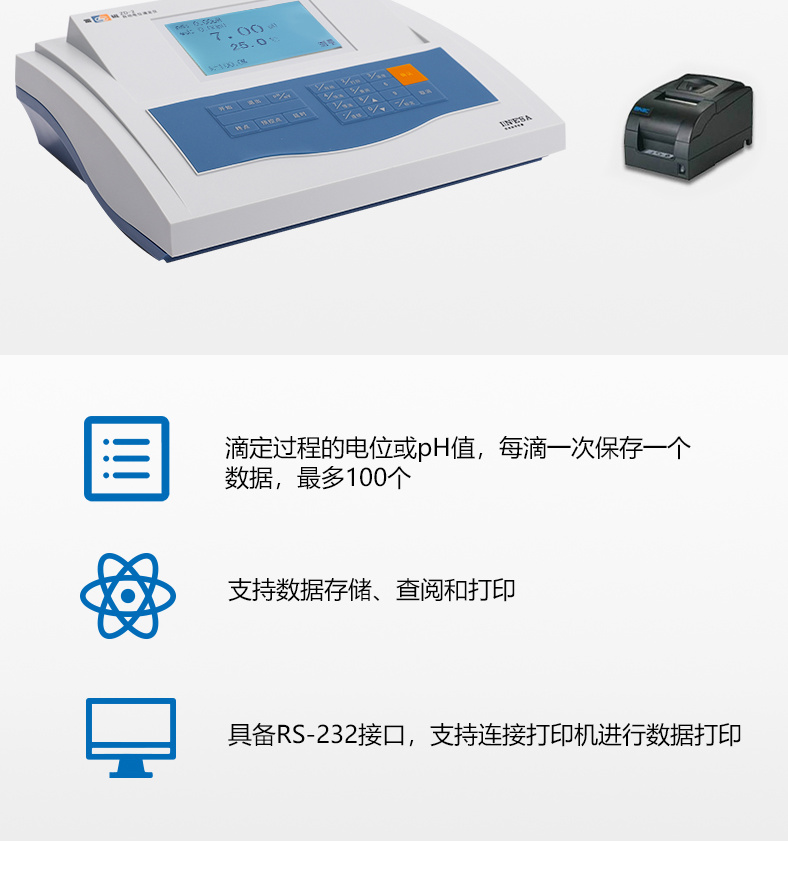

Ray Magnetic ZD-2 Titrator Details Figure 5

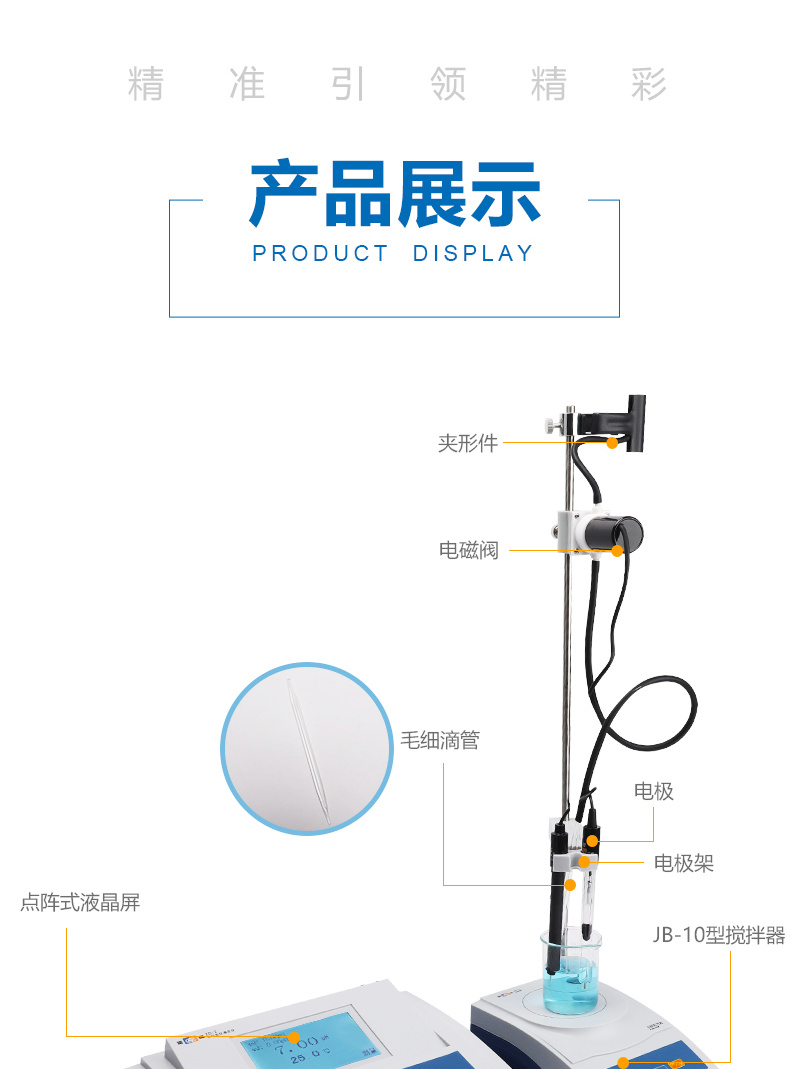

Ray Magnetic ZD-2 Titrator Details Figure 6

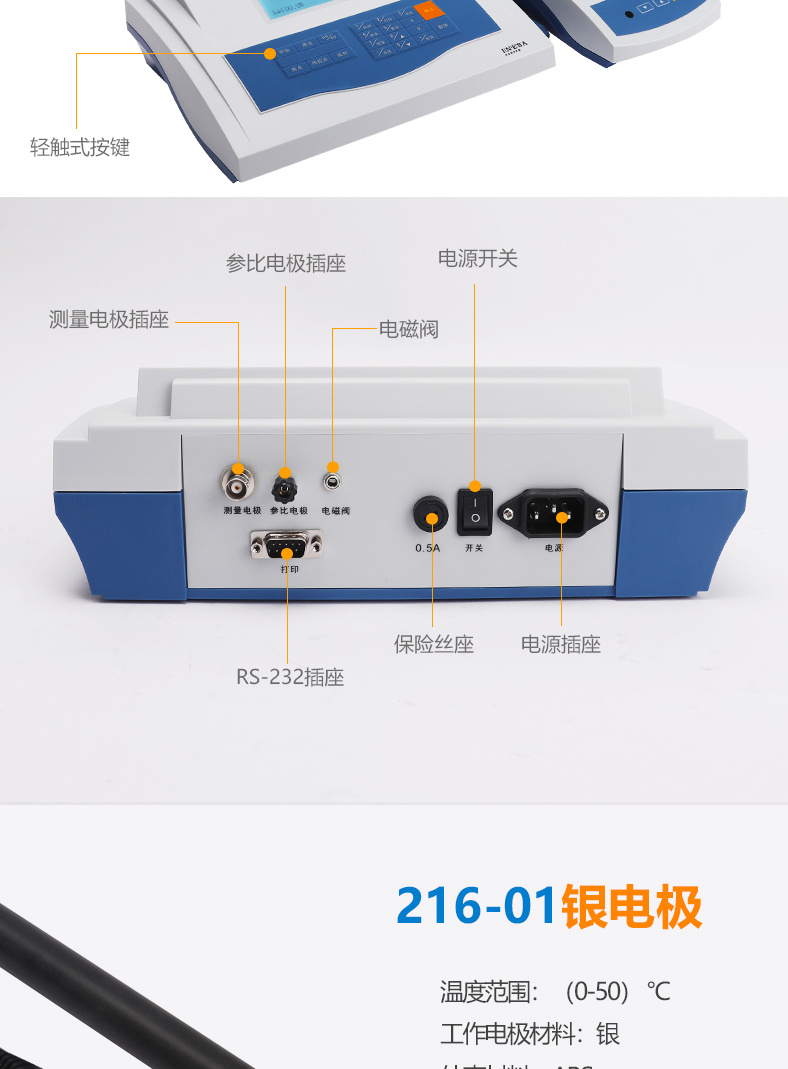

Detail of the Thunder Magnetic ZD-2 Titrator Figure 7

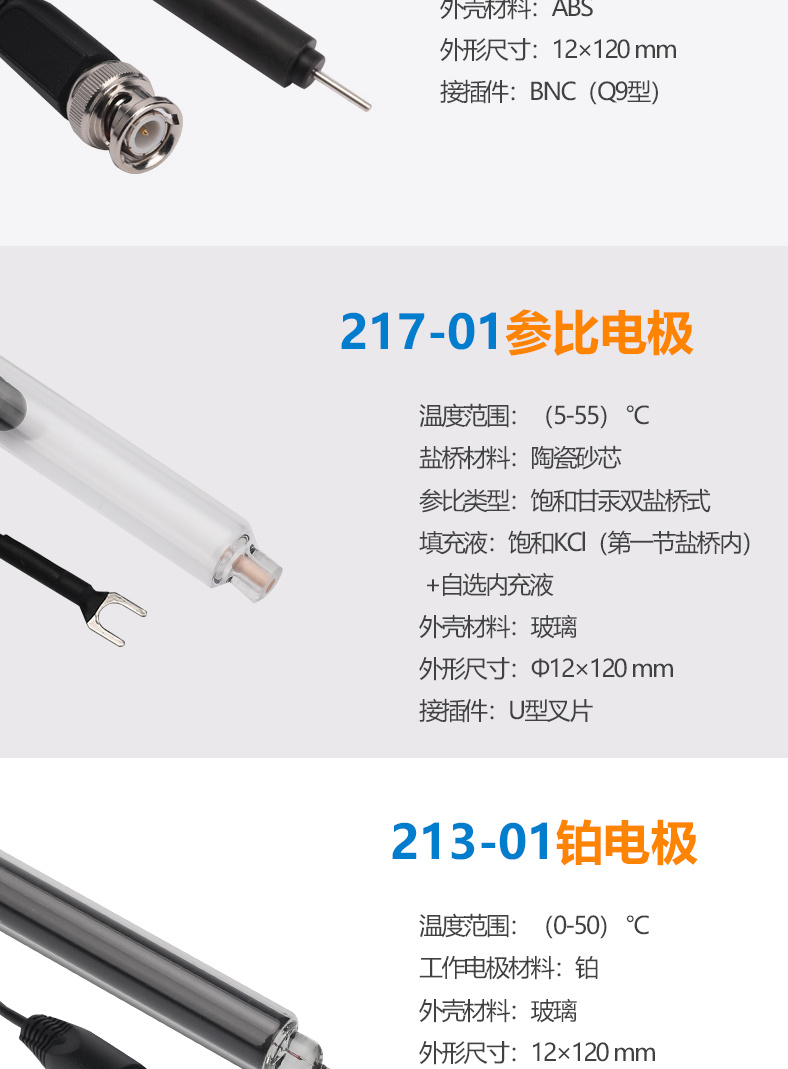

Detail Figure 8 of the Thunder Magnet ZD-2 Titrator

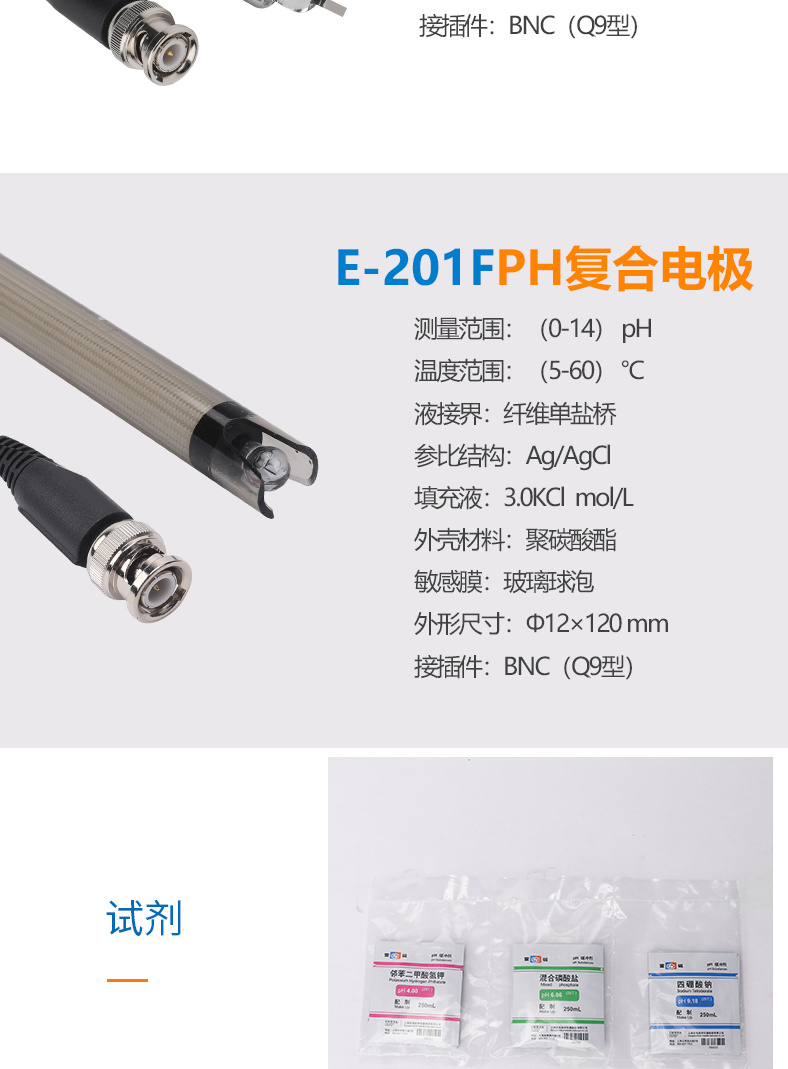

Ray Magnetic ZD-2 Titrator Details Figure 9

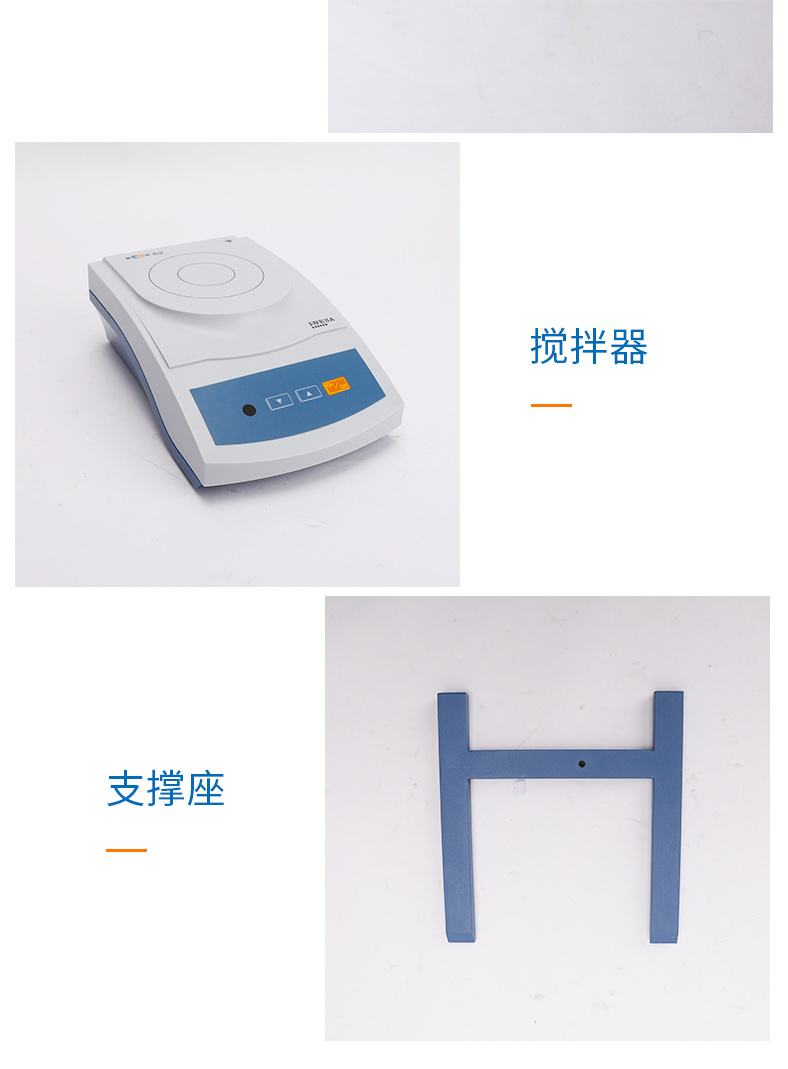

Ray Magnetic ZD-2 Titrator Detail Figure 10

Features

  • The titration endpoint is controlled according to the set potential;

  • Pre-controlled potential (pH) adjustment is possible;

  • The solenoid valve is used to control the dripping liquid;

  • Manual, automatic, constant pH (potential) titration mode;

  • Delay circuitry with titration endpoints;

  • It is suitable for volumetric titration in laboratory applications;

  • Equipped with JB-10 agitator produced by our factory.


FAQ
QDo you have the automatic Potentiometric titrator required by the GB/T9725 standard?
A This ZD-2 automatic Potentiometric titrator will do.
