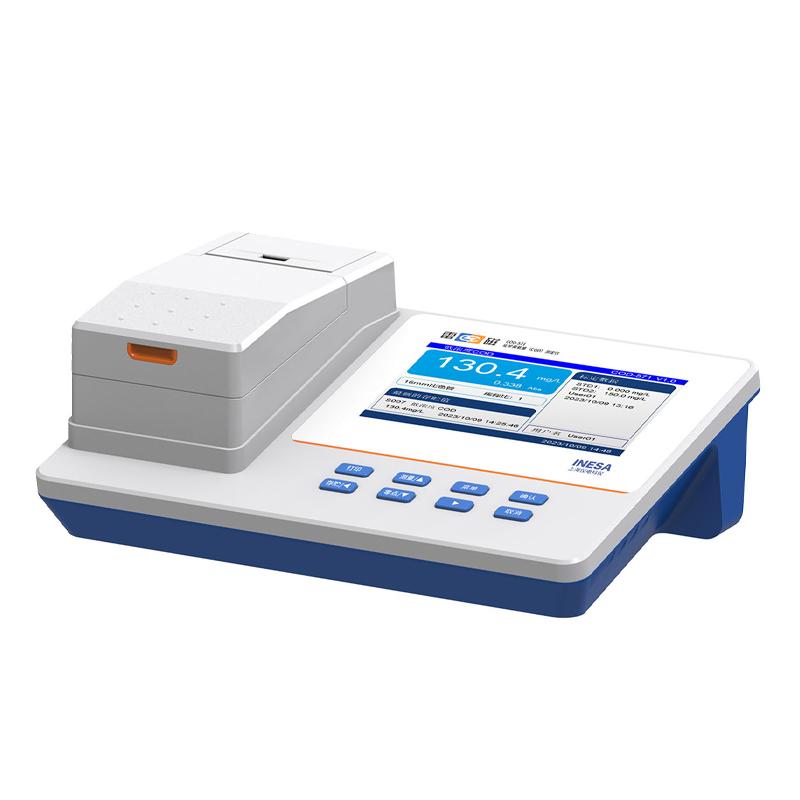

LEICI CO-571 Chemical Oxygen Demand Tester
SE
COD-571
LeiCi COD-571 Chemical oxygen demand meterSPEC
LeiCi COD-571 Chemical oxygen demand meterDetails
LeiCi COD-571 Chemical oxygen demand meterPacking list
- SKU
- NB030363
- Test item
- Low concentration COD, high concentration COD
- Measuring method of low concentration COD
- Potassium dichromate method
- Low concentration COD Measurement range
- (0.000-150.0)mg/L
- Low concentration COD error
- ±8％
- Repeatability of low concentration COD
- ≤3%
- Low concentration COD Stability
- <6mg/L(20min)
- Low concentration COD wavelength
- 470nm
- Low concentration COD digestion
- Need to be digested
- Measuring method of high concentration COD
- Potassium dichromate method
- Measurement range of high concentration COD
- (150.0-1500) mg/L, can be expanded to 15000mg/L
- High concentration COD error
- ±8％
- High concentration COD Repeatability
- ≤3%
- High concentration COD Stability
- <6mg/L(20min)
- High concentration COD wavelength
- 620nm
- High concentration COD needs to be digested
- Need to be digested
- Absorption Measurement range
- （0.000～2.000）Abs
- Absorption error of indication
- +/- 0.01 or +/- 5%
- Absorption Repeatability
- ≤ 0.005 or 2%
- Absorption Measurement range
- （0.000～2.000）Abs
- Wavelength measurement wavelength
- 420nm、620nm
- Wavelength Precision
- ±4nm
- Transmittance error of indication
- ±2%
- Transmittance Repeatability
- ≤ 0.5％
- data storage
- A total of 2000 test results
- Measurement cell
- 10Mm Colorimetric dish, 16mm Colorimetric tube
- Power Supply
- Power adapter, input AC: (100~240) V, output DC24V
- Dimensions (mm); Weight (kg)
- 302×205×122，1.33
Introduction
COD-571 Chemical Oxygen Demand Meter abandons the traditional complex and cumbersome optical splitting system and uses a new LED as the light source, which greatly reduces the size and weight of the measurement equipment. Equipped with a special digestion device, the sealed reflux digestion method can be used to heat and reflux 21 samples at the same time, which is convenient to operate, fast digestion speed, can save a lot of water, electricity and reagents, and reduce secondary pollution. COD-571 is suitable for environmental protection industry and is convenient for the determination of COD in large quantities of samples.
Features
LCD liquid crystal display, Chinese menu, simple operation;
Potassium dichromate colorimetric method, LED light source, long service life;
Fulfillment of two-point calibration (zero and full calibration);
The COD measurement value can be displayed directly, without the need for user calculations;
In line with GLP specifications, it supports data review, deletion and printing, with a maximum storage capacity of 200 sets;
It has a standard USB communication interface, which can be connected with a PC;
It has the function of power-off protection.
- 1JJF 1565-2016《Calibration Specification for Water Quality On-line Analyzers of Heavy Metals》
- 2JJF 1012-2019《On-line Automatic Determinators of Chemical Oxygen Demand (COD)》
- 3HJ 377-2019《Technical specifications and test procedures for water quality on-line automatic monitoring equipment of chemical oxygen demand (COD<下标Cr>)》
- 4GB/T 29599-2013《Textile dyeing and finishing auxiliaries - Determination of chemical oxygen demand(COD)》
- 5HJ 2515-2012《Technical requirement for environmental labeling products.Ship anti-fouling paints》
