LEICI 962242 Planar pH composite electrode for surfaces or droplet samples

SE
LEICI 962242 Plane pH composite electrode Measurement range (1-12) pH, Temperature range (0-60) ℃, Zero Potential 7 +/- 0.5pH, Material Glass, Liquid Boundary Glass Grinding, Reference Structure Silver Ion Capture Hydrazine + Long Life Structure, Reference Solution Liquid Additive, Dimensions of φ 12 × 120mm, Connector S7.
$242.00/piece
PromotionLoading...
Coupon
Model：
Contact
Details SPEC Con

LeiCi 962242 Planar pH composite electrodeSPEC

LeiCi 962242 Planar pH composite electrodeDetails

LeiCi 962242 Planar pH composite electrodePacking list

SKU
NB030498
Temperature range
（0-60）℃
Zero potential
7±0.5pH
material
Glasses
hydraulic junction
Glass grinding
reference structure
Silver ion traps hydrazine + long-lived structure
reference solution
Additive liquid
size
Φ12×120mm
Connector
S7 to BNC (Q9 type)
962242
Planar pH composite electrode

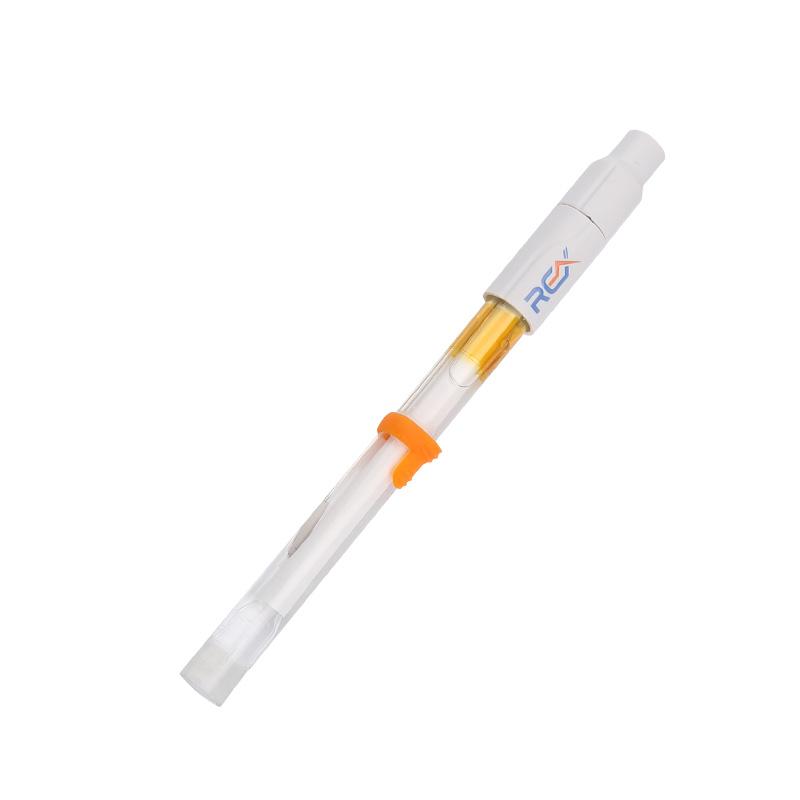

LEICI 962242 Planar pH composite electrode for surfaces or droplet samples Picture

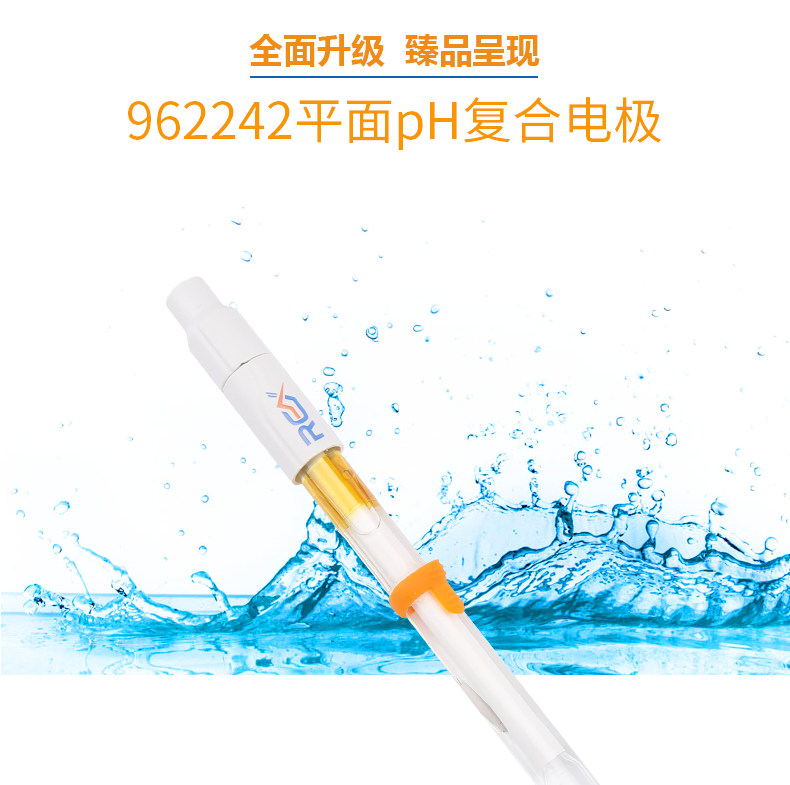

Detail of the Thunder Magnet 962242 Planar pH Composite Electrode Figure 1

Detail of the Thunder 962242 Planar pH Composite Electrode Figure 2

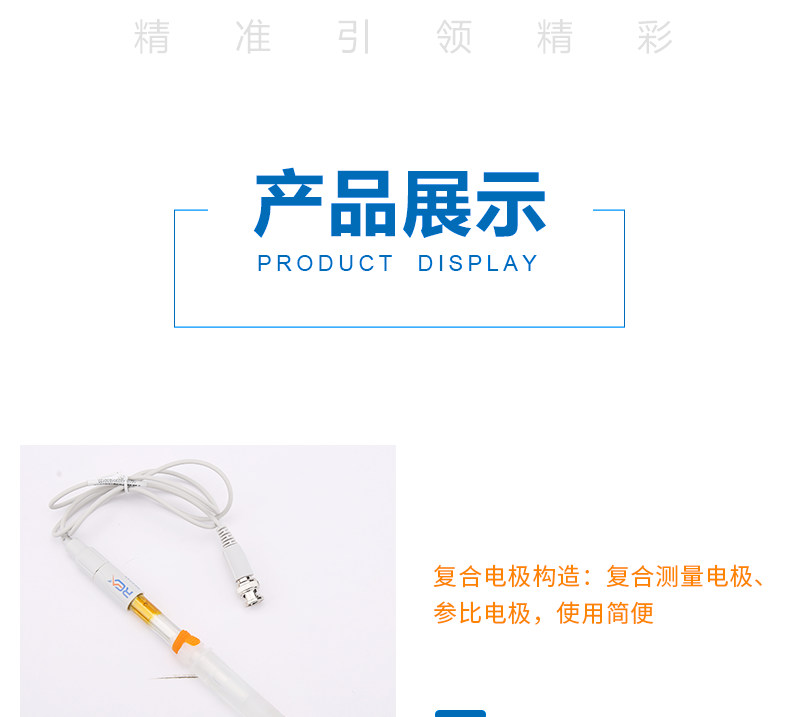

Detail of the Thunder Magnet 962242 Planar pH Composite Electrode Figure 3

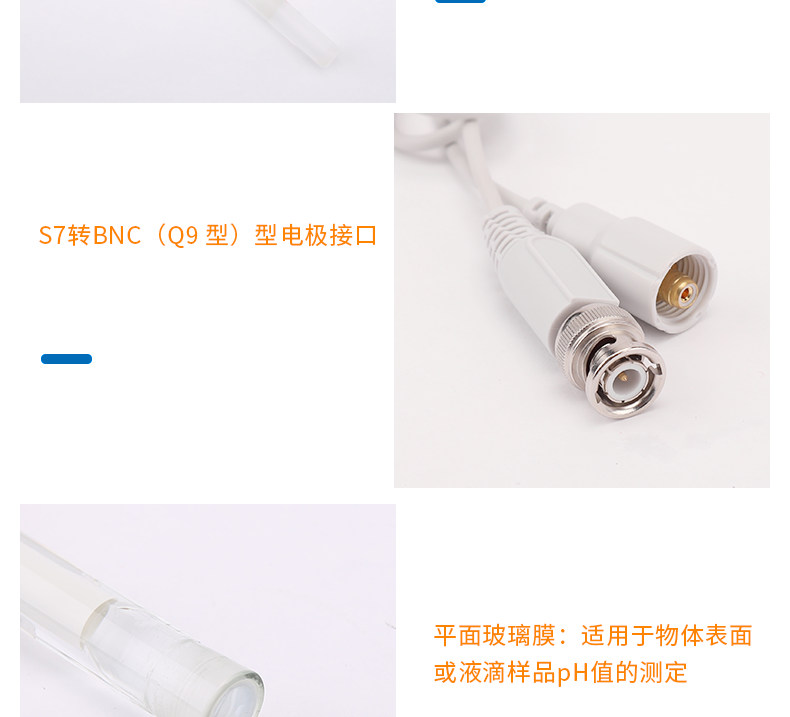

Detail of the Thunder Magnet 962242 Planar pH Composite Electrode Figure 4

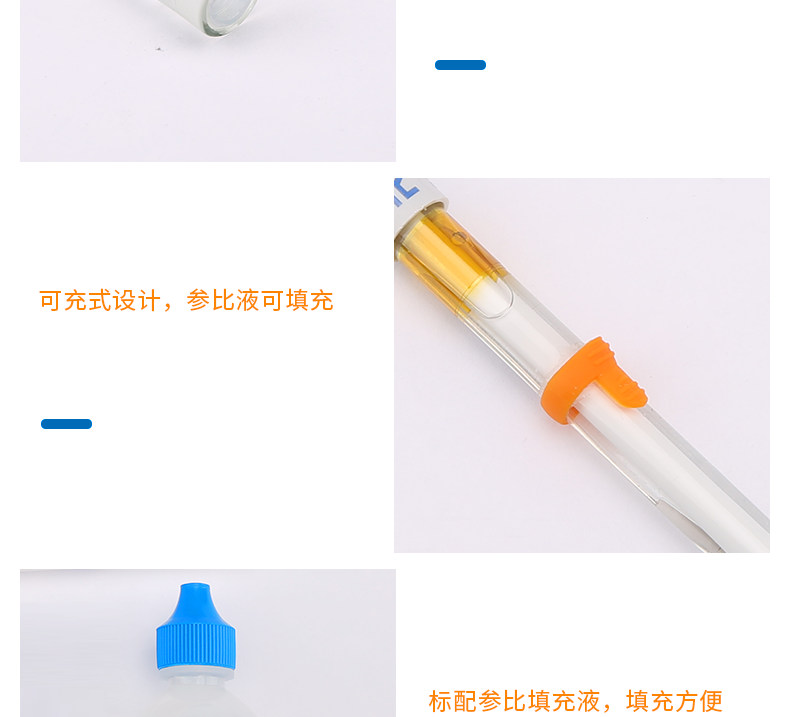

Detail of the Thunder 962242 Planar pH Composite Electrode Figure 5

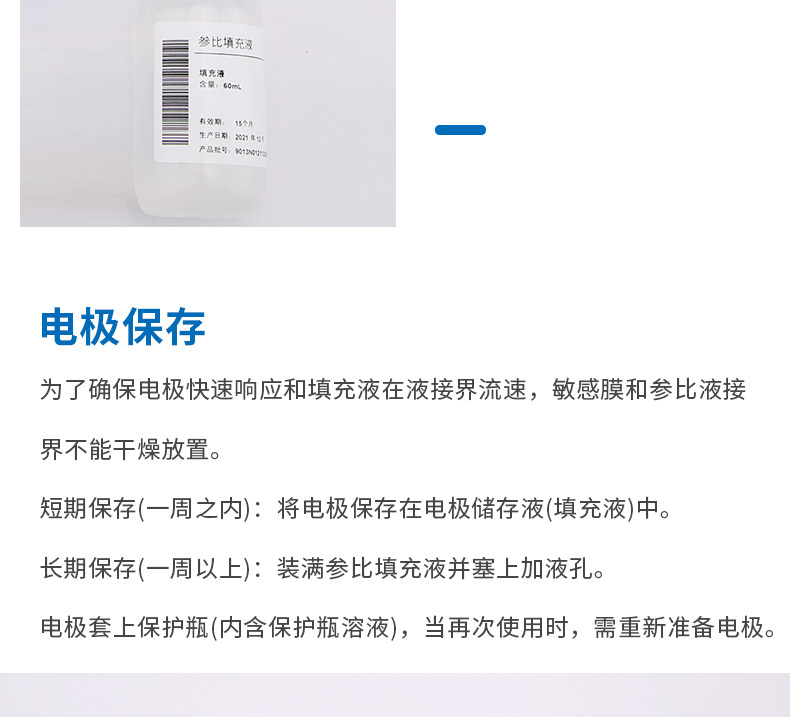

Detail of the Thunder Magnet 962242 Planar pH Composite ElectrodeFigure 6

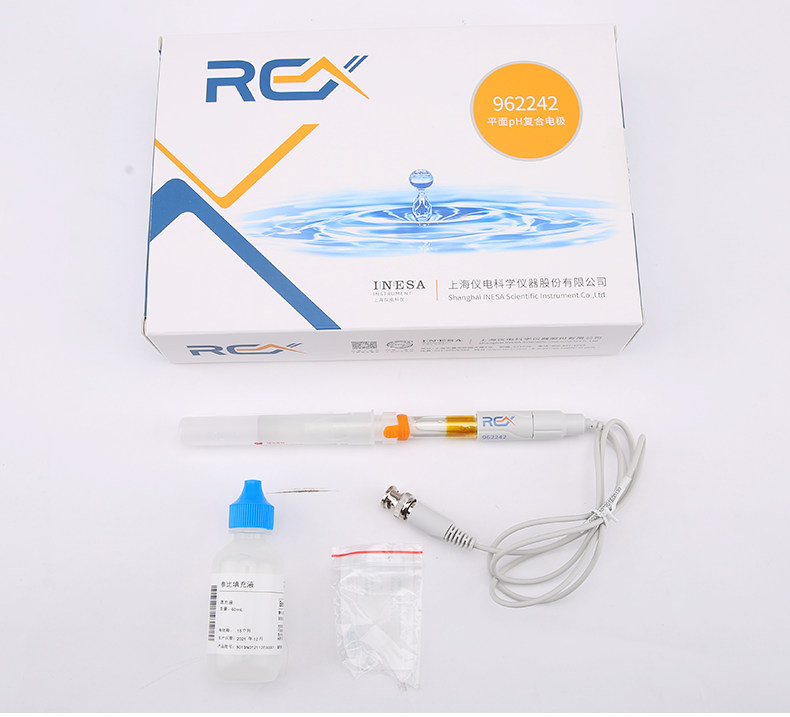

Detail of the Thunder Magnet 962242 Planar pH Composite Electrode Figure 7


Electrode model nameDescription and product configurationConnector
962201 high-precision pH composite electrodeFilling solution (60mL, 614001), suitable for common water samples, accuracy 0.01pH;S7
Recommended accessories: cables, filler fluids, stirring guards
Optional : calibration solution, protective cover, dosing stopper, protective bottle
962103 open pH multi-electrodeIt is suitable for common water samples and general contaminated samplesS7
Recommended accessory: Cable
Optional : calibration fluid, protective bottle
962221 ultrapure water pH composite electrodeFilling solution (60mL, 614001), suitable for ultra-low conductivity water samples such as pure water and deionized waterS7
Recommended accessories: cables, filler fluids, stirring guards
Optional : calibration solution, protective cover, long protective bottle
962121 low-conductance pH composite electrodeFilling solution (60mL, 614001), suitable for low conductivity water samples with conductivity of more than 100μS/cmS7
Recommended accessory: Cable
Optional : calibration fluid, protective bottle
962241 conical pH composite electrodeFilling solution (60mL, 614001) for solid semi-solid penetration measurementBNC
Recommended accessory: Filler liquid
Optional : calibration fluid, dosing plug, stainless steel shroud
962242 planar pH composite electrodeFilling solution (60mL, 614001) for surface or droplet samplesS7
Suggested accessories: cables, filler fluids
Optional : calibration solution, dosing stopper, protective bottle
962244 slender pH combination electrodeFilling solution (60mL, 614001), suitable for micro samples above 0.2mL, or fine-bore containersS7
Suggested accessories: cables, filler fluids
Optional : calibration solution, dosing stopper, protective bottle
962243 extra-long pH combination electrodeFilling solution (60mL, 614001) for general measurement, large volume container samplesS7
Recommended accessories: cables, filler fluids, stirring guards
Optional : calibration solution, protective cover, dosing stopper, protective bottle
962102 washable pH combination electrodeFilling solution (60mL, 614001) suitable for highly polluting samples such as emulsion, suspension, viscosity, etcBNC
Suggested accessories: connecting wire, stirring guard
Optional : calibration solution, protective cover, dosing stopper, protective bottle
962223 RoHS pH Composite ElectrodeFilling solution (60mL, 614001), suitable for RoHS complianceS7
Recommended accessories: connecting wire, stirring guard, filler liquid
Optional : calibration solution, protective cover, dosing stopper, protective bottle
962224 High temperature resistant pH composite electrodeFilling solution (60mL, 614001), suitable for 0-100°C high temperature samplesS7
Recommended accessories: cables, filler fluids, stirring guards
Optional : calibration solution, protective cover, dosing stopper, protective bottle
FAQ
QI want to do a test on the GB/T7790 standard, is this planar pH composite electrode okay?
A Sure
