LEICI 231-01 pH Glass electrode

SE
LEICI 231-01 type pH Glass electrode technical parameters 0-14pH, 5-60 ℃, product description indicator electrode, with 232-01 type reference electrode, suitable for measurement of low Conductivity Detector samples under closed static conditions, electrode plug BNC (Q9 type, φ 12 × 120).
$86.00/piece
PromotionLoading...
Coupon
Model：
Contact
Details SPEC Con

LeiCi 231-01 pH Glass electrodeSPEC

LeiCi 231-01 pH Glass electrodeDetails

LeiCi 231-01 pH Glass electrodePacking list

SKU
NB030603
pH Measurement Range
0~14pH
Temperature Measurement Range
5-60℃
Shell material
Glasses
sensitive film
Glass bulbs
Dimensions
Φ12×120 mm
Connector
BNC(Q9 sentire)
231-01
pH Glass electrode

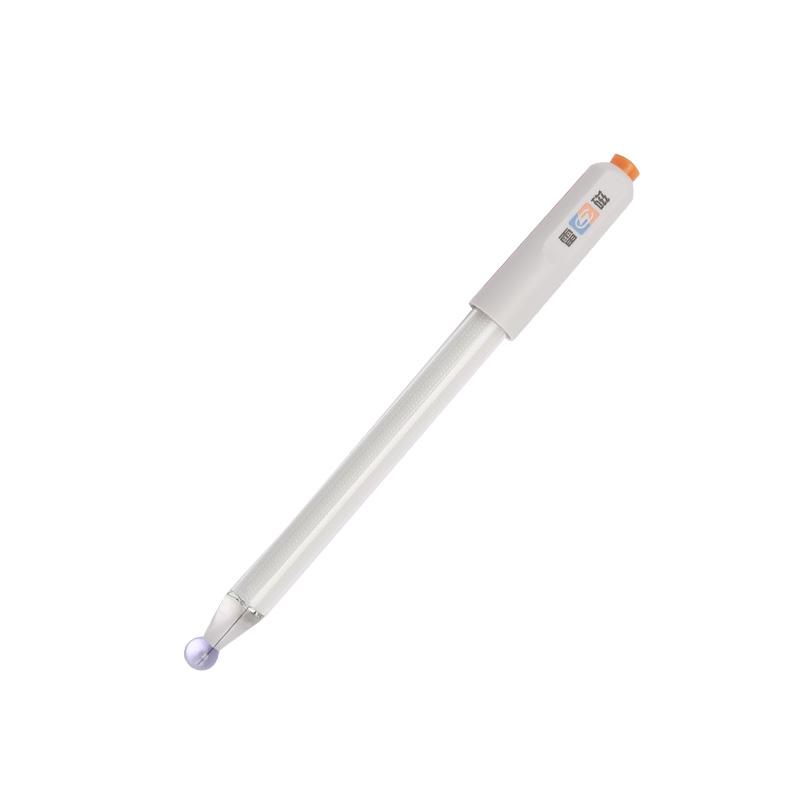

LEICI 231-01 pH Glass electrode Picture

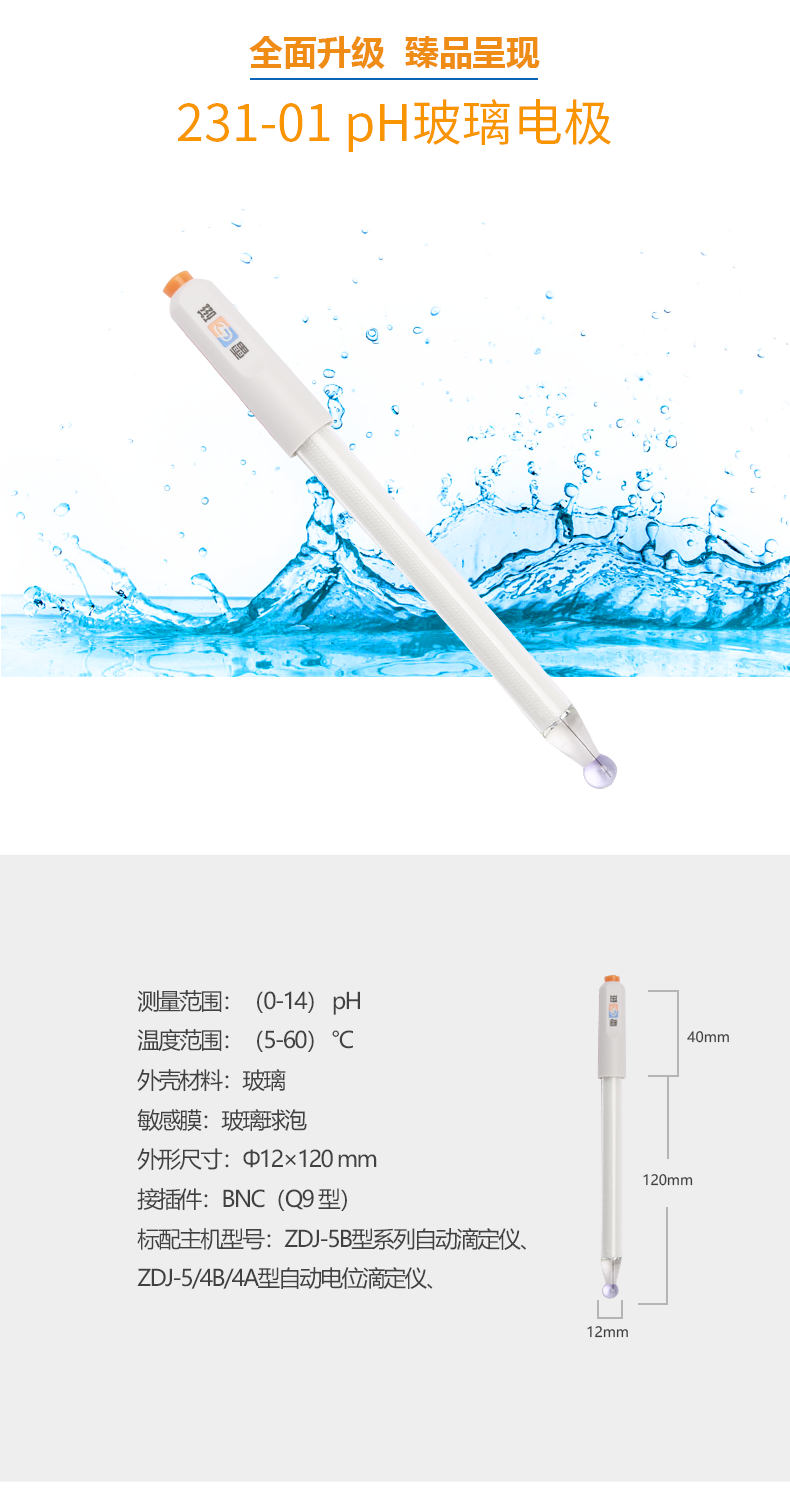

Thunder 231-01 pH glass electrode details Figure 1

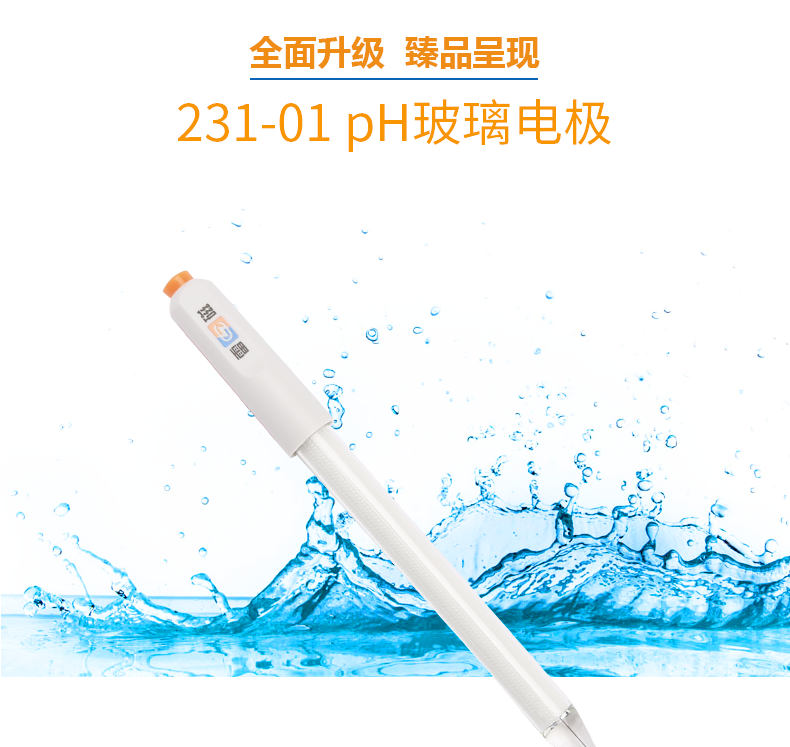

Thunder 231-01 pH glass electrode details Figure 2

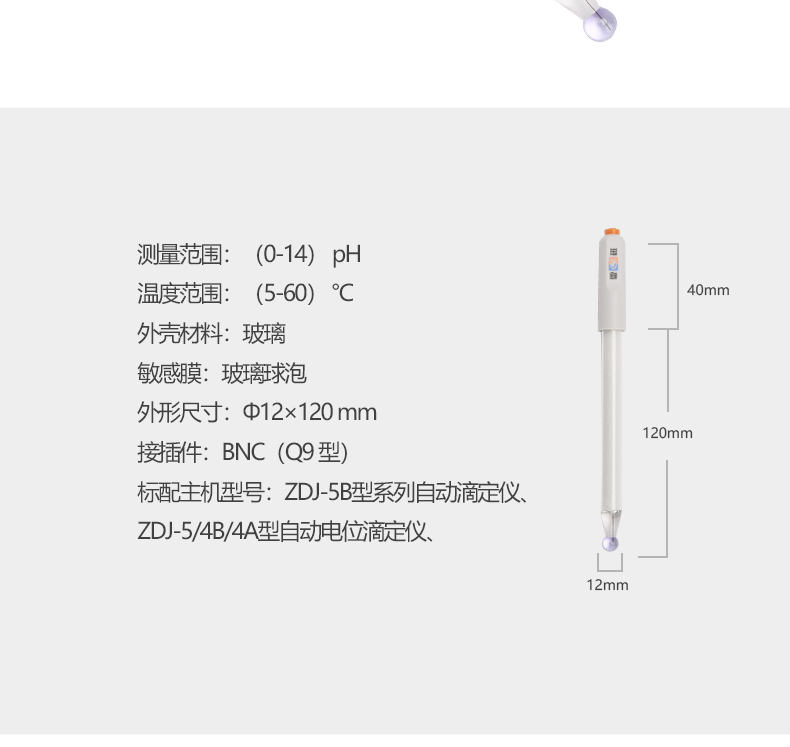

Thunder 231-01 pH glass electrode details Figure 3

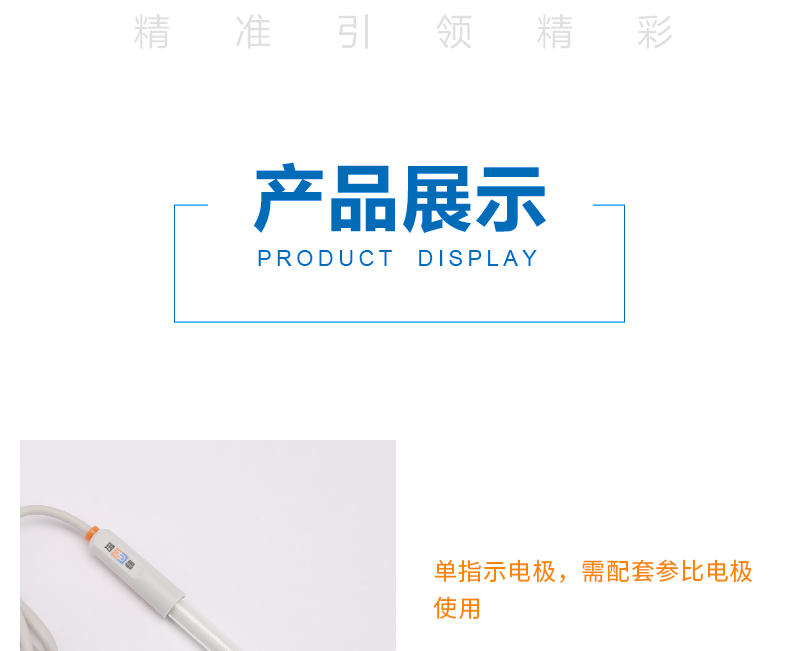

Thunder 231-01 pH glass electrode details Figure 4

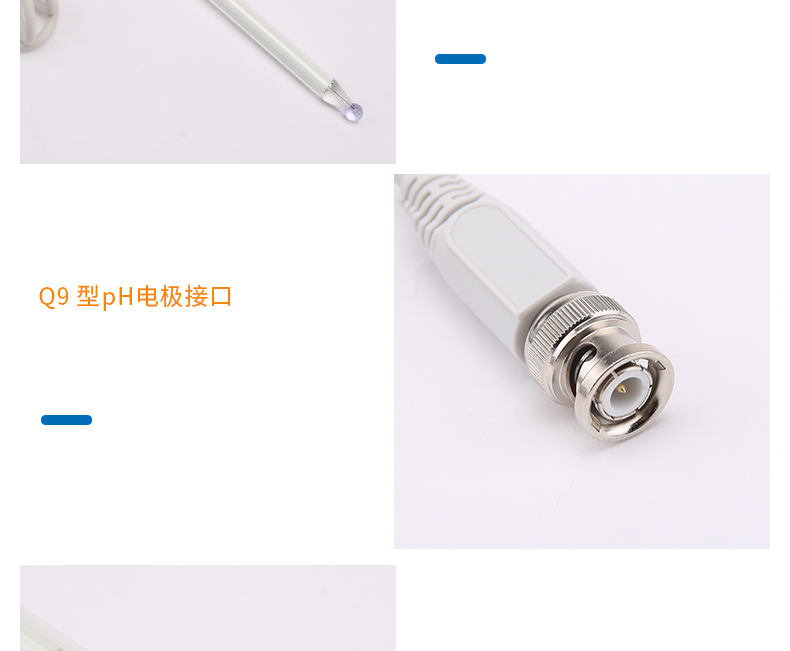

Thunder 231-01 pH glass electrode details Figure 5

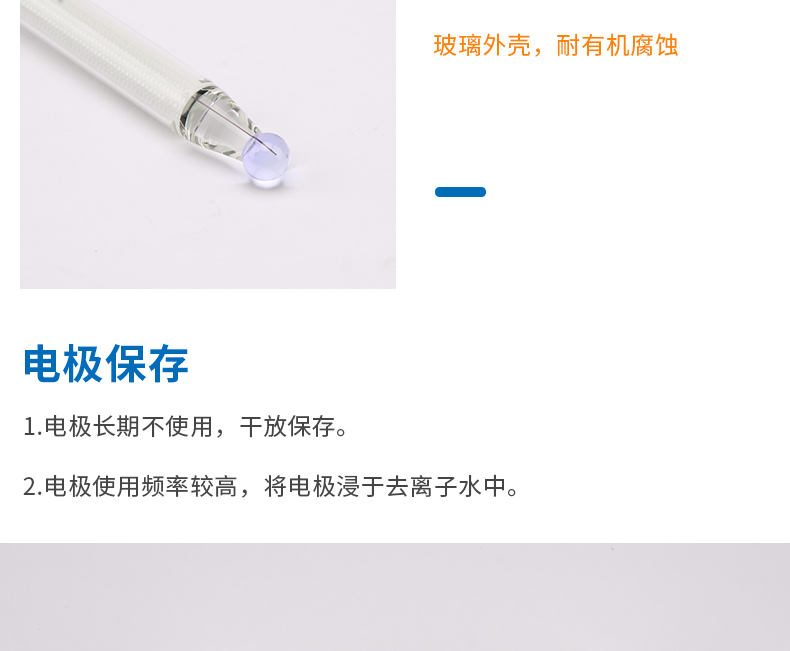

Thunder 231-01 pH glass electrode details Figure 6

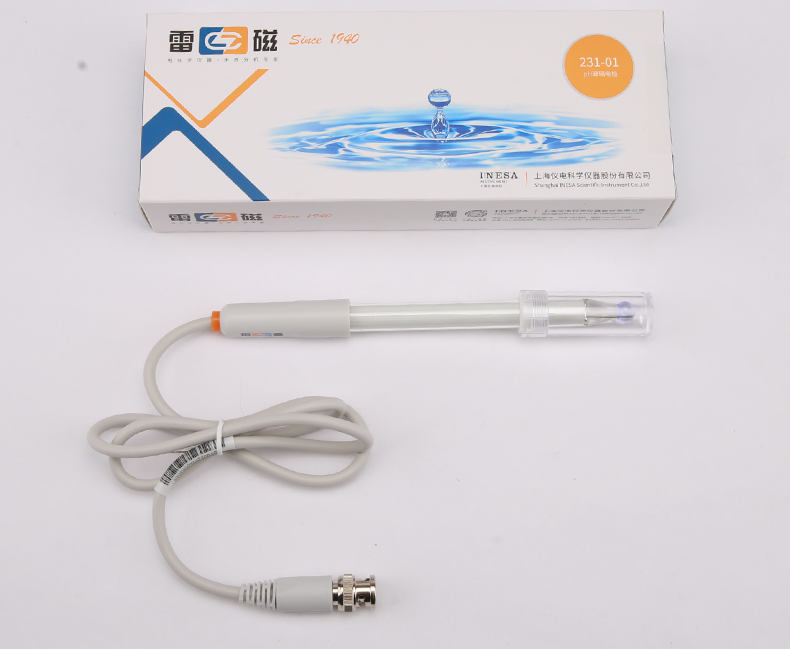

Thunder 231-01 pH glass electrode details Figure 7


Model NameSpecificationsProduct DescriptionElectrode plug
E-301-CF type pH triple composite electrode0-14pH、5-60℃Three-in-one conventional sample pH electrode, including waterproof insertWaterproof BNC (Q9 type & Q6 type)
E-301-D type pH triple composite electrode0-14pH、5-60℃Three-in-one conventional sample pH electrodeBNC (Q9 type & Q6 type)
E-301F type pH triple composite electrode0-14pH、5-60℃Three-in-one conventional sample pH electrodeBNC (Q9 type & Q6 type)
E-301G type pH triple composite electrode0-14pH、5-60℃Three-in-one pH electrode with removable protective feet, suitable for viscous samplesBNC (Q9 type & Q6 type)
E-201-L type pH composite electrode0-14pH、5-60℃2-in-1 conventional sample pH electrode, rechargeableBNC (Q9 type)
E-201D type pH composite electrode0-14pH、5-60℃2-in-1 conventional sample pH electrode, rechargeableBNC (Q9 type)
E-201-CF type pH composite electrode0-14pH、5-60℃2-in-1 conventional sample pH electrode, including waterproof insertBNC (Q9 waterproof type)
E-201F type pH rechargeable composite electrode0-14pH、5-60℃Two-in-one conventional sample pH electrodeBNC (Q9 type)
E-201G type pH rechargeable composite electrode0-14pH、5-60℃Two-in-one pH electrode with removable protective feet, suitable for viscous samplesBNC (Q9 type)
E-201-C type pH composite electrode0-14pH、5-60℃Two-in-one conventional sample pH electrodeBNC (Q9 type)
E-201 pH composite electrode0-14pH、5-60℃Two-in-one pH electrode, in addition to common measurement samples, is also suitable for the measurement of highly contaminated samplesBNC (Q9 type)
E-201-Z type conical pH composite electrode0-14pH、5-60℃Cone-shaped, with stainless steel protective cover, suitable for measuring special samples such as soil pHBNC (Q9 type)
E-201-P type planar pH composite electrode0-14pH、5-60℃Flat, suitable for measuring flat samplesBNC (Q9 type)
65-1C type pH composite electrode (glass bulb)0-14pH、5-60℃Two-in-one pH electrode, when measuring mixed samples and highly contaminated samples, the measurement waiting time may be extended or the measurement accuracy may be reduced.BNC (Q9 type)
Type 65-1 pH composite electrode (glass bulb)0-14pH、5-60℃Two-in-one pH electrode, when measuring mixed samples and highly contaminated samples, the measurement waiting time may be extended or the measurement accuracy may be reduced.Direct plug
Type 231 pH glass electrode0-14pH、5-60℃Indicating electrode, equipped with type 232 reference electrode, suitable for measuring low conductivity samples under closed static conditions.Direct plug ( Φ12 × 120 )
Type 231-01 pH glass electrode0-14pH、5-60℃Indicating electrode, equipped with type 232-01 reference electrode, suitable for measuring low conductivity samples under closed static conditions.BNC (Q9 type, Φ12×120)
E-205 Alkaline-resistant PH electrode0-14pH, 5-60℃Two-in-one alkali-resistant pH electrodeBNC (Q9 type)


FAQ
QIs this pH Glass electrode compliant with GB/T7790 standard?
A The pH Glass electrode is suitable for GB/T7790, please consult customer service for detailed application definition
