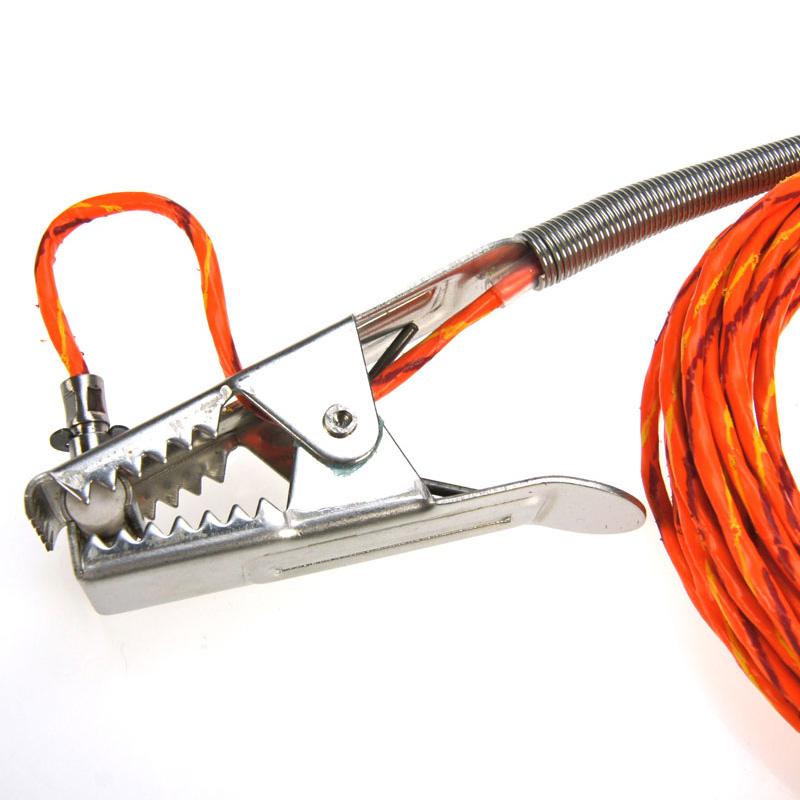

TQC CX2050 furnace temperature probe, maximum temperature: 300 ℃/570 ° F measurement use: workpiece surface
SE
CX2050
TQC sheen CX2050 Furnace temperature probeSPEC
TQC sheen CX2050 Furnace temperature probeDetails
TQC sheen CX2050 Furnace temperature probePacking list
- SKU
- NB000307
- Model
- CX2050 Clamp-on Workpiece Surface Probe
- Probe line length
- 150cm
- Probe line type
- Teflon
- Measurement purposes
- workpiece surface
- Probe type
- clip type
- maximum temperature
- 300℃/570℉
Specifications
| model: | CX2050 clip-on workpiece surface probe |
| Probe wire length cm: | 150 |
| Probe wire type: | Teflon |
| Measurement purposes: | Workpiece surface |
| Probe type: | clip-on |
| Maximum temperature: | 300℃/570â |
Probe type
All Curve-X2 temperature probes are specifically designed to ensure accurate readings:
ï¬ The probe has good
ï¬ Lightweight shape to avoid affecting temperature.
ï¬ Easy-to-clean Teflon sheath, flexible and strong metal wire.
Teflon probe lead
Standard probes are equipped with specific probe wires, and the appearance of the Teflon wire is easy to clean.
Magnetic surface probe
The temperature probe is adsorbed on the workpiece through strong magnetism and is small in size and light in weight. The sensor is insulated from the magnet to ensure that it does not affect the measured temperature. This probe is especially suitable for round workpiece surfaces, such as metal pipes and car bodies.
Air Teflon probe
Magnetic or clip-on probes available.
Teflon temperature probe diagram
| CX2020 | CX2069 | CX2030 |
 |  |  |
 |  |  |
| CX2050 | CX2065 | CX2063 |
Other Teflon probe types
Fixture surface Teflon probe
The small and beautiful temperature probe is suitable for any shape object, and the silver sensor port is thermally insulated by ceramic and the clip.
Annular Surface Teflon Probe
Universal probe with aluminum ring and fast temperature response at the clamp end.
Open contact temperature probe
The universal probe can be used to measure air or workpiece surface temperature. It is an exposed thermocouple that can be fixed by tape or other machinery.
Probe type list
| Order number | Probe wire length cm | Probe wire type | Measurement purposes | Probe type | maximum temperature |
| CX2020/21/22 | 150/300/500 | Teflon | Air | clip-on | 300℃/570â |
| CX2069/68 | 150/300 | Teflon | Air | magnetic | 300℃/570â |
| CX2030/40/41 | 150/300/500 | Teflon | Workpiece surface | clip-on | 300℃/570â |
| CX2050/60/62 | 150/300/500 | Teflon | Workpiece surface | magnetic | 300℃/570â |
| CX2065/66/72 | 150/300/500 | Teflon | Universal | Ring 6mm | 300℃/570â |
| CX2063/64/67 | 150/300/500 | Teflon | Universal | open contact | 300℃/570â |
| CX2055/56 | 150/300 | SS braided wire | Workpiece surface | magnetic | 480℃/900â |
| CX2048/49 | 150/300 | SS braided wire | Workpiece surface | clip-on | 480℃/900â |
| CX2085/86 | 150/300 | SS braided wire | Universal | Ring 6mm | 480℃/900â |
| CX2023/24 | 150/300 | SS braided wire | Air | clip-on | 480℃/900â |
| CX2090/91/92 | 150/300/500 | Inconel | Universal | Ring 6mm | 1000℃/1830â |
You can choose the appropriate length of probe according to your needs
