CHINA ASR-1021 Touch screen single column Tensile Strength Tester 100KG

Force range of 100kg, measurement accuracy +/- 1%, force units kgf, gf, N, kN, lbf, stress units MPa, kPa, kgf/cm2, lbf/in2, with upper and lower limit safety settings, test breakpoint sensing.
Certificate
Contact
Details SPEC VIDEO CAT OI

AISRY ASR-1021（100KG） Tensile Strength TesterSPEC

AISRY ASR-1021（100KG） Tensile Strength TesterDetails

AISRY ASR-1021（100KG） Tensile Strength TesterPacking list

SKU
NB030711
Capacity selection
100KG
Measurement Accuracy
±1%
force resolution
1/200000
Test speed range
0~300mm/min
effective travel
600mm
Test space
120mm
Force unit
kgf、gf、N、kN、lbf
stress unit
MPa、kPa、kgf/cm2、lbf/in2
shutdown mode
Upper and lower limit safety setting, specimen breakpoint sensing
result output
micro printer
Power system
speed regulating motor
optional configuration
Tension clamp (conventional)
Machine Weight
About 40kg
Power
1PH、AC220V、50/60Hz
ASR-1021（100KG）
Tensile Strength Tester
Force range of 100kg, measurement accuracy +/- 1%, force units kgf, gf, N, kN, lbf, stress units MPa, kPa, kgf/cm2, lbf/in2, with upper and lower limit safety settings, test breakpoint sensing.

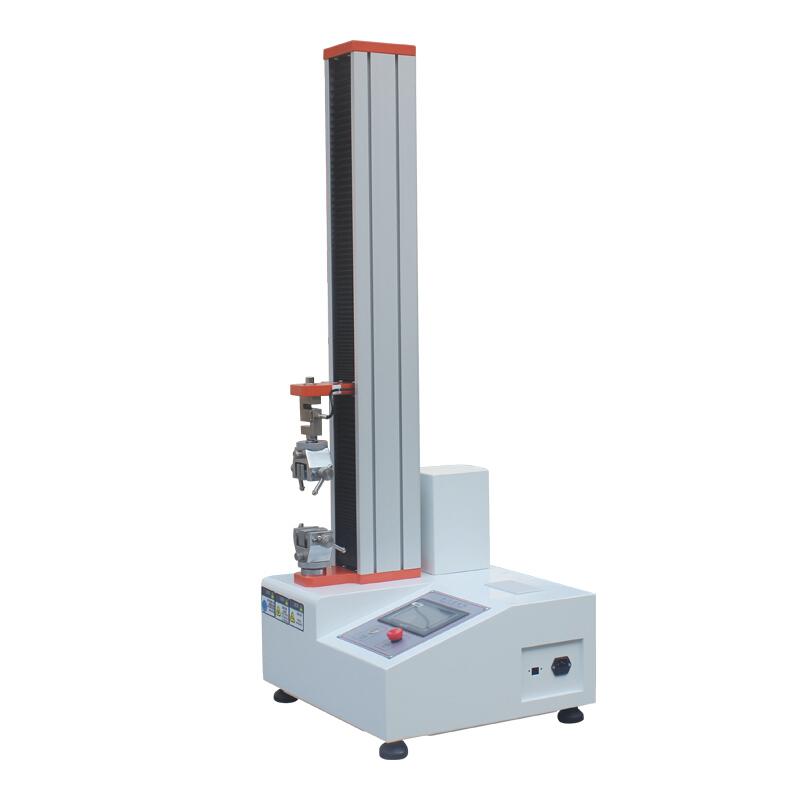

CHINA ASR-1021 Touch screen single column Tensile Strength Tester 100KG Picture

Applications

Suitable for tensile strength, peel strength, deformation rate, breaking force, peeling force of plastic film, composite film, adhesive, adhesive tape, medical patch, protective film, release paper, rubber, artificial leather, paper fiber, etc. , opening force and other performance tests.

Application

Tapes, automobiles, ceramics, composite materials, construction, food and medical equipment, metals, paper, packaging, rubber, textiles, wood, communications and various special-shaped materials


FAQ
QDoes the tensile testing device have 1000N?
A This one is it.
Standard
