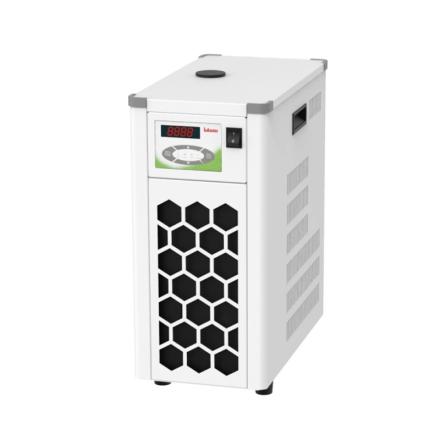

labtop icooler-2003 Low temperature chilled down liquid circulating machine Specifications
Search
Brand：labtop
Model：icooler-2003
Name：Low temperature chilled down liquid circulating machine
Specifications
| Temperature range | -20~RT°C |
| Temperature Fluctuation | ±0.3±K |
| Temperature display | LED |
| Temperature display Accuracy | 0.1℃ |
| Temperature control method | Smart PID |
| Temperature transducer | Pt100 |
| Heating power | / |
| Cooling Capacity (20 ℃) | 450W |
| Pump type | Pressure/Suction Pumps |
| Maximum pump pressure | 0.2bar |
| Maximum suction of pump | 0.1bar |
| Pump maximum flow | 12L/min |
| Pump connection interface | ID=8mm |
| Storage tank Volume | 4L |
| Dimensions | 220*420*495mm |
| Instrument fixing method | desktop |
| Allow continuous operation | 100% |
| Allowable environment temperature | 5~32℃ |
| Allowable Relative Humidity | 80% |
| Power | 220V/50Hz |
Packing list
After-sales instructions
Warranty days: 365 days
Non-artificially caused product quality problems, the manufacturer provides free warranty services during the warranty period
