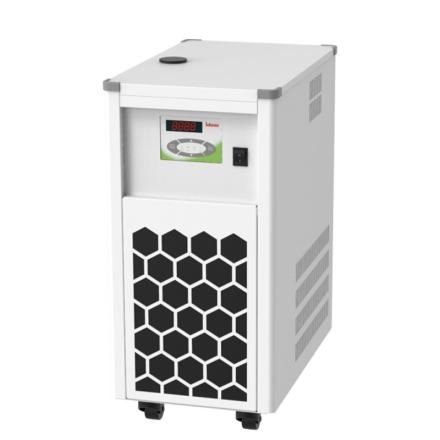

labtop iCooler-4009 Low temperature chilled down liquid circulating machine Specifications
Search
Brand：labtop
Model：iCooler-4009
Name：Low temperature chilled down liquid circulating machine
Specifications
| Temperature range | -40~RT°C |
| Temperature Fluctuation | ±0.5K |
| Temperature display | LED |
| Temperature display Accuracy | 0.1℃ |
| Temperature control method | Smart PID |
| Temperature transducer | Pt100 |
| Cooling Capacity (20 ℃) | 1500W |
| Maximum pump pressure | 1.0bar |
| Pump maximum flow | 22L/min |
| Pump connection interface | RC1/2mm (4-point inner teeth) interface, can be matched with various specifications of pipelines |
| Storage tank Volume | 9L |
| Dimensions | 300*500*620mm |
| Instrument fixing method | Floor type |
| Allow continuous operation | 100% |
| Allowable environment temperature | 5~32℃ |
| Allowable Relative Humidity | 80% |
Packing list
After-sales instructions
Warranty days: 365 days
Non-artificially caused product quality problems, the manufacturer provides free warranty services during the warranty period
[Note] For after-sales services outside the Chinese mainland, if the instrument requires repair, the shipping and possible associated taxes shall be borne by the sender. Generation address of the manual: http://en.nbchao.com/p/30748/Specification.html , which is only used by users who purchase commodities from the NBCHAO.
