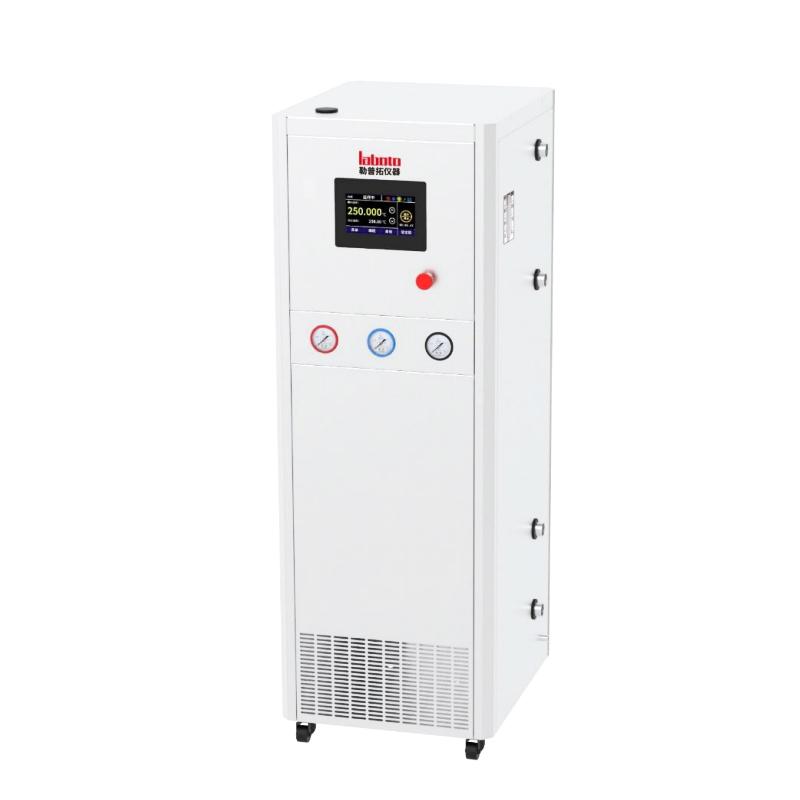

LABTOP DCC08 dynamic high-low temperature integrated thermostatic circulator

DCC08

Dynamic high-low temperature integrated machine

Dynamic high-low temperature all-in-one machine series, DCC series

The DCC series is a thermostatic circulator for the process, and the most significant features of this thermostatic circulator are the small size of the bath, and the large cooling power and heating power. Ideal for external temperature control required for microchannel reactors, reactors, small-scale production and bulk discussions. It provides a wide range of temperature control and a rapid response to temperature changes. The temperature of the external application can be precisely controlled by setting the heating and cooling speeds. The internal circulation pump makes the temperature control of the bath independent of the flow of external liquids. Constant temperature testing in the bath provides an economical solution. It can provide high-low temperature tests from -40 degrees to 320 degrees.

The optional external cycling adapter and external temperature sensor PT100 allow for external temperature control and cycling applications. It is suitable for temperature control, material testing, quality control, analysis, etc. of samples. Level protection and over-temperature protection in accordance with safety class III (FL) in the DIN12876 standard, and can be used with both non-flammable baths and flammable liquids.

Features

1. Professional control technology: CT technology and PID control technology are combined, and the high temperature is directly reducedThe compressor does not need to be shut down when the temperature is constant and the temperature control accuracy is high.

2. Medium-sized dynamic high-low temperature configuration control system, touch LCD screen, intuitive display, operationConvenient.

3. The control series can monitor the temperature, pressure and flow rate of the pipeline outlet in real time, and can be automatically adjusted.

4. The overall output temperature and output flow are used to meet a variety of test needs.

5. The system is stable and reliable: high-performance and high-quality spare parts, stable quality and performanceDepend on.

6. Multiple safety protections: water shortage protection, temperature protection, water pressure protection, overheating and overcurrentProtection, light and sound can be reminded at the same time when alarming.

7. Intelligent control function: a variety of interfaces (RS485, RS232) can be selected, and it can be remote.

8. Control of start/stop of circulating water pump and refrigeration system (optional).

Applications

• Process temperature control

• Reactor temperature control, medium-sized reactor system temperature control

• Temperature control of reactors in the fields of chemical industry and biotechnology

• Performance testing of high-low temperature alternating materials

• Various thermal test platforms: Medium-sized power dynamic high-low temperature all-in-one machine can be used for automobile startingMachine test bench, new energy vehicle motor test bench, can also be used for synchronous motors,Performance testing of asynchronous motors, reluctance motors and various matching controllers, industrial furnacesthermal performance testing, etc

DDC series models

Packing list：

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
