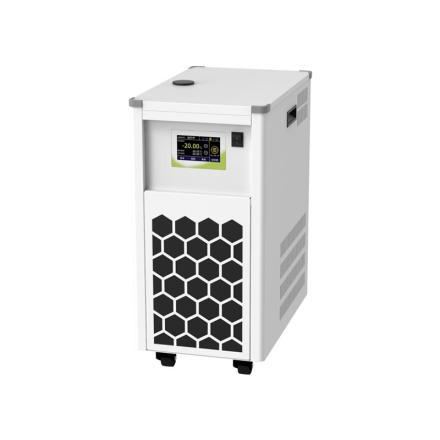

labtop iCooler-2006+ External circulation high-low temperature thermostatic circulator Specifications
Search
Brand：labtop
Model：iCooler-2006+
Name：External circulation high-low temperature thermostatic circulator
Specifications
| Instrument type | Chilled down liquid circulation device |
| Protection level | I/NFL |
| Protection level | IP20 |
| Temperature range | -20~100℃ |
| Temperature Fluctuation | 0.05K |
| Temperature Display mode | TFT |
| Temperature Control mode | Smart PID |
| Temperature sensor | Pt100 |
| Temperature sensor | without |
| Heating power | 1500W |
| refrigerant | R404a |
| Cooling Capacity 10 ℃ | 700W |
| Pump type | Pressure/suction pump |
| Pump adjustability | without |
| Maximum pump pressure | 0.3bar |
| Maximum suction of pump | 0.2bar |
| Flow rate of pump | 22L/min |
| Pump connection interface | ID=8 |
| Tank Volume | 4.5L |
| Dimensions | 220*420*495mm |
| Temperature Resolution | 0.01℃ |
| Light alarm | Yes. |
| audible alarm | Yes. |
| Temperature overrun alarm | Yes. |
| The temperature is not enough alarm | without |
| secondary protection | without |
| Low level protection | without |
| Calibrating options | Yes. |
| Allow continuous operation | 100% |
| Environmental temperature | 5~32℃ |
| Allowable Relative Humidity | 80% |
| RS232 interface | optional |
| USB port | optional |
| Power supply Voltage | 200~230VAC/50Hz |
| Instrument noise | ≤55db |
| Technical parameter standard | DIN 12876 |
Packing list
After-sales instructions
Warranty days: 365 days
[Note] For after-sales services outside the Chinese mainland, if the instrument requires repair, the shipping and possible associated taxes shall be borne by the sender. Generation address of the manual: http://en.nbchao.com/p/30831/Specification.html , which is only used by users who purchase commodities from the NBCHAO.
