LABTOP iMCoolero-204 Input Cooler

Certificate

labtop iMCooler-204 input refrigeratorSPEC

labtop iMCooler-204 input refrigeratorDetails

labtop iMCooler-204 input refrigeratorPacking list

SKU
NB030887
Instrument type
input refrigerator
Protection level
I/NFL
Protection level
IP20
Temperature range
-20~40℃
Temperature Fluctuation
±0.5K
Temperature Display mode
LED
Temperature Control mode
Intelligent PID control
Temperature sensor
Pt100
refrigerant
R12
Cooling Capacity 10 ℃
350W
Dimensions
235*270*380mm
Temperature Resolution
0.1℃
Light alarm
Yes
audible alarm
Yes
Calibrating options
Yes
Allow continuous operation
100%
Environmental temperature
5~32℃
Allowable Relative Humidity
80%
Weight
17kg
Power supply Voltage
200~230VAC/50Hz
Instrument noise
≤55db
Technical parameter standard
DIN 12876
iMCooler-204
input refrigerator

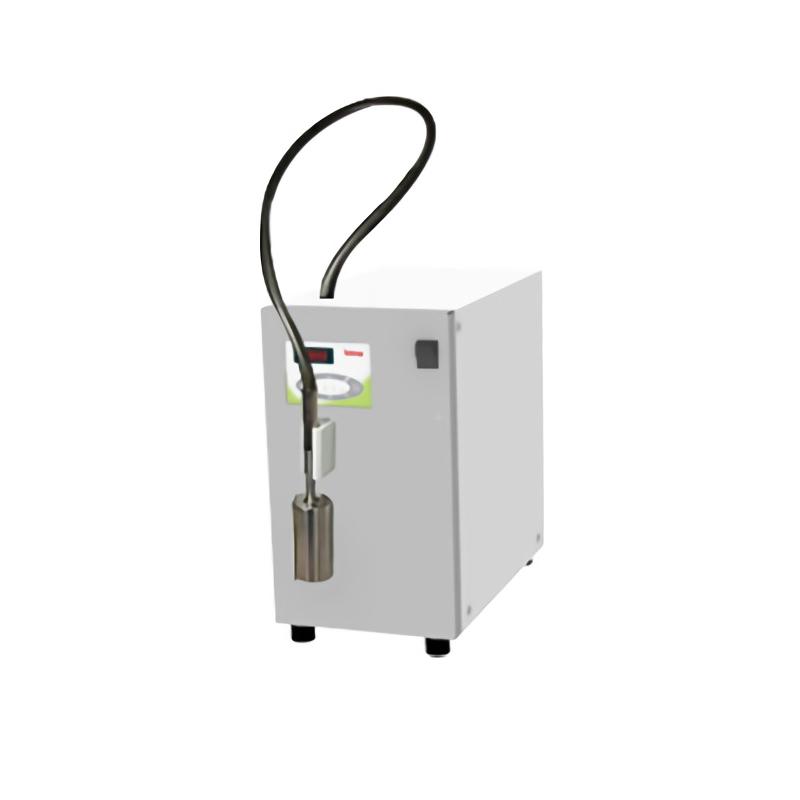

LABTOP iMCoolero-204 Input Cooler Picture

Description

The iMCooler202 is a submersible cooler, which is cooled by a compressor and directly exchanged heat with the liquid medium through the evaporator, so that the temperature of the liquid medium is reduced. At the same time, the temperature controller is used for temperature control, with constant temperature and cooling functions, and the minimum temperature is -20°C.

The submersible cooler is an excellent choice for continuous refrigeration, which can quickly cool the liquid to low temperature or ultra-low temperature, and can replace dry ice for ultra-low temperature experiments. In conjunction with a heating circulator, the system temperature can be lowered to work below room temperature.

Features

  • The laboratory replaces ice salt, dry ice, and liquid nitrogen for low-temperature tests, and the low temperature reaches -20 °C;

  • It is very convenient to use with the open heating circulator, and the temperature of the bath liquid reaches room temperature or below to achieve rapid cooling;

  • Simple operation;

  • Small size, light weight, can be easily placed on the desktop;

  • Temperature alarm function;

  • When the alarm is raised, the light and sound are reminded at the same time;

  • Temperature calibration function;

  • The key components of the refrigeration system, such as compressors and circulating fans, are imported products.

Comparable models

ModelTemperature rangeTemperature FluctuationCoil sizeHose lengthDimensions
[℃][℃][mm][mm](WxDxH) [mm]
iMCooler-204-20...40±0.5φ40×901200232x420x410
iMCooler-402-40...40±0.5φ50×1201200232x420x410
iMCooler-805-80...40±1.0φ12.5×6501600355x455x865


FAQ
QCan all input refrigerators be used for testing in the GB/T 26808 standard?
A Not necessarily, but this iMCoolerance-204 input cooler can be considered.
QWhat is the low temperature limit of this iMCoolero-204 input cooler?
A LABTOP iMCoolero-204 meets a Temperature range of -20 to 40 ° C with a minimum temperature of -20 ° C.
