TQC CX2065 rapid temperature probe, maximum temperature: 300 ℃/570 ° F measurement use: workpiece surface/air
SE
CX2065
TQC sheen CX2065 Furnace temperature probeSPEC
TQC sheen CX2065 Furnace temperature probeDetails
TQC sheen CX2065 Furnace temperature probePacking list
- SKU
- NB000309
- Model
- CX2065 Universal Fast Temperature Probe
- Probe line length
- 150cm
- Probe line type
- Teflon
- Measurement purposes
- Workpiece surface/air
- Probe type
- Ring 6mm
- maximum temperature
- 300℃/570℉
Specifications
| model: | CX2065 universal fast temperature probe |
| Probe wire length cm: | 150 |
| Probe wire type: | Teflon |
| Measurement purposes: | Workpiece surface/air |
| Probe type: | Ring 6mm |
| Maximum temperature: | 300℃/570â |

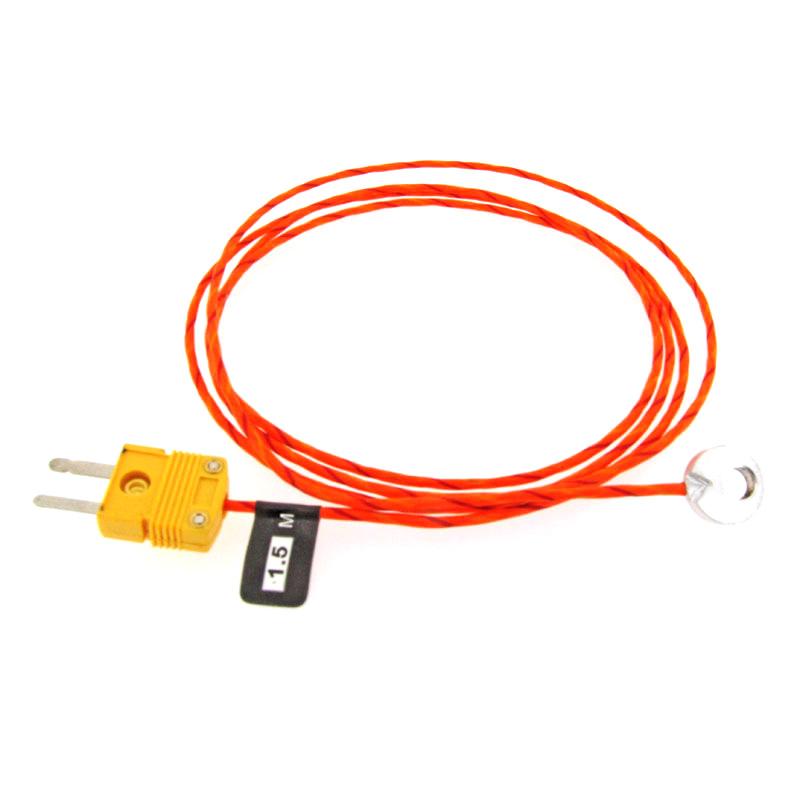

The CX2065 universal fast temperature probe is a circular ring design and can measure the temperature of the workpiece surface or the air.
Ring surface temperature probe
Universal probe with aluminum ring and fast temperature response at the clamp end.
Advantages of temperature probes
All Curve-X2 probes are specifically designed to ensure accurate readings:
ï¬ The probe has good contact with the work surface.
ï¬ Lightweight shape to avoid affecting temperature.
ï¬ Easy-to-clean Teflon sheath, flexible and strong metal wire.
Other temperature probe types
Magnetic surface temperature probe
The probe is adsorbed on the workpiece through strong magnetism and is small in size and light in weight. The sensor is insulated from the magnet to ensure that it does not affect the measured temperature. This probe is especially suitable for round workpiece surfaces, such as metal pipes and car bodies.
Fixture surface probe
The small and beautiful probe fits any shape object, and the silver sensor port is thermally insulated from the clip by ceramic.
Ring surface temperature probe
Universal probe with aluminum ring and fast temperature response at the clamp end.
Teflon temperature probe diagram
| CX2020 | CX2069 | CX2030 |
 |  |  |
 |  |  |
| CX2050 | CX2065 | CX2063 |
Temperature probe type list
| Order number | Probe wire length cm | Probe wire type | Measurement purposes | Probe type | maximum temperature |
| CX2020/21/22 | 150/300/500 | Teflon | Air | clip-on | 300℃/570â |
| CX2069/68 | 150/300 | Teflon | Air | magnetic | 300℃/570â |
| CX2030/40/41 | 150/300/500 | Teflon | Workpiece surface | clip-on | 300℃/570â |
| CX2050/60/62 | 150/300/500 | Teflon | Workpiece surface | magnetic | 300℃/570â |
| CX2065/66/72 | 150/300/500 | Teflon | Universal | Ring 6mm | 300℃/570â |
| CX2063/64/67 | 150/300/500 | Teflon | Universal | open contact | 300℃/570â |
| CX2055/56 | 150/300 | SS braided wire | Workpiece surface | magnetic | 480℃/900â |
| CX2048/49 | 150/300 | SS braided wire | Workpiece surface | clip-on | 480℃/900â |
| CX2085/86 | 150/300 | SS braided wire | Universal | Ring 6mm | 480℃/900â |
| CX2023/24 | 150/300 | SS braided wire | Air | clip-on | 480℃/900â |
| CX2090/91/92 | 150/300/500 | Inconel | Universal | Ring 6mm | 1000℃/1830â |
You can choose the appropriate length of probe according to your needs
