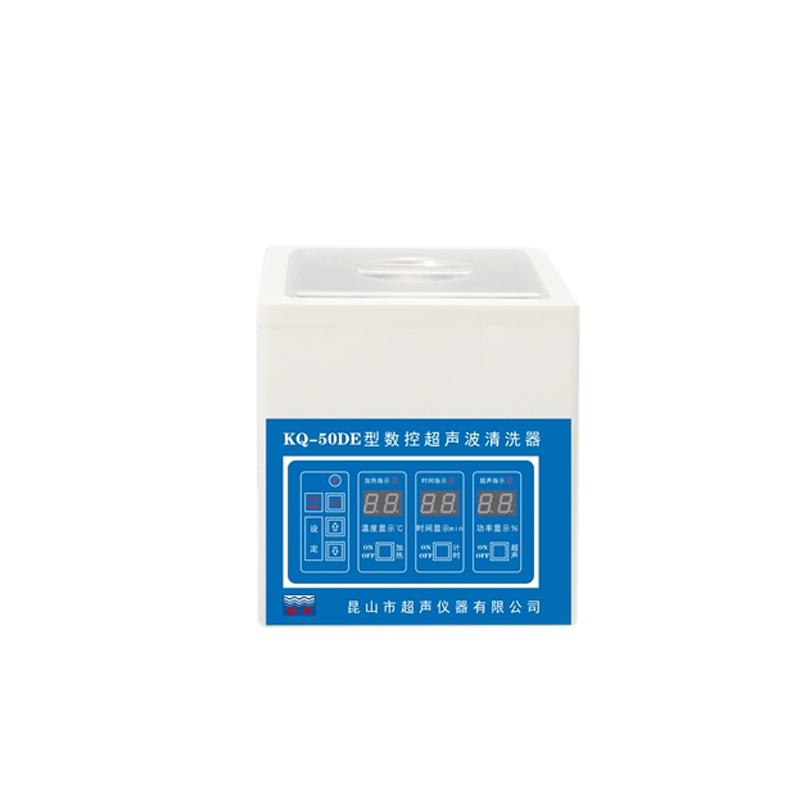

KUNSHAN SHUMEI KQ-50DE numerical control ultrasonic cleaner 2L

SHUMEI KQ-50DE numerical control ultrasonic cleaner is an experimental ultrasonic cleaner with a capacity of 2L, an inner slot size of 150 * 140 * 100mm, an ultrasonic Power 50W, an adjustable range of 40-99% of the ultrasonic Power, and a standard ultrasonic Frequency of 40KHz.

Model：

KQ-50DE

Certificate

shumei

Manufacturer authorization

Contact

Details SPEC

shumei KQ-50DE Numerical control ultrasonic cleanerSPEC

shumei KQ-50DE Numerical control ultrasonic cleanerDetails

shumei KQ-50DE Numerical control ultrasonic cleanerPacking list

SKU: NB030936

Dimensions: 208*192*225mm

Inner slot size: 150*140*100mm

Capacity: 2L

Ultrasonic Frequency: 40KHz

Ultrasonic Power: 50W

Ultrasonic Power Adjustable Range: 40~99%

Heating power: 100W

Temperature setting range: RT+~80℃

Timer Range: 1~99min

Miscellaneous configuration: Clean basket, flat cover, 220V/50Hz Power Supply

KQ-50DE

Numerical control ultrasonic cleaner

Shumei desktop CNC Suzhou ultrasonic cleaning machine, circuit and device upgrade matching, simple operation, accurate and clear display; The circuit automatic frequency sweeping technology is adopted, so that the working electrical power conversion of the cleaning machine is high, and the reactive power loss is low, which greatly improves the cleanliness of cleaning and can meet the needs of ultrasonic cleaning in laboratories in various industries.

Features

Frequency: The ultrasonic frequency of all products can be optionally replaced.
Material：The main body of the cleaner is made of 304 good stainless steel.
operate：Mechanical and single-chip microcomputer software control, easy to operate, clear display.
protection：The digital display product has over-temperature, over-current, over-Voltage, low water level, and no solution protection; Ultrasonic circuit boards (ultrasonic generators) are protected against overVoltage and current.
Show memory：Digital display products have basic data (temperature, power, frequency (multi-frequency products), time) setting, display and memory.
Special models：The desktop product model ends with "V", and the floor product ends with "E" series cleaners with good sealing, and has sound reduction and heat insulation effects.
Components：The cleaner circuit and device are fully upgraded and matched, with higher electrical power conversion and lower power consumption.
circuit：The washer circuit has an automatic frequency sweep function, which generates a continuous pulse jet, which makes the cleaning effect more obvious and the ultrasonic work more stable.
Operational features：The cleaner can be used for ultrasonic cleaning, emulsification, mixing, extraction, replacement, degassing, defoaming, crushing, catalytic reaction, dissolution, etc.

Serial models

Model	Instrument size	Cleaning tank dimensions	Capacity L	Ultrasonic power W	Adjustable % power	Heating power W	The temperature is adjustable °C	The time can be adjusted min	Grids	Sound Falling Cap	drain
KQ~50DA	208×192×225	150×140×100	2	50	40~99	not	not	1~99	Yes	not	not
KQ~50DB	208×192×225	150×140×100	2	50	40~99	100	RT+~~80	1~99	Yes	not	not
KQ~50DE	208×192×225	150×140×100	2	50	40~99	100	RT+~~80	1~99	Yes	Yes	not
KQ2200DA	260×160×270	230×140×100	3	100	40~99	not	not	1~99	Yes	not	Yes
KQ2200DB	260×160×270	230×140×100	3	100	40~99	400	RT+~~80	1~99	Yes	not	Yes
KQ2200DE	260×160×285	230×140×100	3	100	40~99	400	RT+~~80	1~99	Yes	Yes	Yes
KQ2200DV	350×245×330	230×140×130	4	100	40~100	400	RT+~~80	1~480	Yes	Yes	Yes
KQ~100DA	320×174×270	300×150×100	4	100	40~100	not	not	1~480	Yes	not	Yes
KQ~100DB	320×174×270	300×150×100	4	100	40~100	400	RT+~~80	1~480	Yes	not	Yes
KQ~100DE	320×174×285	300×150×100	4	100	40~100	400	RT+~~80	1~480	Yes	Yes	Yes
KQ~100DV	410×260×330	300×150×130	5.8	100	40~100	400	RT+~~80	1~480	Yes	Yes	Yes
KQ3200DA	320×174×334	300×150×150	6	150	40~100	not	not	1~480	Yes	not	Yes
KQ3200DB	320×174×334	300×150×150	6	150	40~100	400	RT+~~80	1~480	Yes	not	Yes
KQ3200DE	320×174×350	300×150×150	6	150	40~100	400	RT+~~80	1~480	Yes	Yes	Yes
KQ3200DV	410×260×380	300×150×180	8	150	40~100	400	RT+~~80	1~480	Yes	Yes	Yes
KQ5200DA	320×264×320	300×240×150	10	200	40~100	not	not	1~480	Yes	not	Yes
KQ5200DB	320×264×330	300×240×150	10	200	40~100	400	RT+~~80	1~480	Yes	not	Yes
KQ5200DE	320×264×345	300×240×150	10	200	40~100	400	RT+~~80	1~480	Yes	Yes	Yes
KQ5200DV	435×398×400	300×240×180	13	200	40~100	400	RT+~~80	1~480	Yes	Yes	Yes
KQ~250DA	320×264×330	300×240×150	10	250	40~100	not	not	1~480	Yes	not	Yes
KQ~250DB	320×264×330	300×240×150	10	250	40~100	400	RT+~~80	1~480	Yes	not	Yes
KQ~250DE	320×264×345	300×240×150	10	250	40~100	400	RT+~~80	1~480	Yes	Yes	Yes
KQ~250DV	435×398×400	300×240×180	13	250	40~100	400	RT+~~80	1~480	Yes	Yes	Yes
KQ~300DA	320×264×330	300×240×150	10	300	40~100	not	not	1~480	Yes	not	Yes
KQ~300DB	320×264×330	300×240×150	10	300	40~100	400	RT+~~80	1~480	Yes	not	Yes
KQ~300DE	320×264×345	300×240×150	10	300	40~100	400	RT+~~80	1~480	Yes	Yes	Yes
KQ~300DV	435×398×400	300×240×180	13	300	40~100	400	RT+~~80	1~480	Yes	Yes	Yes
KQ~400DB	353×325×380	330×300×150	15	400	40~100	800	RT+~~80	1~480	Yes	not	Yes
KQ~400DE	353×325×400	330×300×150	15	400	40~100	800	RT+~~80	1~480	Yes	Yes	Yes
KQ~500DA	530×320×365	500×300×150	22.5	500	40~100	not	not	1~480	Yes	not	Yes
KQ~500DB	530×320×365	500×300×150	22.5	500	40~100	800	RT+~~80	1~480	Yes	not	Yes
KQ~500DE	530×320×380	500×300×150	22.5	500	40~100	800	RT+~~80	1~480	Yes	Yes	Yes
KQ~500DV	638×460×395	500×300×180	27	500	40~100	800	RT+~~80	1~480	Yes	Yes	Yes
KQ~600DA	530×320×365	500×300×150	22.5	600	40~100	not	not	1~480	Yes	not	Yes
KQ~600DB	530×320×365	500×300×150	22.5	600	40~100	800	RT+~~80	1~480	Yes	not	Yes
KQ~600DE	530×320×380	500×300×150	22.5	600	40~100	800	RT+~~80	1~480	Yes	not	Yes
KQ~600DV	638×460×395	500×300×180	27	600	40~100	800	RT+~~80	1~480	Yes	Yes	Yes
KQ~700DA	530×320×365	500×300×150	22.5	700	40~100	not	not	1~480	Yes	not	Yes
KQ~700DB	530×320×365	500×300×150	22.5	700	40~100	800	RT+~~80	1~480	Yes	not	Yes
KQ~700DE	530×320×380	500×300×150	22.5	700	40~100	800	RT+~~80	1~480	Yes	Yes	Yes
KQ~700DV	638×460×395	500×300×180	27	700	40~100	800	RT+~~80	1~480	Yes	Yes	Yes
KQ~800DB	530×325×430	500×300×200	30	800	40~100	800	RT+~~80	1~480	Yes	not	Yes
KQ~800DE	530×325×450	500×300×200	30	800	40~100	800	RT+~~80	1~480	Yes	Yes	Yes

FAQ

QIs the price listed on the website the final cost for overseas purchases?

ANo, it isn't. This is the ex-factory price of the product in the Chinese Mainland. In addition to this price, buyers from different countries need to account for additional costs such as shipping fees, tariffs, and others. For specific regional quotes, please consult our customer service or fill out a quotation form.

QWhat is the specific process for purchasing the product?

AFirst, please click on the quotation form on the website and fill in detailed information. Our customer service personnel will then send you a quotation based on your specific country and region, confirming payment and delivery methods. Following this, we proceed with contract signing, payment, and shipment. You can then await delivery.

QWhat should I do if the instrument I purchase needs repair?

AAfter-sales repair for overseas instruments is an unavoidable issue. Our repair terms stipulate that the sender is responsible for the shipping and insurance costs incurred for the repair. Repairs within the warranty period are free, while repair costs beyond the warranty period are determined based on the actual situation.
