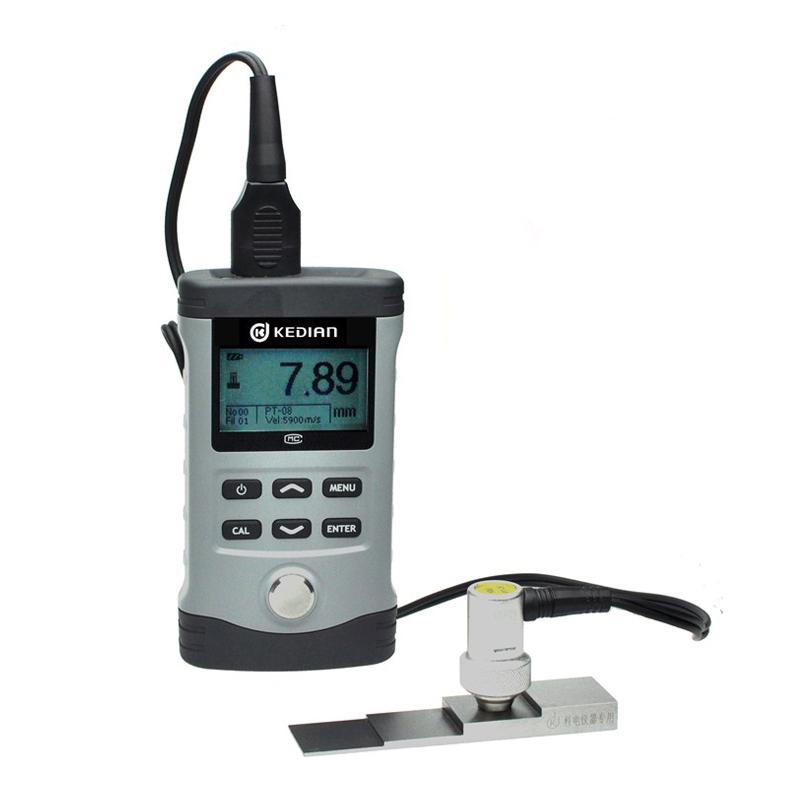

HCH-3000C + Ultrasonic Thickness Gauge for metal, plastic, ceramics, etc
HCH-3000C+
-
Ultrasonic Film thickness Measurement Instrument DC-2020C Deguang Electronics, Film thickness measurement of metal, plate, pipeline, etc$ 1053.00SE -
Ultrasonic Thickness Gauge DC-4000, automatic and manual measurement$ 2172.00SE -
Metal Ultrasonic Film thickness meter DC-3020C Deguang Electronic Glass, steel pipe and other Film thickness measurement$ 1551.00SE -
Steel plate Ultrasonic Thickness Gauge DC-3000C, penetration coating measurement material Film thickness$ 1302.00SE -
Ultrasonic wall Thickness Gauge DC-2030C Deguang electronic measurement of cast iron and other Film thickness$ 929.00SE
KODIN HCH-3000C+ Ultrasonic Thickness GaugeSPEC
KODIN HCH-3000C+ Ultrasonic Thickness GaugeDetails
KODIN HCH-3000C+ Ultrasonic Thickness GaugePacking list
- SKU
- NB003097
- Measurement range
- 0.7~360mm
- Probe Frequency
- 5MHz
- Probe style
- Split probe
- Probe diameter
- Φ8mm
- Measurement error
- (H is the measured thickness value): H < 10mm +/- 0.1mm; H ≥ 10mm +/- (0.1 + H/100)
- Display resolution
- 0.01mm
- unit system
- mm
- Calibration method
- Speed of sound calibrated (reverse measurement Speed of sound) or single point calibrated
- Storage Capacity
- 600 Measured values
- Speed of sound
- 1000~9990m/s
- Display
- LCD display with backlight
- Operating language
- Chinese
- Interface
- serial output port
- Application Software
- none
- Environmental temperature
- -10~60℃
- Working Relative Humidity
- <90%RH
- Power Supply
- 2 * 5 battery
- Operating Time
- 200h
- Host size
- 146*81*30mm
- Weight
- 300g
- Application
- Thickness measurement of metal, plastic, ceramic, Glass and Miscellaneous good conductors of any ultrasonic wave
- Data storage method
- manual storage
- shutdown mode
- Standby for five minutes will automatically shut down
- keyboard
- 6-Key dustproof, oil-proof keyboard
- Coupled status display
- When the tested piece is well coupled with the probe, the icon in the upper left corner shows
- Optional probe
- High temperature probe (below 550 degrees), cast iron probe, small diameter probe
Introduction of HCH-3000C+ ultrasonic Thickness Gauge
Kedian HCH-3000C+ ultrasonic Thickness Gauge is a collection of contemporary science and technology electronic technology and measurement technology in one, professional non-destructive testing instrument, suitable for measuring the thickness of metal, plastic, ceramic, glass and any other ultrasonic conductor, widely used in petroleum, chemical, metallurgy, shipbuilding, aviation, aerospace and other fields;
The new HCH-3 series Thickness Gauges have many more features than the HCH-2 series Thickness Gauges, such as automatic gain adjustment, limit alarms, data transmission, and more.
Functional characteristics of ultrasonic Thickness Gauge
● Automatic identification of standard probes, or manual probes.
● The resolution is 0.01 mm
● It has the function of sound velocity calibration (reverse sound velocity measurement) or single point calibration
● The upper/lower limit of thickness measurement can be set with alarm function
● Up to 600 readings can be stored in groups.
● The data output can be printed through the serial output port

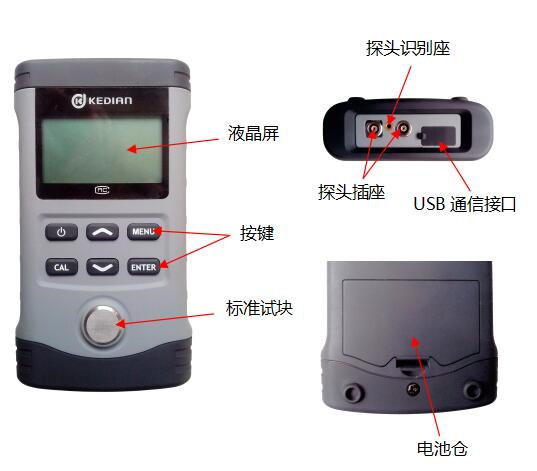

Functional structure diagram

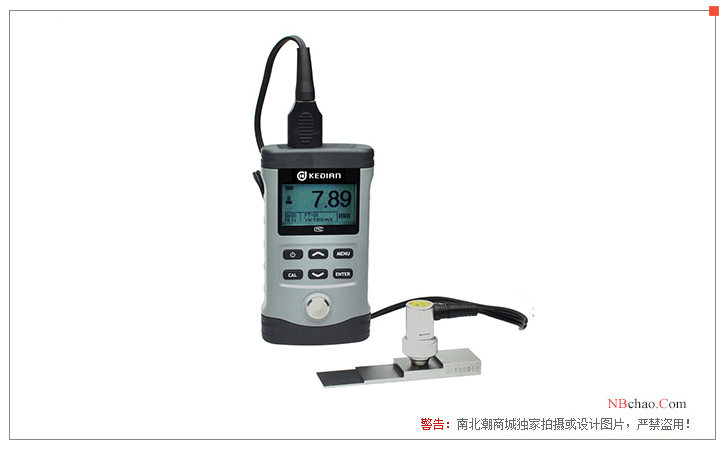

Product display diagram
